CNC Machining Meaning: The Definitive Guide to Computer Numerical Control Technology

Section 1: Understanding CNC Machining Fundamentals

1.1 What is CNC Machining? (Technical Definition)

CNC (Computer Numerical Control) machining refers to subtractive manufacturing processes where pre-programmed computer software dictates the movement of factory tools and machinery. This technology enables:

Precision: Achieves tolerances up to ±0.0001″ (2.5μm)
Repeatability: Maintains consistency across 10,000+ parts
Complexity: Creates geometries impossible with manual machining

1.2 Core Components Breakdown

A typical CNC system at Jlypt includes:

Control Unit: Industrial PC running G-code/M-code
Drive System: Servo motors with 0.0001° resolution

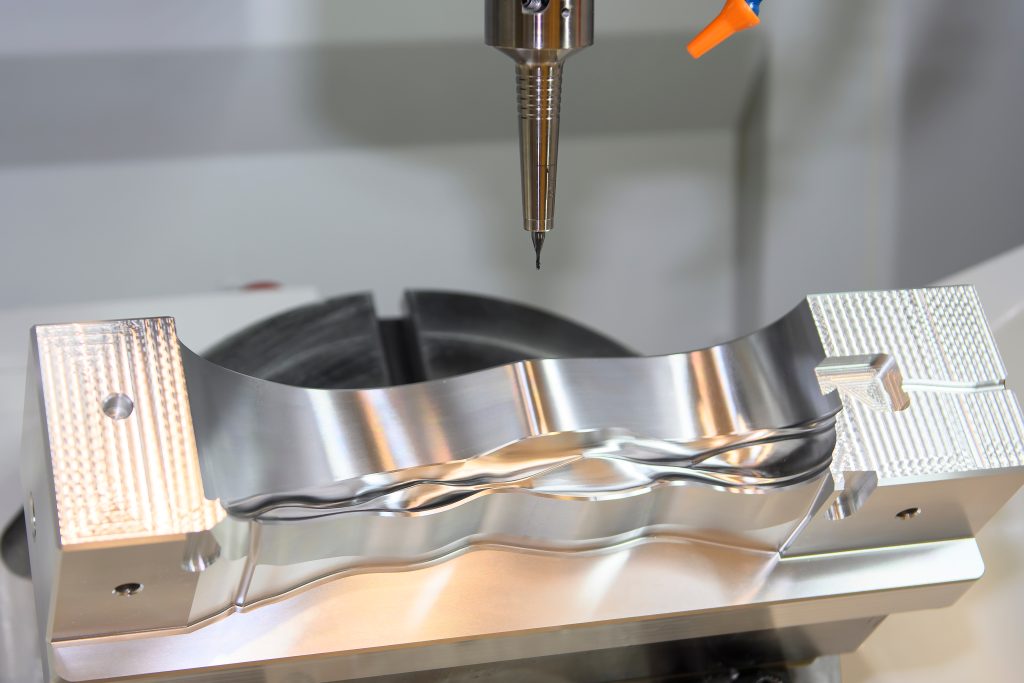

Machine Tool: 3-5 axis milling/turning centers
Feedback System: Glass scale encoders (0.1μm resolution)

Section 2: Industry Applications & Case Studies

2.1 Aerospace Implementation

Case: Boeing 787 Wing Spar Manufacturing

Challenge: 28m aluminum spar with 0.002″ profile tolerance
Jlypt Solution:
- Custom 5-axis gantry mill with thermal compensation
- Reduced machining time by 37% vs traditional methods
Result: 42% weight reduction while maintaining strength

2.2 Medical Device Production

Case: Titanium Spinal Implants

Requirements:
- 50,000 implants/year with Ra 0.8μm finish
- FDA-compliant traceability
Our Approach:
- Swiss-type CNC lathes with live tooling
- Integrated CMM verification every 10 parts
Outcome: Zero defect shipment for 3 consecutive years
