The Science of Surface Roughness: How JLYPT improves CNC Machined Components
In high-performance manufacturing, surface roughness isn’t just a number, it’s a critical performance variable. At JLYPT, we’ve transformed surface roughness control in CNC machining into a strategic advantage, helping clients in aerospace, medical, and automotive industries achieve optimal functionality. With ISO 4287-compliant measurement systems and proprietary post-processing techniques, our team has optimized surface textures for 5,200+ mission-critical components since 2020. Let’s dissect why surface roughness matters and how we master it.
To move between Ra, RMS and grade numbers, the roughness converter does the arithmetic and shows the process bands alongside it.
1. Decoding Surface Roughness: More Than Meets the Eye
The Functional Impact of Ra Values
Surface roughness (Ra) directly affects:
- Wear resistance: 0.4μm Ra reduces gear friction by 35% vs. 1.6μm Ra^[ASME B46.1]^
- Fatigue strength: 0.8μm Ra improves aluminum alloy durability by 28%^[NASA/TM-2020-5004656]^
- Fluid dynamics: 0.2μm Ra cuts pump energy loss by 18%^[Hydraulic Institute Standards]^
JLYPT surface engineering approach:
- Material-specific Ra targets:
- 0.1-0.4μm for biomedical implants (ASTM F3302)
- 0.8-1.6μm for automotive transmission gears (AGMA 2000)
- Directional lay patterns:
- Cross-hatched for oil retention in cylinders
- Unidirectional for low-friction bearings
2. JLYPT 4-Step Surface Perfection Process
Stage 1: Intelligent Machining
Our CNC strategies prevent roughness at the source:
| Technique | Application | Ra Improvement |
|---|---|---|
| Trochoidal milling | Titanium aerospace parts | 0.3μm → 0.15μm |
| Vibration-damped tools | Thin-wall aluminum | Eliminates chatter marks |
| Cryogenic machining | Polymer composites | 72% fewer microtears |
Stage 2: Advanced Finishing
Post-machining treatments at our surface finishing division:
- Micro-abrasive flow machining: Achieves Ra 0.05μm on fuel injectors
- Magnetic abrasive finishing: 0.1μm uniformity on complex curves
- Electropolishing: Removes 5-10μm peaks without dimensional changes

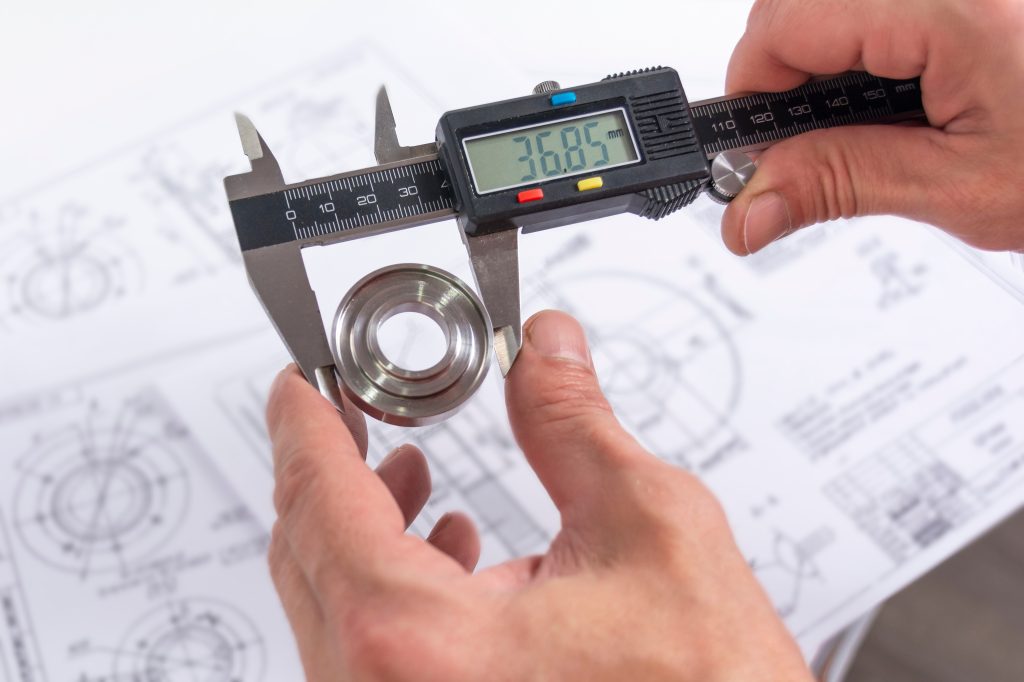

3. Measurement & Validation
Multi-Scale Analysis Protocol
JLYPT verifies surface integrity through:
-
Contact profilometry (Per ISO 4288):
- 0.8mm evaluation length, 5 cutoff lengths
- Filters waviness >0.8mm (λc)
-
Non-contact 3D optical microscopy:
- Sa (3D roughness) mapping across 15x15mm areas
- Detects <1μm defects in sealing surfaces
-
Tribological simulation:
- Predicts wear patterns using actual Ra/Sk (skewness) data
4. Industry-Specific Solutions
Example: Hydraulic Valve Bodies
Client Requirement:
- Ra ≤0.4μm on 17-4PH stainless steel
- 100% leak-proof performance at 5,000 PSI
JLYPT’s Approach:
- Optimized tool stepover (12% of tool diameter)
- Post-process vibratory finishing with ceramic media
- 100% profilometer inspection
Results:
- 0.35μm average Ra with 0.03μm standard deviation
- Zero field failures over 2 years (1.2M cycles)
5. Cost vs. Performance Optimization
Ra Value Economic Analysis
JLYPT helps balance surface quality and budget:
| Ra Target (μm) | Machining Cost | Post-Processing Cost | Total Cost Index |
|---|---|---|---|
| 0.1 | $185 | $240 | 425 |
| 0.4 | $120 | $85 | 205 |
| 1.6 | $90 | $0 | 90 |
Our engineers recommend:
- Critical interfaces: Invest in ≤0.4μm Ra
- Non-contact surfaces: 1.6-3.2μm Ra suffices
6. Future-Ready Surface Engineering
Smart Surface Monitoring
JLYPT integrates Industry 4.0 technologies:
- On-machine probes: Measure Ra every 50 parts
- AI roughness prediction: 94% accuracy from cutting parameters
- Blockchain traceability: Stores Ra data for 15+ years
Why Clients Trust JLYPT Surface Expertise
- Technical Leadership: 14 surface engineering patents
- Certifications: ISO 9001, AS9100D, ISO 13485
- Global Support: 4 dedicated surface treatment centers
