High-tolerance UAV Machining: CNC Strategies for Reliable Drone Alignment, Fits, and Repeatability

High-performance drones fail in quiet, expensive ways. Not the dramatic kind—more often it’s the slow drain of “why does this unit vibrate but that unit doesn’t,” “why is the gimbal notchy,” or “why did the payload rail loosen again.” These issues are rarely solved by simply tightening every dimension. They are solved by High-tolerance UAV machining done with a disciplined approach to datums, GD&T, process planning, tool control, workholding, coating allowances, and metrology.

This article is a practical shop-floor and engineering-drawing guide to making UAV parts that assemble consistently and hold alignment under vibration, temperature swings, and service cycles. It is written for UAV design engineers, manufacturing engineers, and sourcing teams who need precision outcomes—not just “nice-looking” CNC parts.

If you need a supplier for precision UAV components, JLYPT supports custom CNC UAV parts here:
https://www.jlypt.com/custom-cnc-uav-parts-manufacturer/

---

Table of Contents

1. What “High Tolerance” Actually Means in UAV Hardware
2. Why High-tolerance UAV machining Matters More Than Ever (Performance Drivers)
3. Feature Map: Where Tight Tolerances Truly Pay Off in Drones
4. Datums and GD&T: The Backbone of High-tolerance UAV Machining
5. Tolerance Stack-Up for UAV Assemblies (Motor Axis, Gimbal, Payload)
6. Process Selection: 3-Axis, 3+2, 5-Axis, Turning, Mill-Turn, Grinding
7. Material Behavior Under Tight Tolerances (7075 vs 6061 vs Titanium, etc.)
8. Workholding, Datum Transfer, and Distortion Control
9. Tooling, Runout, and Cutting Strategy for Precision Surfaces
10. Holes, Bores, Threads: Fits, Reaming, Thread Milling, Inserts
11. Surface Finish and Coatings: Anodize/Hardcoat Allowances Without Surprises
12. Metrology for High-tolerance UAV Machining: CMM, Roundness, Surface Roughness
13. Documentation: FAI, Ballooned Drawings, Control Plans, and Traceability
14. Cost & Lead-Time Drivers (and How to Reduce Them Safely)
15. DFM Rules for Designers Who Need Tight Tolerances Without Huge Quotes
16. Three Case Studies from UAV Precision Machining Programs
17. RFQ Checklist and Drawing Notes (Copy/Paste)
18. Next Steps with JLYPT + Technical References

---

1) What “High Tolerance” Actually Means in UAV Hardware

“High tolerance” is often used as shorthand for “small numbers on a drawing.” In reality, High-tolerance UAV machining is about controlling relationships—axis-to-axis alignment, face-to-hole squareness, bolt-circle true position, bore coaxiality, and stable seating faces—so that the assembled drone behaves predictably.

In drones, the parts that look “simple” can be the most sensitive: a motor mounting face that’s slightly out of flat can create clamp-load variation, which turns into micro-slip, which becomes vibration. A bearing bore that is round but not positioned correctly can feel fine on a bench and still generate a gimbal bias under load.

Table 1 — Practical Definition of “High Tolerance” in UAV Parts

Category	What it means in UAV terms	Typical examples	Risk if uncontrolled
Positional accuracy	features land where assembly expects them	bolt circles, dowel holes, bearing centers	misalignment, uneven thrust vectors
Angular control	faces are square/parallel where needed	motor seating face to arm datum	vibration, thrust loss, wear
Form control	shape is controlled, not just size	roundness, cylindricity, flatness	binding, runout, sealing issues
Surface integrity	finish supports friction, sealing, bearing life	Ra targets on bores/faces	poor bearing feel, leaks
Repeatability	part-to-part variation is small	10–200 pc pilot runs	inconsistent flight behavior

---

2) Why High-tolerance UAV machining Matters More Than Ever (Performance Drivers)

Modern UAV platforms pack more capability into lighter structures: higher power density motors, tighter gimbal stabilization, more sensitive IMUs, and payloads that amplify structural resonance. As designs evolve, “average quality” parts start to cap performance.

High-tolerance UAV machining directly affects:

• Vibration behavior and acoustic signature (motor alignment, seating flatness, bolt pattern position)
• Gimbal smoothness and stabilization authority (bearing fits, coaxiality, surface finish)
• Payload pointing accuracy (orthogonality and datum coherence across assemblies)
• Environmental robustness (seal grooves, face flatness, coating compatibility)
• Field maintainability (thread durability, insert strategy, controlled deburr)

---

3) Feature Map: Where Tight Tolerances Truly Pay Off in Drones

Not every face needs microns. But certain features deserve priority because they define alignment, preload, and repeatability.

Table 2 — UAV Features That Justify High-Tolerance CNC Control

UAV component	Critical features	Recommended control type	Why it’s critical
Motor mount / hub	seating face flatness, bolt-circle true position, pilot bore	flatness + true position + bore size/form	thrust vector consistency; vibration reduction
Arm interface node	datum-to-datum perpendicularity, dowel/locating holes	perpendicularity + position	consistent arm geometry across builds
Gimbal yoke/housing	bearing bore size + coaxiality, surface finish	size + coaxiality + Ra	smooth motion, low torque ripple
Payload rail	hole spacing, thread durability, sliding fit	position + fit class + insert plan	repeatable payload swaps
Sealed avionics enclosure	lid flatness, O-ring groove geometry	flatness + profile	IP rating, pressure equalization
Sensor mounts	orthogonality, pattern position	angular + position	calibration stability

---

4) Datums and GD&T: The Backbone of High-tolerance UAV machining

If you want precision outcomes, the drawing must describe how the part is supposed to be referenced in assembly. That means datums are not decorative—they’re the manufacturing “north star.”

4.1 Datum strategy that matches real assembly

A workable datum scheme typically uses:

• Datum A: the primary seating face (the face that actually clamps or locates)
• Datum B: a secondary locating feature (edge, bore, or precision slot)
• Datum C: a tertiary feature that removes the last degree of freedom (hole, pin, or side face)

If a drawing does not specify datums clearly, the shop will select them. Different setups can then “make sense” individually while creating stack-up errors in assembly.

4.2 GD&T controls that frequently matter for drones

In High-tolerance UAV machining, GD&T is most valuable when it:

• ties hole patterns to seating faces
• controls axis relationships (coaxiality / position)
• limits face angular drift (perpendicularity / parallelism)
• controls functional surfaces (profile for grooves and sealing faces)

Table 3 — GD&T Controls Commonly Used in High-tolerance UAV Machining

Functional requirement	Typical GD&T control	What it protects	Notes
Motor seating consistency	flatness on Datum A	uniform clamp load	finish Datum A late
Bolt circle alignment	true position to A	B	C
Gimbal bore alignment	position or coaxiality	smooth rotation	define inspection method
Lid sealing	flatness or profile	leakage prevention	specify surface finish too
Sensor orthogonality	perpendicularity	calibration stability	control the right datums

---

5) Tolerance Stack-Up for UAV Assemblies (Motor Axis, Gimbal, Payload)

Precision in a drone isn’t a single dimension; it’s the sum of small errors in a chain. Stack-up analysis helps you decide where tolerances are actually needed.

Table 4 — Example Stack-Up Contributors in UAV Subassemblies

Subassembly	“Bad outcome”	Dominant contributors	Best mitigation
Motor + prop plane	vibration + thrust vector bias	seating flatness, bolt-circle position, perpendicularity	datum-driven machining + CMM position
Gimbal rotation axis	notchy feel + drift	bore coaxiality, surface finish, bearing seat geometry	controlled boring + form measurement
Payload rail repeatability	payload pointing offset after swap	hole spacing, rail straightness, insert placement	position control + controlled installation

---

6) Process Selection for High-tolerance UAV machining

Your tolerance goals should guide the machining route. A “tight” part made with too many re-clamps often becomes a tolerance lottery.

6.1 3-axis milling (precision achievable, but setup-dependent)

Works well for plates, brackets, and parts where key features can be completed in one or two orientations with reliable datum transfer.

6.2 3+2 (positional) machining

A strong choice for multi-face parts when continuous 5-axis is unnecessary. Reduces setups while maintaining strong accessibility.

6.3 5-axis machining (accuracy via fewer setups)

In High-tolerance UAV machining, 5-axis is valuable when:

• hole patterns and bores must remain tightly related across multiple faces
• the part geometry forces multiple orientations
• you want to reduce cumulative re-clamp error

6.4 CNC turning and mill-turn (often the best path for axis parts)

Spacers, shafts, bearing journals, gimbal axles, and precision standoffs benefit from turning because coaxiality and surface finish are naturally strong when done correctly.

6.5 Grinding, honing, lapping (when CNC alone isn’t enough)

Not every UAV program needs grinding, but if you truly need ultra-low runout or extremely tight form requirements, secondary processes may be justified for select features.

Table 5 — Process Capability Map (Typical, Shop-Dependent)

Process	Best for	Typical strengths	Typical limitations
3-axis milling	plates, brackets	cost efficiency, speed	multiple setups can accumulate error
3+2 milling	multi-face prismatic parts	fewer setups, good access	still needs good datum definition
5-axis milling	complex housings/nodes	minimal re-clamping, better relationships	programming + probing discipline required
CNC turning	shafts, journals	coaxiality, surface finish	secondary milling needed for flats/slots
Mill-turn	mixed axis + milled features	concentric + prismatic features	process planning complexity
Grinding/honing	bearing seats, ultra-precision	form + finish	higher cost, added handling

---

7) Material Behavior Under Tight Tolerances

Material selection isn’t only about strength-to-weight. Under tight tolerances, thermal expansion, stress relief, and coating compatibility can dominate.

Table 6 — Materials Often Used in High-tolerance UAV Machining

Material	Why UAV teams use it	Precision considerations	Typical applications
6061-T6 Al	economical, stable	generally forgiving; good for fixtures and brackets	plates, mounts, covers
7075-T6 Al	high stiffness/strength	more sensitive to stress concentration; still machines well	structural nodes, arms, motor mounts
Ti-6Al-4V	strength + corrosion	lower thermal conductivity; tool pressure and heat matter	harsh environments, high load points
17-4PH SS	high strength	heat-treat can move geometry; plan sequencing	pins, adapters, wear parts
303/304 SS	corrosion	gummy machining; finish control needed	fasteners, small hardware
Engineering plastics	damping, insulation	creep and temperature effects	isolators, covers, fixtures

Table 7 — Thermal Expansion Snapshot (Why It Matters)

Material	Relative CTE behavior (qualitative)	What it means for UAV precision
Aluminum alloys	higher expansion	fits can shift with temperature; consider operating conditions
Stainless steels	moderate	stable, but heavier
Titanium	moderate	good strength; manage heat during machining
Plastics	high + creep	avoid for critical alignment features

---

8) Workholding, Datum Transfer, and Distortion Control

Workholding is where precision is won or lost. In High-tolerance UAV machining, the part must be held rigidly without being bent into shape by clamp pressure.

8.1 Fixturing principles that scale to repeatability

• Clamp on robust regions (bosses, thick walls), not thin webs
• Create repeatable datum contact (hard stops, locating pins, precision nests)
• Use probing to verify datum pickup and catch drift early
• Minimize re-clamping steps that re-interpret the datums

8.2 Distortion control for thin-wall UAV parts

• Balanced roughing (leave uniform stock)
• Finish critical faces last
• Avoid removing the “backbone” early in the route
• Consider stress-relieved stock for sensitive geometries

Table 8 — Common Workholding Mistakes vs Fixes

Mistake	What it causes	Better approach	Benefit
vise clamping thin walls	bowed parts, drifting bores	soft jaws + support pads	geometry stability
too many setups	accumulated datum error	5-axis or 3+2 consolidation	better feature relationships
finishing early	later operations distort finished faces	finish critical surfaces last	improved flatness/position
no probing	unnoticed setup shift	in-process probing	fewer surprises at inspection

---

9) Tooling, Runout, and Cutting Strategy for Precision Surfaces

Precision machining is not only about machines—it’s about controlling the small variables that multiply into measurable error.

Key contributors in High-tolerance UAV machining:

• toolholder quality and runout
• tool deflection (especially on long reach tools)
• chatter and harmonic instability on thin walls
• thermal growth in spindle/part
• consistent finishing stock and toolpath strategy

Table 9 — CNC Parameters That Influence Tolerance (Practical View)

Parameter	Why it matters	How shops control it
Tool runout	changes effective diameter; hurts bores	balanced holders, inspection, controlled stick-out
Deflection	shifts walls and slots	larger tools where possible; finish passes
Heat input	grows part mid-cycle	stable coolant strategy; step sequencing
Tool wear	drifts size over batch	tool life tracking; offsets; in-process checks
Finish strategy	reduces scallops and taper	consistent step-over; spring passes when needed

---

10) Holes, Bores, Threads: Fits That Survive Vibration and Service

A drone is a fastener-driven machine. Holes and threads define assembly repeatability.

10.1 Precision holes: drilling vs reaming vs boring

• Drilling is fast but can wander and leave variable hole quality.
• Reaming improves size and finish but needs good pre-hole control.
• Boring (with a fine boring head or CNC boring cycle) is often the most controllable for critical bores.

10.2 Fits that commonly appear in UAV designs

• slip fits for alignment without binding
• transition fits for controlled location
• press fits for bearing seats or pinned joints

Table 10 — Fit & Feature Guide for High-tolerance UAV Machining

Feature	Common UAV intent	Preferred method	Inspection tip
bearing seat bore	stable, low-friction rotation	boring + controlled finish	measure size + form (roundness)
dowel holes	repeatable assembly	drill undersize + ream	pin gauges + CMM position
motor pilot bore	concentric location	boring + chamfer control	CMM + runout check
thread in aluminum	repeated service	thread milling + inserts	go/no-go + torque test
counterbore/spotface	clamp-load stability	finish pass + deburr	verify depth + burr-free

---

11) Surface Finish and Coatings in High-tolerance UAV machining

Coatings are not “cosmetic add-ons” in precision UAV assemblies. They are dimensional changes, friction changes, and sometimes electrical contact changes.

11.1 Anodize / hardcoat considerations

• Thickness can reduce clearance in holes and slots
• Hardcoat improves wear but can change fit feel
• Masking is often the cleanest approach for critical bores
• Post-finish sizing may be necessary for ultra-critical fits

Table 11 — Coating Planning Checklist for Tight Fits

Item	Why it matters	Recommended note on drawing/RFQ
Coating type	thickness differs	specify coating class clearly
Masking zones	protect precision fits	“mask bore X / datum face A”
Allowance strategy	prevent interference	define pre-coat dimensions if needed
Electrical contact points	anodize is insulating	specify masked grounding pads
Cosmetic zones	avoid needless cost	define “Class A cosmetic” surfaces only

---

12) Metrology for High-tolerance UAV machining: CMM, Roundness, Surface Roughness

You cannot “inspect quality into” a part—but metrology prevents you from flying guesses. For high-tolerance UAV assemblies, inspection must measure the same relationships the drone relies on.

12.1 Metrology tools commonly used

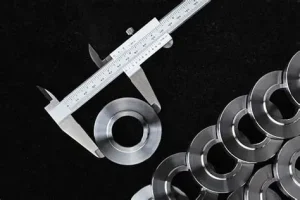

• CMM for true position, perpendicularity, profile, and multi-feature relationships
• Surface roughness tester for Ra on sealing faces and bearing seats
• Roundness / cylindricity measurement for critical bores
• Height gauge + granite for fast checks on plates and datums
• Go/No-Go gauges for threads and pins in production-like quantities

Table 12 — Inspection Outputs That Add Real Value

Output	When it’s worth requesting	What it tells you
CMM report (GD&T)	bolt patterns, multi-face relationships	whether the part matches assembly intent
Surface roughness report	sealing faces, bearing seats	friction/seal performance
First Article Inspection (FAI)	new part or major rev	baseline for future lots
SPC sampling	pilot production	process stability over time
Material certs (if required)	regulated or critical programs	traceability and compliance

For general standards and metrology references (useful when building an internal spec), see:

• https://www.iso.org/standards.html
• https://www.asme.org/codes-standards
• https://www.nist.gov/
• https://www.astm.org/standards

---

13) Documentation: FAI, Ballooned Drawings, Control Plans, Traceability

If you want repeatable outcomes from High-tolerance UAV machining, the documentation should match the risk.

Table 13 — Documentation Levels (Match to Your Program Stage)

Level	Typical deliverables	Best for
Basic	dimensional spot checks + thread gauges	early engineering builds
Standard	full dimension report for critical features	validation builds
High-control	ballooned drawing + CMM GD&T + material/finish certs	customer delivery, pilot production
Production discipline	control plan + SPC + traceability	scaled manufacturing

---

14) Cost & Lead-Time Drivers in High-Tolerance CNC Work

Tight tolerance doesn’t automatically mean high cost. The biggest cost driver is often how many times the part must be reinterpreted—re-clamped, re-datumed, re-measured.

Table 14 — Cost Drivers in High-tolerance UAV Machining (and Safe Optimizations)

Cost driver	Why it increases cost	How to reduce cost without losing function
too many critical tolerances	forces slow machining + inspection	tolerance only functional features
multiple setups	adds labor and error risk	consolidate via 3+2 or 5-axis
deep thin-wall pockets	chatter + scrap	adjust ribs/wall thickness
post-coat rework	unpredictable fits	plan masking/allowance early
high inspection burden	CMM time is real time	focus CMM on datums + key patterns

---

15) DFM Rules for Designers Who Need Tight Tolerances (Without Inflated Quotes)

Designers can make precision cheaper by ensuring machinability supports the tolerance targets.

Table 15 — DFM Moves That Improve Precision and Manufacturability

Design choice	Why it helps High-tolerance UAV machining	What to avoid
generous internal radii where possible	stronger tools, less deflection	tiny radii everywhere
clear datum features	consistent setup and inspection	ambiguous references
avoid ultra-thin floors	reduces warp	“paper floors” under pockets
add inspection-friendly features	easier probing and CMM alignment	hidden critical features with no datums
standardize fasteners	repeatable assembly	mixing thread standards unnecessarily

---

16) Three Case Studies in High-tolerance UAV machining

These examples show how precision problems tend to surface in real UAV programs—and what machining/inspection changes actually fix them.

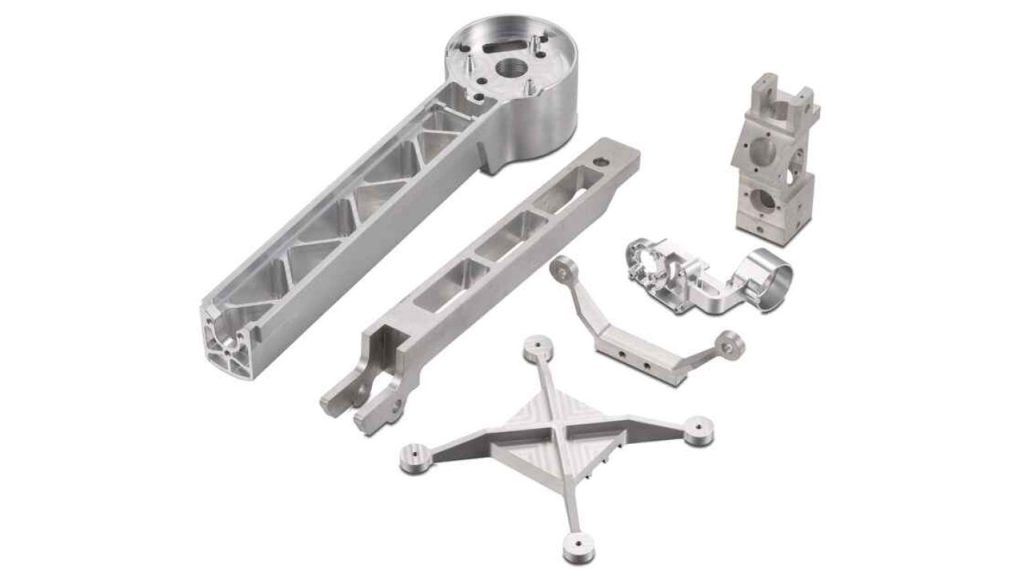

Case Study 1 — Motor Mount Plate: Bolt Circle True Position + Seating Flatness

Application: high-power multirotor motor mount plate in 7075-T6.

Observed issue:
Two sets of “same design” mounts produced different vibration signatures at mid-throttle. Swapping motors didn’t move the issue; swapping plates did.

Root cause (manufacturing + definition):

• The drawing controlled hole size but did not control true position relative to a functional datum scheme.
• The seating face was within thickness tolerance but not tightly controlled for flatness, and burr control on spotfaces varied.

Precision fix:

• Defined Datum A as the motor seating face; added a flatness control.
• Controlled bolt-circle holes with true position relative to A|B|C.
• Finished the seating face and spotfaces in a final operation; added a mandatory edge-break/deburr note.
• Requested a CMM report for the bolt-circle true position on first articles.

Result:
Assembly became repeatable, clamp load stabilized, and vibration differences between units reduced measurably—without tightening every dimension on the part.

---

Case Study 2 — Gimbal Bearing Housing: Coaxiality + Surface Finish

Application: compact gimbal bearing cartridge housing (aluminum with anodize).

Observed issue:
Gimbal rotation felt smooth by hand before coating but became slightly notchy after anodize; some housings needed force to seat bearings.

Root cause:

• Bore sizing strategy did not account for coating thickness on functional bearing seats.
• Bores were within diameter tolerance but had inconsistent form and positional relationship across setups.

Precision fix:

• Changed process: bored bearing seats in a single stable orientation and verified with in-process probing.
• Planned coating: masked critical bearing seats (or specified allowance + post-finish sizing when masking wasn’t feasible).
• Added a surface roughness requirement on the bearing seat and verified with a roughness tester.
• Used CMM to confirm bore position relationship to the mounting datums.

Result:
Bearing installation force became consistent, gimbal torque ripple dropped, and coated parts matched the pre-coat assembly behavior.

---

Case Study 3 — Sealed Avionics Enclosure: Lid Flatness + O-Ring Groove Geometry

Application: UAV avionics enclosure requiring environmental sealing.

Observed issue:
Intermittent sealing failures during thermal cycling and vibration. Lids passed basic dimensional checks, but leak rate varied.

Root cause:

• Lid and enclosure interface relied on flatness and consistent groove geometry, but the inspection plan focused on overall dimensions.
• Machining sequence caused slight distortion after material removal; critical faces were not finished last.

Precision fix:

• Reordered operations so sealing faces were finished at the end of the machining route.
• Added flatness controls on the sealing face and profile control for the O-ring groove.
• Introduced CMM checks on the groove geometry and a surface finish check on the sealing land.
• Standardized deburr requirements to avoid micro-leak paths.

Result:
Seal performance became repeatable across builds, and thermal cycling no longer created “random” leak outcomes.

---

17) RFQ Checklist and Drawing Notes (Copy/Paste)

If you want faster quoting and fewer engineering back-and-forth cycles, include the information below when sourcing High-tolerance UAV machining.

Table 16 — RFQ Inputs That Improve Precision Outcomes

Item	Provide	Why it matters
CAD	STEP (and native if possible)	reduces interpretation error
Drawing	PDF with datums + GD&T	defines functional relationships
Material	alloy + temper	affects stability and finish
Finish	anodize/hardcoat + masking notes	prevents fit surprises
Quantity	build qty + possible next lot	influences fixture strategy
Critical features list	top 5 features	focuses inspection and process
Inspection requirement	CMM/FAI/SPC level	aligns expectations
Assembly info	mating parts + fasteners	helps datum strategy

Practical drawing notes (common in UAV precision parts)

• “Break edges and remove burrs; no sharp edges.”
• “Datum scheme to match assembly; inspect true position of hole pattern relative to A|B|C.”
• “Mask coating on datum faces / bearing bores as noted.”
• “Surface finish requirement on sealing lands/bearing seats where applicable.”

---

18) Next Steps: JLYPT Support for High-Tolerance UAV Parts

If you’re building UAV hardware where alignment, vibration control, sealing, and repeatability matter, High-tolerance UAV machining should be treated as a system: datums + machining route + inspection plan + finish allowances.

Explore JLYPT’s custom UAV CNC machining support here:
https://www.jlypt.com/custom-cnc-uav-parts-manufacturer/

You can also visit the main site for broader CNC capabilities:
https://www.jlypt.com/
