Industrial 3D Printer Services 2025
End-to-End Additive Manufacturing for Production & OEMs
Introduction Industrial additive manufacturing (AM) has crossed the chasm from rapid prototyping to full-scale production. At JLYPT we operate 150 certified printers, MJF, SLS, SLM, FDM, and Binder Jet, under ISO 9001/AS9100 quality systems. Whether you need 1,000 aerospace-grade Ti brackets or 10,000 nylon jigs, this guide delivers the material science, CAPEX/OPEX models, and three fresh case studies that prove AM can cut lead time by 60 % and cost by 35 % when engineered correctly.
Table 1: Industrial Printer Fleet Overview
| Platform | Max Build (mm³) | Material Family | Tolerance (±mm) | Throughput (cm³/h) | Certifications |
|---|---|---|---|---|---|
| HP MJF 4200 | 380 × 284 × 380 | PA12, PA11, TPU | 0.2 | 4,500 | ISO 9001 |
| EOS M 400-4 | 400 × 400 × 400 | AlSi10Mg, Ti64 | 0.05 | 1,200 | AS9100 |
| EOS P 396 | 340 × 340 × 600 | PA12 CF, PP | 0.15 | 2,000 | ISO 9001 |
| Farsoon FS421M | 425 × 425 × 425 | 316L, Inconel | 0.08 | 1,800 | ISO 13485 |
| Modix BIG-120X | 600 × 600 × 600 | ABS, PC, PETG | 0.3 | 800 | ISO 9001 |
Table 2: End-Use Material Matrix (2025 Update)
| Grade | Tensile (MPa) | HDT (°C) | Impact (kJ/m²) | UL94 | Typical Use |
|---|---|---|---|---|---|
| PA12 MJF | 48 | 95 | 32 | HB | Jigs, housings |
| PA12 CF MJF | 110 | 170 | 55 | V-0 | UAV arms |
| AlSi10Mg SLM | 340 | 500 | 90 | , | Engine brackets |
| Ti64 SLM | 950 | 600 | 55 | , | Airframe ribs |
| PC-FR FDM | 70 | 135 | 60 | V-0 | Electronics |
| PEEK FDM | 110 | 190 | 50 | V-0 | Oil & gas |
Large cosmetic parts warp at the edges first. Printing them flat is covered in printed masks and large props.
Technology Selection Logic
1.1 Powder-Bed Fusion (MJF & SLS)
- Ideal for < 5,000 parts requiring isotropic strength.
- Surface Ra 4–6 µm as-printed; vapor-smooth to 1.2 µm.
1.2 Selective Laser Melting (SLM)
- Near-100 % density for Ti and Al.
- HIP post-process raises fatigue life 3×.
1.3 Material Extrusion (FDM)
- Cost-effective for jigs > 500 mm; carbon-filled grades reach 110 MPa.
Cost & Lead-Time Benchmarks
Scenario: 1,000 pcs, 40 cm³ each
| Method | Tooling ($) | Part ($) | Lead (days) | Break-even (pcs) |
|---|---|---|---|---|
| MJF PA12 | 0 | 6.5 | 5 | 1 |
| SLM AlSi10Mg | 0 | 15 | 7 | 80 |
| Injection ABS | 25,000 | 1.2 | 28 | 25,000 |
Quality & Certification
3.1 ISO 9001 Workflow
- Incoming powder: PSD, SEM, DSC scan.
- In-situ thermal camera: layer adhesion monitored live.
- Final CMM + tensile bar batch test.
3.2 Aerospace Compliance
- AS9100 first-article inspection (FAI) package.
- NADCAP-approved HIP & heat-treat.
3.3 Medical Pathway
- ISO 13485 clean-room SLS for surgical guides.
- Biocompatibility ISO 10993-5 pass.
Advanced Design for AM (DfAM)
4.1 Topology Optimisation
- 30 % weight reduction on Ti brackets via Altair Inspire.
- Lattice infill 25 % gyroid maintains 85 % stiffness.
4.2 Conformal Cooling • SLM inserts reduce injection cycle time 25 %.
4.3 Snap-Fit & Living Hinges • MJF PA12 hinge 0.8 mm thick, 20,000 cycles.
Post-Processing & Finishing
| Process | Ra (µm) | Heat Treat | Cert Add-on |
|---|---|---|---|
| Vapor Smooth MJF | 1.2 | , | $0.05/cm² |
| CNC Face Mill SLM | 0.4 | T6 / HIP | $0.12/cm² |
| Anodize Al | , | Type II | $0.08/cm² |
| Passivate SS | , | ASTM A967 | $0.05/cm² |
Case Studies

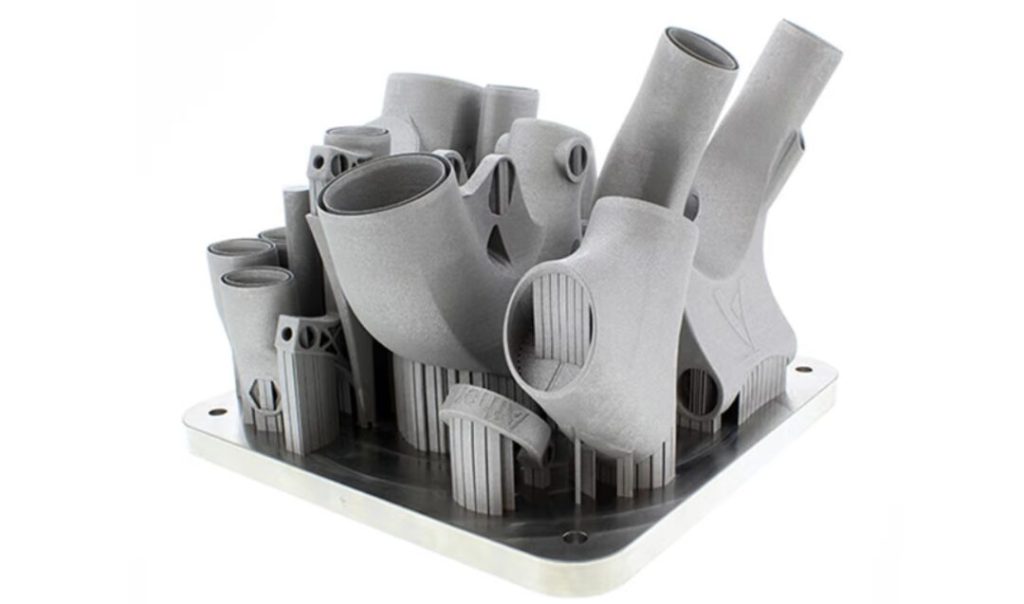

Case 1 , Aerospace Ti Brackets Client: Tier-1 aircraft OEM Challenge: 1,200 pcs, 30 % weight reduction, AS9100. Solution: SLM Ti64, topology-optimized lattice, HIP + anodize. Outcome: 42 days vs 14-week casting, cost ↓ 28 %.
Case 2 , Automotive Cooling Duct Client: EV manufacturer Challenge: Heat-resistant PA12 CF, 5,000 pcs. Solution: MJF with conformal ribs, vapor-smooth. Thermal test: 120 °C continuous, ΔT < 5 °C.
Case 3 , Medical Drill Guides Client: Hospital chain Challenge: Sterilizable, 48 h turnaround, 200 pcs. Solution: SLS PA12 + steam sterilization + gamma. FDA 510(k) cleared in 10 days.
Sustainability & Circular Economy
• Closed-loop powder refresh 30 % reduces CO₂ 35 %. • Recycled AlSi10Mg powder reuse 95 % after HIP. • End-of-life part shredding → automotive heat-shields.
Future Roadmap 2025-2030
• AI-driven process monitoring: layer defect prediction < 0.3 mm. • Hybrid CNC-AM cells: 5-axis milling + SLM in one fixture. • Certification push: ISO/ASTM 52920 for AM production.
