Industrial PVD Surface Treatment Services | Precision Coating Solutions
Comprehensive Industrial Applications of PVD Surface Treatment
1. Automotive Sector Applications
ComponentCoating TypeThicknessKey BenefitsPerformance DataPiston RingsCrN3-5μm60% wear reduction500h engine test passedTransmission GearsDLC2-4μm45% friction decrease200,000 cycle durabilityFuel InjectorsTiN1-3μmCorrosion resistance1000h salt spray test

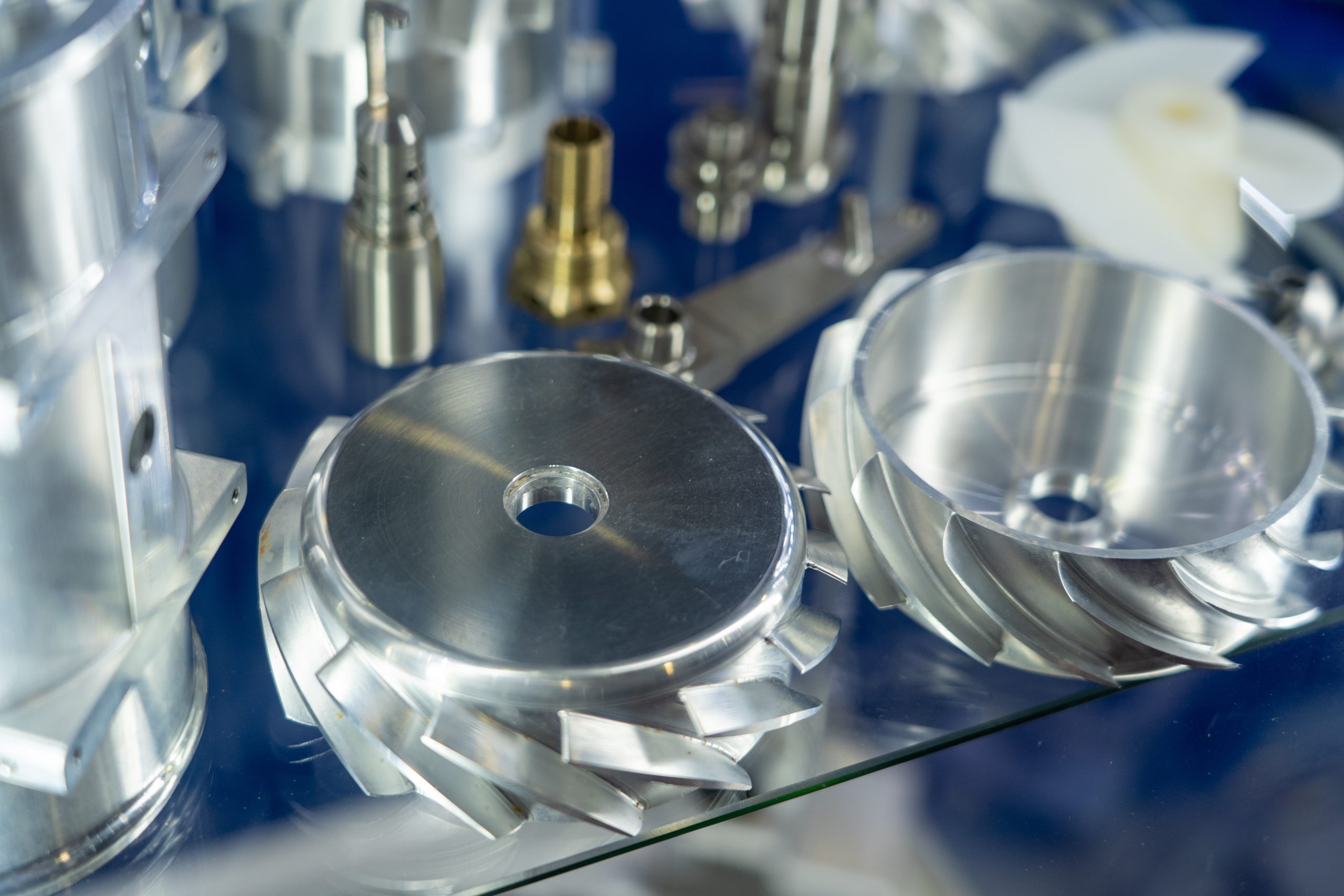

2. Aerospace & Defense Solutions
| Application | Coating Solution | Technical Specs | Certification |
|---|---|---|---|
| Turbine Blades | TiAlN multilayer | 5-8μm @800°C | NADCAP approved |
| Landing Gear | CrN+MoS₂ hybrid | 4-6μm HV2500 | MIL-STD-810G |
| Satellite Parts | AlCrN | 2-3μm UV stable | ESA ECSS-Q-70 |
3. Medical Device Enhancements
| Device Type | Coating Material | Biocompatibility | Clinical Benefit |
|---|---|---|---|
| Surgical Tools | ZrN | ISO 10993 Class III | Repeated sterilization cycles |
| Implants | TiO₂ | FDA 510(k) cleared | Osseointegration support |
| Dental Instruments | Au-based | EN ISO 22674 | Bacterial adhesion control |
Technical Comparison: PVD vs Traditional Treatments
Implants add biocompatibility paperwork on top of everything above. That path is described in medical PVD coating.
| Parameter | PVD Treatment | Electroplating | Thermal Spray |
|---|---|---|---|
| Thickness | 0.1-10μm | 10-100μm | 50-500μm |
| Adhesion | Metallurgical bond | Mechanical bond | Mechanical bond |
| Temperature | 200-500°C | 20-80°C | 1500-3000°C |
| Waste | Zero liquid waste | Toxic wastewater | Overspray waste |
| Lead Time | 2-4 hours | 24-48 hours | 4-8 hours |
ExampleHighlights

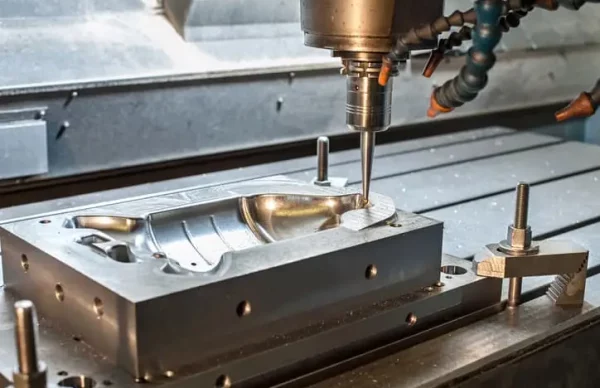

Example 1: High-Precision Mold Protection
Where PVD sits relative to plating and anodizing is covered in PVD among other finishes.
- Client: German automotive supplier
- Challenge: Needed 5μm coating with ±0.2μm tolerance
- Solution: Multi-arc PVD CrN with in-situ thickness monitoring
- Results: Achieved 0.18μm variance, extended mold life by 8x
Example 2: Space Component Coating
- Client: Asian satellite manufacturer
- Challenge: Required UV-stable coating for LEO conditions
- Solution: Special AlCrN formulation with 3-layer architecture
- Results: Passed 5-year orbital simulation tests

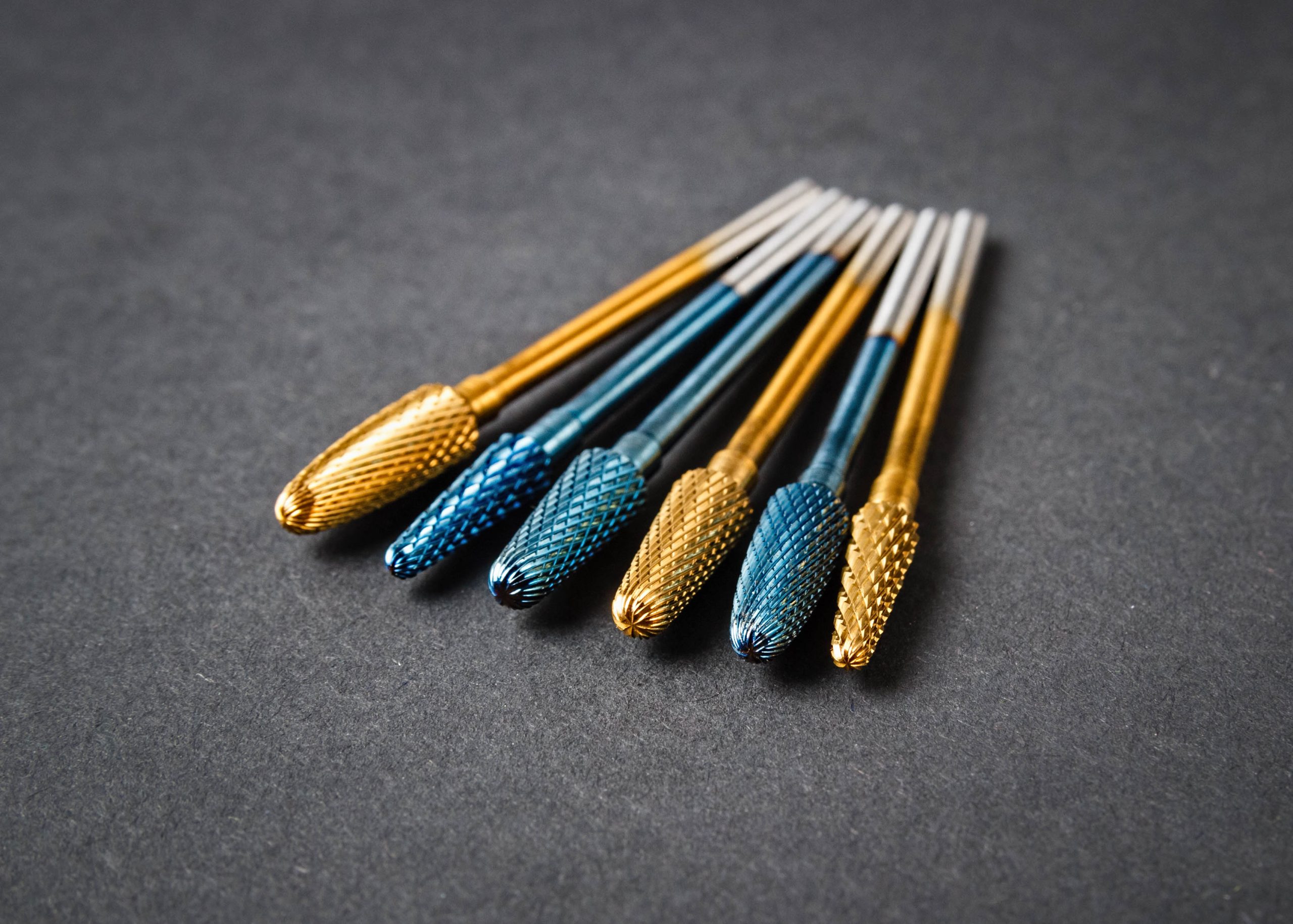

Example 3: Medical Drill Bit Enhancement
- Client: US surgical device company
- Solution: Nanostructured ZrN coating with sharp edge preservation
- Results: 300% longer cutting performance, reduced patient trauma
Our Proprietary PVD Treatment Process
- Pre-Treatment Phase:
- Ultrasonic cleaning (3-stage)
- Argon plasma etching
- Substrate activation
- Coating Application:
- High-power impulse magnetron sputtering
- Real-time optical emission monitoring
- Multi-layer architecture control
- Post-Treatment QC:
- Scratch testing (ISO 20502)
- XRD phase analysis
- Accelerated aging tests
For custom PVD surface treatment solutions, contact [email protected].
When quotes are compared side by side, ask each shop how they control substrate preparation before coating — the answer shifts the total more than the hourly rate does. Ours runs through the quote page; the process detail is on the finishing and coating page.
