Precision Micro Etching and Engraving: The Pinnacle of Miniature Manufacturing

In the world of microscopic manufacturing, precision micro etching and engraving represent the ultimate fusion of art and engineering—where tolerances are measured in microns and perfection is not an aspiration but a requirement.

Precision micro etching and engraving technologies have revolutionized how industries approach miniature component manufacturing, enabling intricate designs and precise markings at scales nearly invisible to the naked eye. As specialized providers of CNC machining services, we understand the critical importance of microscopic surface modification for applications ranging from medical devices to aerospace components and electronic semiconductors. These advanced processes bridge the gap between conventional machining capabilities and the growing demand for microscopic features on industrial components.

The evolution of micro etching and engraving technologies has enabled manufacturers to achieve feature resolutions under 10 microns, surface roughness values below 0.1 μm Ra, and positional accuracy within ±2 microns. These capabilities have opened new possibilities for product miniaturization, functional surface engineering, and permanent component identification across industries.

---

The Technical Foundation of Precision Micro Etching and Engraving

Precision micro etching refers to the controlled removal of material at microscopic scales using chemical, electrochemical, or laser-assisted processes to create shallow surface features, while micro engraving typically involves mechanical or laser-based subtraction to generate deeper grooves and markings. Both processes have become essential in modern manufacturing for creating functional micro-features that enhance component performance, enable traceability, and facilitate miniaturization.

The Critical Role in Advanced Manufacturing

Micro etching and engraving technologies address several fundamental manufacturing challenges:

• Component Miniaturization: As devices shrink, traditional machining reaches physical limitations that micro processes overcome

• Surface Engineering: Controlled micro-patterns can alter surface properties including friction, adhesion, and light reflection

• Permanent Identification: Micro-scale markings provide traceability without compromising component integrity or aesthetics

• Functional Features: Micro-channels, textures, and structures enable specific mechanical, fluidic, or optical functions

The economic impact of these technologies extends throughout product lifecycles, enabling smaller, more efficient devices while providing permanent tracking solutions that reduce counterfeiting and improve quality control.

Micro Etching and Engraving Technologies: A Comparative Analysis

Multiple technologies have emerged to address the unique challenges of micro-scale surface modification, each with distinct capabilities, advantages, and limitations.

Table 1: Micro Etching and Engraving Technologies Comparison

Laser Micro Engraving Technology

Laser micro engraving represents one of the most versatile approaches for creating high-resolution markings and features across diverse materials. The process utilizes focused laser beams with spot sizes as small as 10 microns to selectively ablate material through thermal or photochemical processes. Fiber lasers typically excel for metal marking, while UV lasers provide superior results for plastics and sensitive materials.

The precision of laser micro engraving depends on multiple factors:

• Beam Quality: Single-mode fiber lasers provide the smallest spot sizes and highest power density

• Scanning System: High-speed galvo scanners enable rapid processing while maintaining positioning accuracy

• Material Response: Wavelength selection optimized for specific material absorption characteristics

• Atmospheric Control: Inert gas shielding prevents oxidation and improves edge definition

Advanced laser systems can achieve positioning accuracy of ±1 micron and depth control within ±2 microns, making them ideal for applications requiring precise feature geometry and exceptional surface detail .

Chemical and Electrochemical Micro Etching

Chemical micro etching employs masked etching processes to create precise features through controlled chemical dissolution. The process begins with photoresist application, followed by UV exposure through a photomask, development to remove unexposed resist, and chemical etching to selectively remove unmasked material. This technology excels at producing burr-free, stress-free parts with complex geometries that would challenge mechanical methods.

Electrochemical etching operates on similar principles but utilizes electrolytic solutions and electrical current to selectively remove material from conductive workpieces. This process offers enhanced control and can produce features with higher aspect ratios than pure chemical etching. Both processes are well-suited for batch processing of multiple components simultaneously, providing economic advantages for medium to high-volume production.

Material Considerations for Micro Etching and Engraving

Material selection significantly influences the choice of micro etching or engraving process, as different materials respond uniquely to various marking technologies.

*Table 2: Material-Specific Micro Etching and Engraving Guidelines*

Material-Specific Processing Parameters

The successful implementation of micro etching and engraving processes requires careful parameter optimization for each material type:

Stainless Steel Processing:

• Laser Parameters: 20-40W fiber lasers, 20-100kHz pulse frequency, 500-1000mm/s scan speed

• Chemical Etchants: Ferric chloride solutions at 40-50°C with immersion times of 2-10 minutes

• Surface Finish: Can achieve Ra values of 0.2-0.8μm depending on process parameters

Titanium Alloy Considerations:

• Laser Parameters: Lower power densities to prevent heat-affected zones and material degradation

• Electrolytes: Specialized acidic solutions for controlled etching rates

• Medical Compatibility: Essential for implantable devices requiring biocompatible surfaces

Aluminum Processing Challenges:

• Laser Parameters: Higher powers often needed due to reflectivity and thermal conductivity

• Chemical Considerations: Strong alkaline etchants provide fastest etching rates

• Anodizing Interactions: Marking before anodizing provides permanent markings; post-anodizing requires process adjustment

Technical Implementation and Process Optimization

Successful micro etching and engraving implementation requires systematic approaches to process design, parameter optimization, and quality assurance.

Design for Micro Etching (DFME) Principles

Implementing Design for Micro Etching principles during engineering phases ensures optimal results and manufacturability:

• Feature Geometry: Account for isotropic etching effects that create characteristic edge profiles

• Tolerance Allocation: Design features with appropriate tolerances for the selected process capabilities

• Material Selection: Choose materials with known, consistent etching characteristics

• Scale Considerations: Adjust designs to accommodate process-specific limitations

• Registration Features: Include alignment marks for precise pattern registration

The relationship between CNC machining and micro etching begins with understanding how machining parameters affect surface characteristics that influence subsequent etching processes.

Process Control and Parameter Optimization

Maintaining consistency in micro etching and engraving requires rigorous control of multiple parameters:

• Laser Systems: Power stability, beam quality, focal position maintenance, and scan field calibration

• Chemical Processes: Bath concentration, temperature uniformity, agitation control, and contamination prevention

• Mechanical Engraving: Tool wear compensation, spindle runout minimization, and depth control

• Environmental Factors: Temperature stability, humidity control, and particulate management

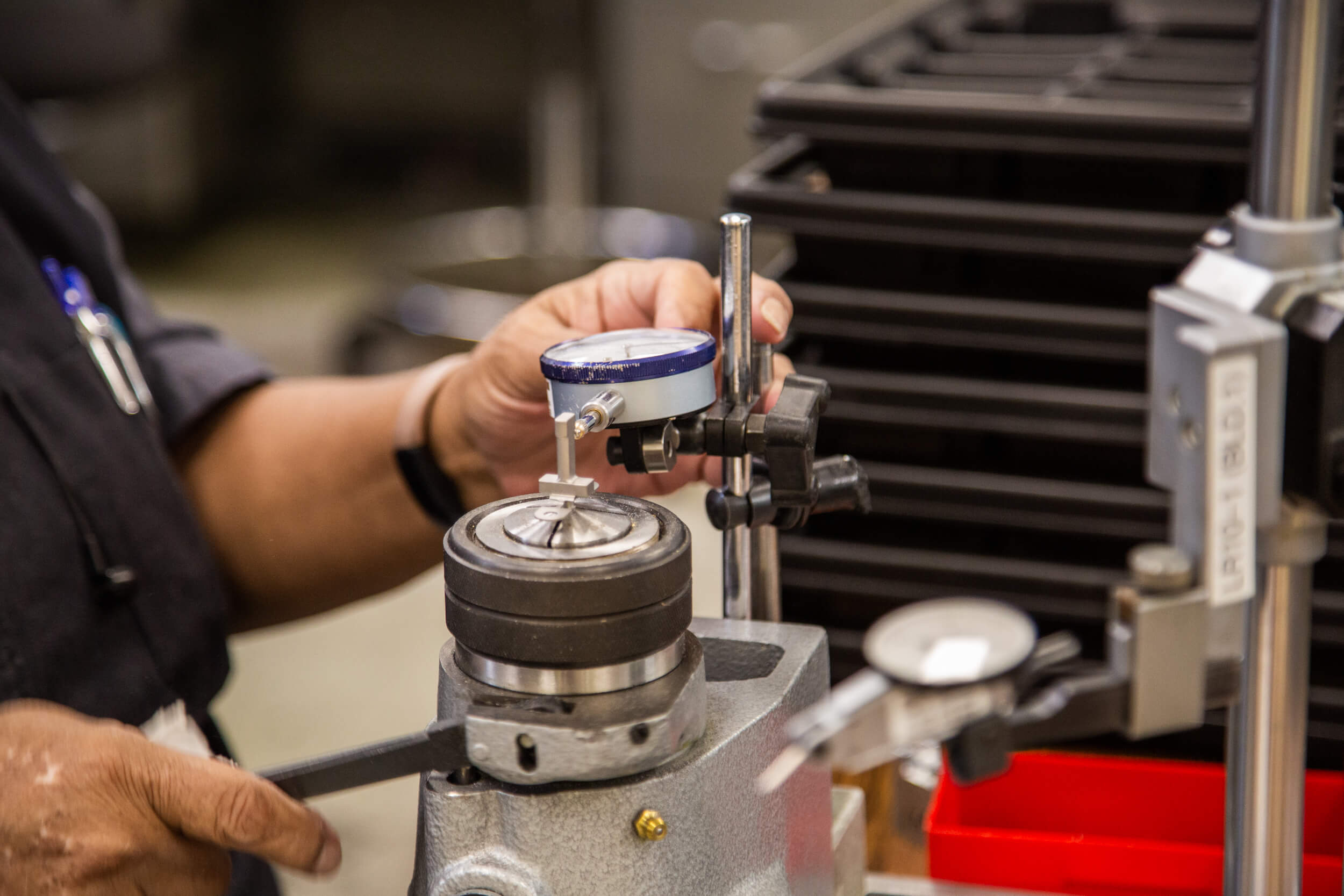

Quality verification includes both in-process monitoring and post-process inspection:

• Dimensional Verification: Optical comparators, laser scanning microscopes, or white light interferometers

• Surface Characterization: Roughness measurement, feature geometry analysis, and edge quality assessment

• Material Integrity: Cross-section analysis, microhardness testing, and heat-affected zone evaluation

Real-World Case Studies: Micro Etching and Engraving Solutions

Case Study 1: Medical Device Micro Etching for Enhanced Biocompatibility

A manufacturer of orthopedic implants required precise micro-texturing on titanium alloy surfaces to improve bone integration and long-term implant stability.

Challenge: Create consistent micro-scale patterns with 25-50μm features on complex curved surfaces of titanium spinal implants while maintaining strict biocompatibility requirements and achieving 100% traceability through micro-markings.

Technical Solution: The project implemented a hybrid approach combining multiple technologies:

• Femtosecond Laser Processing: Created controlled micro-pores with 30μm diameter and 40μm depth

• Electrochemical Polishing: Achieved surface smoothing to desired Ra 0.4μm without compromising micro-features

• UV Laser Marking: Applied unique device identifiers with 15μm character height in non-critical areas

• Cleanroom Processing: Maintained contamination-free environment throughout manufacturing

Outcome: The processed implants demonstrated significantly improved osseointegration in preclinical testing, with bone-to-implant contact increasing by 40% compared to smooth surfaces. The micro-markings provided permanent traceability while meeting all regulatory requirements for implantable devices.

Case Study 2: Aerospace Component Micro Engraving for Permanent Identification

An aerospace manufacturer needed permanent identification markings on safety-critical turbine components operating in high-temperature, high-stress environments.

Challenge: Apply human-readable and data-matrix codes to Inconel 718 components with depth control within ±5μm, no micro-crack formation, and minimal impact on material fatigue properties.

Technical Solution: The implementation utilized advanced laser processing technologies:

• Parameter Development: Systematic testing to identify optimal power, frequency, and pulse duration parameters

• Fixturing Design: Six-axis positioning to maintain optimal focal distance on complex geometries

• In-Process Monitoring: Real-time power monitoring and thermal imaging to ensure consistent results

• Post-Process Verification: Automated vision inspection to verify marking quality and readability

Outcome: The micro engraving process achieved consistent 35μm deep markings with excellent contrast and edge definition. Components passed rigorous fatigue testing showing no reduction in lifecycle performance. The solution enabled 100% traceability throughout the component lifecycle while meeting all aerospace industry standards.

Case Study 3: Micro-Mold Cavity Engraving for Precision Plastic Components

A mold manufacturer needed to create precise micro-features in tool steel mold cavities for producing microfluidic devices with channel widths of 50μm and depth of 100μm.

Challenge: Machine high-aspect-ratio micro-features in hardened tool steel (58 HRC) with sharp edge definition, surface roughness below Ra 0.2μm, and dimensional accuracy within ±2μm across the entire mold surface.

Technical Solution: The project employed sophisticated micro-machining strategies:

• Micro-Milling Operations: Using 50μm diameter end mills with specialized coatings

• CAD/CAM Integration: Cimatron software capable of handling micro-level toolpaths with 0.1μm programming resolution

• Tool Path Optimization: Trochoidal milling techniques to minimize tool deflection and breakage

• Process Monitoring: Vibration analysis and acoustic emission monitoring to detect tool wear

Outcome: The completed mold cavities achieved all dimensional requirements with feature accuracy of ±1.5μm and surface roughness of Ra 0.15μm. The injection molded microfluidic components demonstrated perfect feature replication, enabling the customer to produce laboratory-grade diagnostic devices with exceptional consistency and yield.

Quality Assurance in Micro Etching and Engraving

The microscopic nature of these processes demands specialized quality assurance approaches that provide comprehensive verification without compromising throughput.

Advanced Metrology for Micro Features

Modern micro manufacturing facilities employ specialized inspection technologies:

• Laser Scanning Microscopy: Non-contact 3D measurement of feature dimensions and surface topography

• White Light Interferometry: High-resolution depth measurement and surface characterization

• Scanning Electron Microscopy: Ultra-high magnification imaging for feature quality assessment

• Energy Dispersive X-ray Spectroscopy: Material composition analysis to detect contamination or material changes

These inspection methodologies provide the quantitative data necessary to maintain process control and demonstrate compliance with specification requirements.

Statistical Process Control Implementation

Maintaining consistent quality in micro etching and engraving requires robust statistical process control:

• Control Charting: Monitoring key process parameters to detect trends and variations

• Gage R&R Studies: Verifying measurement system capability for microscopic features

• Process Capability Analysis: Quantifying process performance against specification requirements

• Design of Experiments: Systematic approach to parameter optimization and robustness validation

These methodologies ensure processes remain stable and capable throughout production runs, minimizing variation and maximizing yield.

The Future of Micro Etching and Engraving Technologies

Micro etching and engraving technologies continue to evolve, with several emerging trends particularly relevant to advanced manufacturing applications:

Hybrid Manufacturing Approaches

The integration of multiple technologies in single platforms creates new possibilities for micro manufacturing:

• Laser/Mechanical Hybrid Systems: Combining the strengths of both technologies for complex features

• Additive/Subtractive Integration: Building structures with micro-features through combined processes

• In-Line Metrology: Real-time measurement and correction during processing

• Automated Process Adjustment: Closed-loop systems that adapt parameters based on sensor feedback

These hybrid approaches enable increasingly complex micro-features while improving process efficiency and consistency.

Advanced Laser Technologies

Emerging laser technologies offer new capabilities for micro processing:

• Ultrafast Lasers: Femtosecond and picosecond systems minimizing thermal effects

• Beam Shaping Technologies: Tailored intensity distributions for specific applications

• Wavelength Optimization: New laser sources targeting specific material interactions

• Process Monitoring: Advanced sensors for real-time quality verification

These laser advancements continue to push the boundaries of what’s possible in micro etching and engraving applications.

Implementing Micro Etching and Engraving Solutions

Success in micro etching and engraving requires more than technical capability—it demands a systematic approach to process implementation and optimization.

Technology Selection Framework

Choosing the appropriate micro etching or engraving technology requires comprehensive evaluation:

• Feature Requirements: Size, aspect ratio, edge quality, and dimensional tolerances

• Material Considerations: Compatibility, thermal sensitivity, and chemical reactivity

• Volume Needs: Prototyping, low-volume production, or high-volume manufacturing

• Economic Factors: Equipment costs, consumable expenses, and operational overhead

• Regulatory Compliance: Industry-specific requirements and documentation needs

The optimal technology choice balances technical requirements with economic considerations across the product lifecycle.

Partnership Selection Criteria

When selecting a manufacturing partner for micro etching and engraving applications, consider these essential criteria:

• Technical Capabilities: Appropriate technology portfolio with demonstrated micro-scale expertise

• Quality Systems: Documented quality management with micro-level inspection capabilities

• Material Experience: Specific expertise with your materials and application requirements

• Regulatory Knowledge: Understanding of industry-specific standards and compliance needs

• Technical Support: Engineering resources for process optimization and troubleshooting

The ideal partner combines technical capability with specific industry expertise to deliver robust micro etching and engraving solutions.

---

Conclusion

Precision micro etching and engraving technologies have become essential manufacturing capabilities across industries from medical devices to aerospace and electronics. These sophisticated processes enable microscopic features, textures, and markings that enhance product functionality, enable miniaturization, and provide permanent identification.

The most successful implementations treat micro etching and engraving as integral elements of product design rather than secondary operations. This integrated approach delivers significant benefits: enhanced product performance, enabled miniaturization, permanent traceability, and superior aesthetics.

As manufacturing continues toward increasingly miniaturized and sophisticated products, the role of precision micro etching and engraving will continue to expand, enabled by advancing technologies and growing material expertise.

For organizations requiring exceptional precision in micro-scale surface modification, our specialized CNC machining services deliver the capabilities, expertise, and quality assurance necessary for the most demanding applications. Contact our engineering team to discuss how our micro etching and engraving solutions can enhance your next project.
