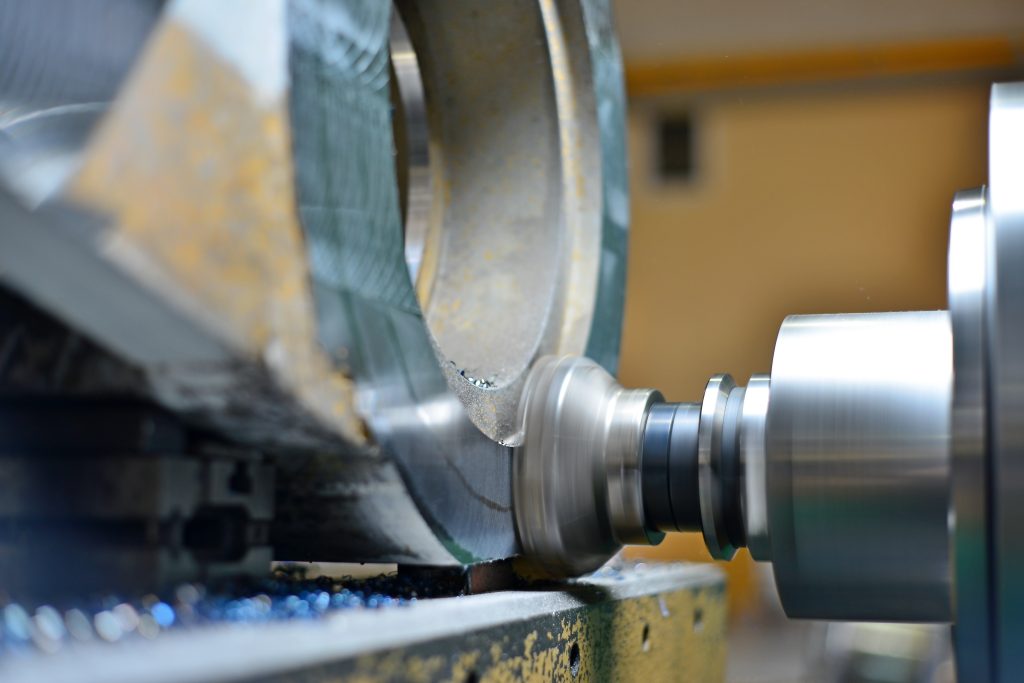

Introduction to Surface Finish Callout in CNC Machining
When you send a drawing out for quote, the surface finish callout is one of the details that quietly decides both the price and the lead time. The same part can cost two or three times more depending on whether the callout asks for Ra 3.2 or Ra 0.4, because the tighter value rules out ordinary cutting and requires grinding or polishing passes. This guide explains how to read surface finish callouts, what each parameter means, and how the value you specify translates into the process a workshop actually runs.
Understanding Surface Finish Callout
A surface finish callout is the complete instruction a drawing gives about required roughness: the parameter (most often Ra, sometimes Rz), the limiting value in micrometers, and any processing notes such as “grind after heat treatment” or a machining direction requirement. The callout is attached to the drawing through a graphical mark, and if you need that mark itself decoded, our separate guide to the finished surface symbol covers its anatomy and ISO/ASME variants in detail.
Jlypt’s Surface Finish Callout Table
Below is a detailed table demonstrating common surface finish callouts, their interpretations, corresponding Ra values, typical CNC processes, and applications in various industries.
| Callout | Description | Ra (μm) | CNC Process | Applications |
|---|---|---|---|---|
| 1.6μm Ra Max | General purpose finish | 1.6 or less | Milling, Turning | Automotive components, Tools |
| 0.8μm Ra Max | Fine finish | 0.8 or less | Grinding, Polishing | Medical instruments, Electronics |
| 0.4μm Ra Max | Very fine finish | 0.4 or less | Superfinishing | Optical components, Jewelry |
| Mirror-like | Smooth, defect-free finish | <0.1 | Diamond turning | Aerospace parts, High-end watches |
| Directional Texture | Textured in a specific direction | Varies | Precision grinding | Precision machinery, Automotive trim |
| Specific Pattern | Textured to a specified pattern | Varies | Vibratory finishing | Custom parts, Decorative items |
Alt: Jlypt’s examples of surface finish callouts and their corresponding textures
How Surface Finish Callouts Affect Cost and Process
The way a callout is written often matters as much as the value it specifies. These are the three situations we see most often when reviewing customer drawings:
Over-Specifying the Finish
A housing face that mates with a gasket rarely needs anything better than Ra 3.2, yet drawings arrive asking for Ra 0.4 on every surface. That single value forces grinding or polishing passes on surfaces that a standard face mill would have finished in one operation, and it pushes inspection from a quick visual check to profilometer measurements. Unless a surface is a sealing face, a bearing journal, or an optical seat, Ra 1.6 to 3.2 is usually the economical choice. Specifying tight values only where they matter is the fastest way to cut part cost without touching the design.
Leaving the Callout Out Entirely
When a drawing carries no finish callout, the workshop machines to its default as-cut condition, which can land anywhere between Ra 0.8 and Ra 3.2 depending on tooling and feeds. That is fine for most structural parts, but it becomes a problem when the surface mates, seals, or slides against another component. If the finish matters, put it on the drawing. A one-line callout prevents the most common dispute we see: parts that pass dimensional inspection but fail at assembly because the surface was rougher than the mating part expected.
Ignoring the Process Chain
A callout written for the machined state can be silently violated by later operations. Heat treatment can distort a surface enough to change its roughness class; electroplating adds 5 to 20 μm of thickness that fills fine witness marks; hard anodizing builds a layer whose texture differs from the aluminum beneath it. When a drawing calls for both a tight finish and a post-machining treatment, the finish should be specified after treatment, or the treatment allowance should be stated in the callout notes. Getting this order right on the drawing saves a round of rework after parts come back from the plating shop.
If your drawings use symbols you are unsure about, start with our guide to the finished surface symbol, then send us the drawing itself: we review callouts line by line and quote the finish you actually need, not the most expensive one the paper could be read to require.
