CNC Machining Equipment List
With over 50 CNC and manual machines, JLYPT is equipped to handle high-tolerance CNC machine jobs, whether it’s a small single lot order or a large blanket order.
Our CNC and precision machining equipment features industry-leading brands, including Doosan, Haas, Hardinge, Mazak, DMG, and Maxia.
Masuura MAXIA MX-520 Five Axis Machining Center
Max Work Size mm (in)： Ø520×H350 | (Ø20.47×H13.77) | Ø710×H350 | (Ø27.95×H13.77) *with conditions
Spindle Speed RPM： 12,000:BT40 Standard | 12,000TorqueUp | :BT40 Option | 20,000:BT40 Option
Travel (x/y/z) mm (in)：630/560/510 | (24.80/22.04/20.07)
Mazak's INTEGREX i-100S CNC Multi-Tasking Machine
Milling Spindle：12000 rpm [standard] [7.5 kW (10 HP) (40 % ED / 30 min)]
20000 rpm [option] [5.5 kW (7 HP) (10 % ED)]
Y-Axis Stroke： 210 mm (8.27″) (±105 mm) (±4.13″)
Chuck Size (main spindle）：6″～8″
MAZAK SMOOTH QT- COMPACT 200MYL
- X-Axis 30”
- Y-Axis 20”
- Z-Axis 20”
- Ball screw size 1.57”
- Spindle Motor 20HP
- Spindle Speed 60 – 10,000 RPM
- Spindle Torque 100 ft/lbs @ 350 RPM
- Tool storage capacity 30 Station High Speed Arm Type
- Positioning Accuracy X, Y, Z +/- 0.0002”
- Positioning Repeatability X, Y, Z +/- 0.0001”
- Resolution 0.0001”
Japanese CNC SWISS TYPE AUTOMATIC LATHE Type C/G
- X-Axis 30”
- Y-Axis 20”
- Z-Axis 20”
- Ball screw size 1.57”
- Spindle Motor 20HP
- Spindle Speed 60 – 10,000 RPM
- Spindle Torque 100 ft/lbs @ 350 RPM
- Tool storage capacity 30 Station High Speed Arm Type
- Positioning Accuracy X, Y, Z +/- 0.0002”
- Positioning Repeatability X, Y, Z +/- 0.0001”
- Resolution 0.0001”
Our Equipment List
Equipment Details Table
| Machines | Model | QTY |
|---|---|---|
| CNC Machining Department | ||
| CNC machining equipment | 800*700*320MM | 10 |
| CNC milling equipment | 1200*1000*800MM | 10 |
| Grinding Machine | Tatung Okuma | 4 |
| Lathe Machine | GuanzhouMachin e tool works | 6 |
| Drilling machine | Hante | 2 |

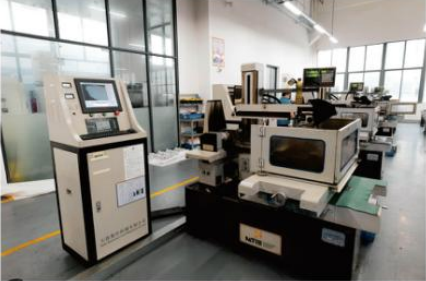

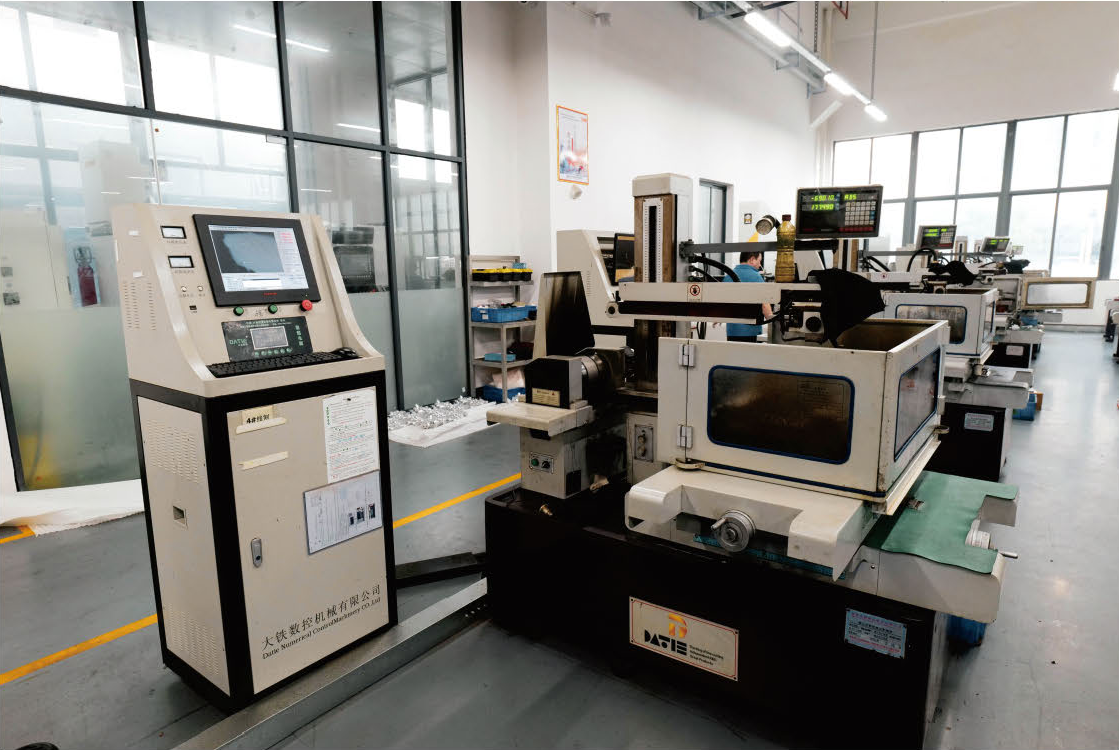

| EDM Machine | Makino Daehan. Acro.Best-znc | 5 |
| Vertical NC Milling Machine | Quaser. Kafo | 3 |
| Injection Molding Department | ||
| JSW-J50E | 50T | 2 |
| JSW-J75E | 75T | 1 |
| JSW-J150E | 150T | 1 |
| JSW-J220E | 220T | 1 |
| JSW-J280E | 280T | 1 |
| IS100GS | 100T | 2 |
| IS130GS | 130T | 2 |
| IS170GS | 170T | 2 |
| IS220GS | 220T | 1 |
| IS280GS | 280T | 1 |
| IS350GS | 350T | 1 |
