CNC Machining Equipment List
With over 50 CNC and manual machines, JLYPT is equipped to handle high-tolerance CNC machine jobs, whether it’s a small single lot order or a large blanket order.
Our CNC and precision machining equipment features industry-leading brands, including Doosan, Haas, Hardinge, Mazak, DMG, and Maxia.

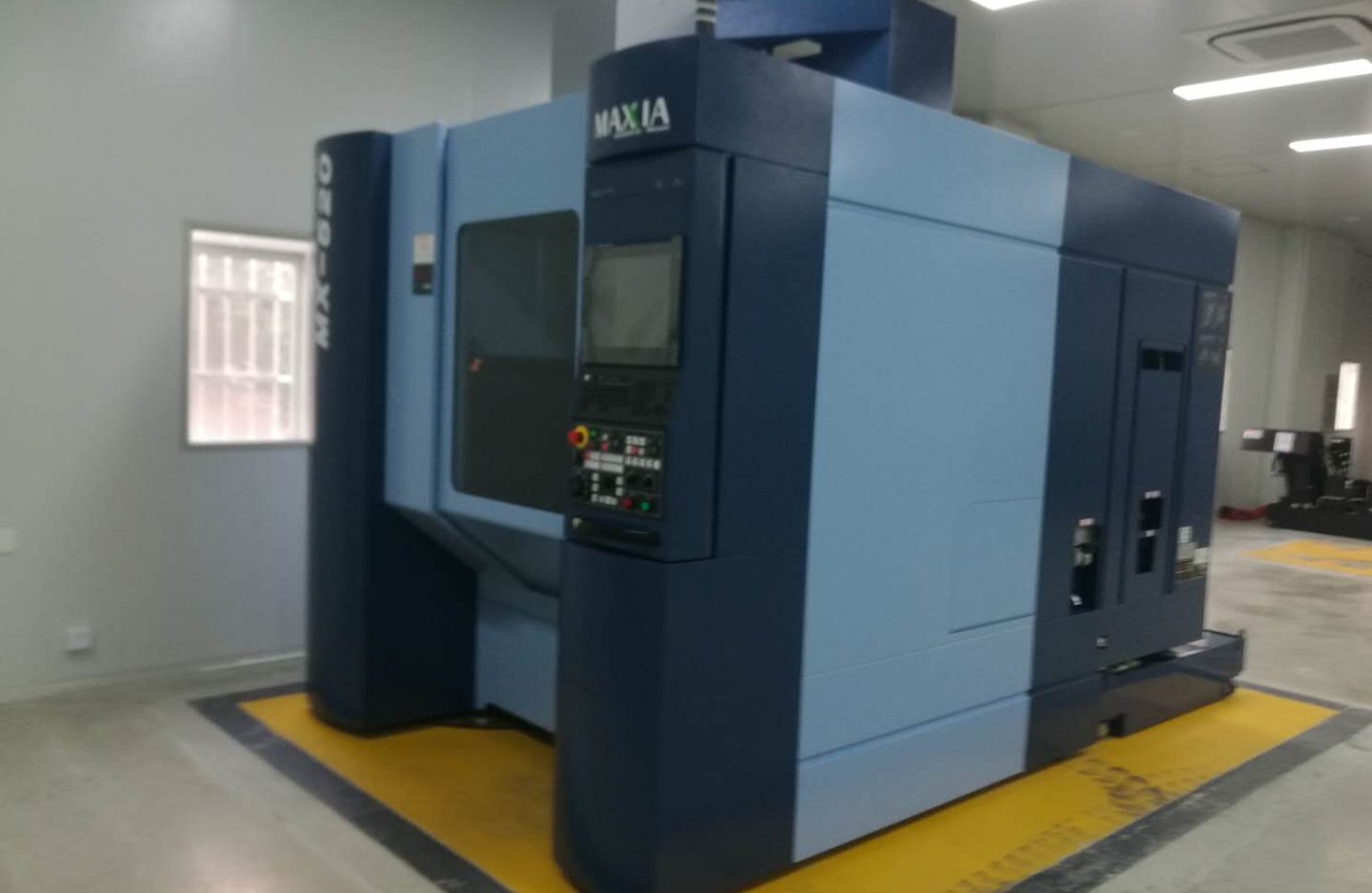

Masuura MAXIA MX-520 Five Axis Machining Center
Max Work Size mm (in)： Ø520×H350 | (Ø20.47×H13.77) | Ø710×H350 | (Ø27.95×H13.77) *with conditions
Spindle Speed RPM： 12,000:BT40 Standard | 12,000TorqueUp | :BT40 Option | 20,000:BT40 Option
Travel (x/y/z) mm (in)：630/560/510 | (24.80/22.04/20.07)
Mazak's INTEGREX i-100S CNC Multi-Tasking Machine
Milling Spindle：12000 rpm [standard] [7.5 kW (10 HP) (40 % ED / 30 min)]
20000 rpm [option] [5.5 kW (7 HP) (10 % ED)]
Y-Axis Stroke： 210 mm (8.27″) (±105 mm) (±4.13″)
Chuck Size (main spindle）：6″～8″
MAZAK SMOOTH QT- COMPACT 200MYL
- X-Axis 30”
- Y-Axis 20”
- Z-Axis 20”
- Ball screw size 1.57”
- Spindle Motor 20HP
- Spindle Speed 60 – 10,000 RPM
- Spindle Torque 100 ft/lbs @ 350 RPM
- Tool storage capacity 30 Station High Speed Arm Type
- Positioning Accuracy X, Y, Z +/- 0.0002”
- Positioning Repeatability X, Y, Z +/- 0.0001”
- Resolution 0.0001”
Japanese CNC SWISS TYPE AUTOMATIC LATHE Type C/G
- X-Axis 30”
- Y-Axis 20”
- Z-Axis 20”
- Ball screw size 1.57”
- Spindle Motor 20HP
- Spindle Speed 60 – 10,000 RPM
- Spindle Torque 100 ft/lbs @ 350 RPM
- Tool storage capacity 30 Station High Speed Arm Type
- Positioning Accuracy X, Y, Z +/- 0.0002”
- Positioning Repeatability X, Y, Z +/- 0.0001”
- Resolution 0.0001”
