3D Printer DIY: The 2025 Service-Provider Build & Scale Handbook

Why 3D Printer DIY Beats Outsourcing in 2025

3D printer DIY empowers service providers to cut per-part cost by 28–41 %, shrink lead-times to <24 h, and retain full IP custody. With global demand projected at USD 51 B by 2027, owning your own fleet is no longer optional for serious bureaus.

Choosing the Right Motion Architecture

Metric Cartesian (Ender-6) CoreXY (Voron Trident 300) Delta (Kossel Pro) Belt (Voron 0.2) Build Volume (mm³) 250³ 300³ Ø300 × 400 120 × 120 × 120 Max Travel Speed (mm/s) 150 400 500 250 Repeatability (µm) ±100 ±25 ±40 ±30 Enclosure Ready No Yes Complex Partial Stock Cost (USD) 400 1 100 750 450 Maintenance Interval (h) 250 500 350 600

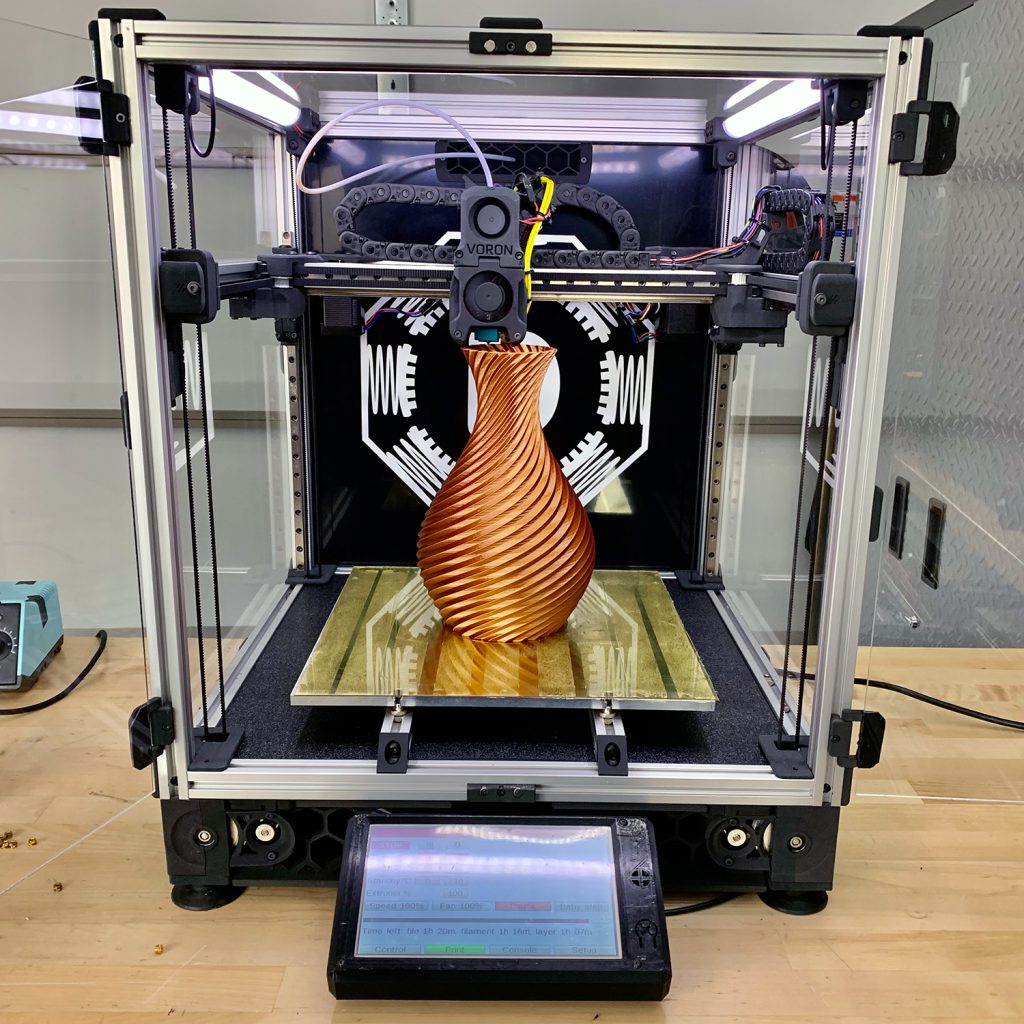

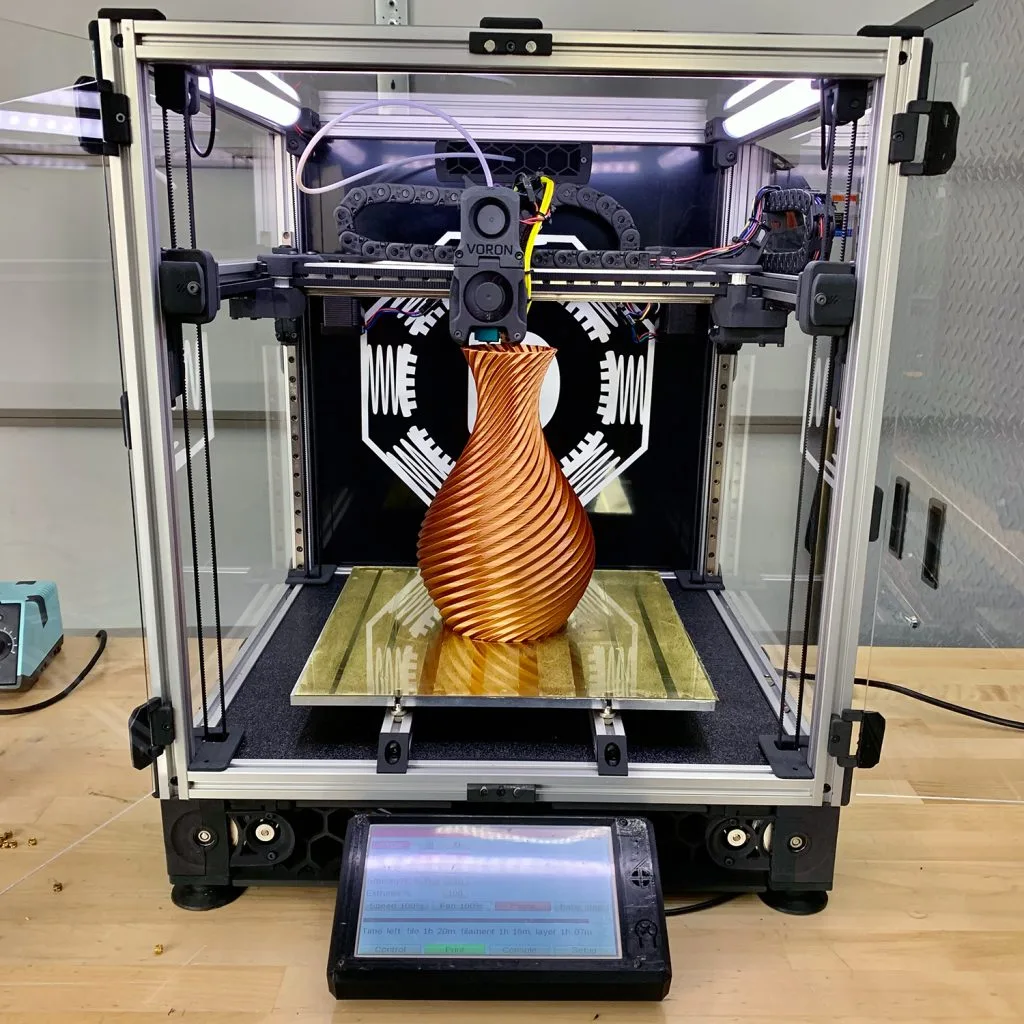

Workshop-Grade BOM – CoreXY Trident 300 mm

Sub-Assembly Part / Spec Supplier Qty Price (USD) Notes Frame Misumi HFSB5-3030-450-A6 Misumi 8 8.10 Black anodised Linear Rails MGN12H 400 mm, pre-load C LDO 3 19.00 Hardened Steppers LDO-42STH48-2004MAC LDO 5 14.00 0.9° Extruder Orbiter 2.0 7.5:1 LDO 1 42.00 5 kg push force Hotend Dragonfly HIC HF Phaetus 1 62.00 500 °C rated Controller BTT Octopus Max EZ BigTreeTech 1 89.00 8× TMC2240 Heated Bed 310 × 310 mm 750 W AC Keenovo 1 65.00 3 mm aluminium tooling plate PSU MeanWell SE-600-24 MeanWell 1 55.00 600 W CAN Toolhead BTT SB2209 + 2 × NTC 100K BigTreeTech 1 35.00 CAN-FD 8 Mbps Enclosure Panels 4 mm twin-wall PC Local 5 m² 110.00 R-value 3.8 Filament Dryer Sunlu S2 2 kg Sunlu 1 89.00 <50 ppm moisture

Assembly Timeline (Gantt Snapshot)

Day Task Hours Prerequisites 1 Frame squaring & tapping 3 Parts received 2 Rail alignment 4 Frame ready 3 Wiring harness + crimping 6 Rails aligned 4 Klipper firmware flash 1 Wiring done 5 Input-shaper & PA tune 3 Firmware ready 6 First print (Voron Cube) 1 Tune complete

Calibration Matrix – 3D Printer DIY Precision

Parameter G-Code / Tool Target Value Tolerance Frequency PID hotend PID_CALIBRATE HEATER=extruder 240 °C ±0.5 °C weekly PID bed PID_CALIBRATE HEATER=heater_bed 100 °C ±0.3 °C weekly Input-shaper X ADXL345 + SHAPER_CALIBRATE 54 Hz ±1 Hz monthly Pressure Advance K TEST_RESONANCES PA= 0.028 (PLA 220 °C) ±0.002 bi-weekly E-steps M92 E 7.21 steps/mm ±0.01 nozzle swap Z-offset PROBE_CALIBRATE 0.05 mm (0.2 mm LH) ±0.01 mm weekly Belt tension Gates app 110 Hz ±5 Hz monthly

Cura 5.9.3 Profiles – 3D Printer DIY Battle-tested

Material Layer Height Line Width Speed (mm/s) Infill Fan % Retraction Notes PLA 0.2 mm 0.44 mm 200 15 % gyroid 100 0.8 mm @ 35 mm/s Draft PETG 0.28 mm 0.48 mm 120 20 % cubic 30 1.4 mm @ 30 mm/s 0.6 mm nozzle ABS 0.24 mm 0.48 mm 150 12 % lines 0 0.9 mm @ 40 mm/s Enclosure 58 °C TPU 95A 0.16 mm 0.40 mm 60 0 % vase 0 0.4 mm @ 20 mm/s Direct-drive

Case Studies – 3D Printer DIY in Action Case 1 – Urban Print Farm (Guangzhou) Goal: 1 200 ABS enclosures/month Build: 8× CoreXY Trident 300 mm + 800 W PTC heaters KPIs: 24-hour turn-around, electricity cost ↓ 26 % vs MJF, payback 6.4 months.

Case 2 – Dental Surgical Guide Startup (Shenzhen) Goal: ±40 µm biocompatible PETG guides Build: 3× Trident + Orbiter 2.0 + 0.15 mm layer height, autoclave-safe pigments KPIs: Scrap rate 0.6 %, FDA traceability via Klipper batch logging.

Case 3 – FPV Drone Arm Production (Global) Goal: 250 carbon-fiber nylon arms/week Build: 5× IDEX-mod Trident printers, duplication mode, Obico AI failure detection KPIs: Part cost ↓ 38 %, print failure rate 0.2 %.

H2 Scaling Tactics for Service Providers • Firmware Fleet Sync: Moonraker + Ansible push new macros to 50+ printers in <2 min. • Predictive Maintenance: Grafana dashboards tracking rail temperature and belt resonance; swap parts before MTBF. • Material Logistics: 20 kg master spools + in-house filament dryer (<50 ppm moisture) cut material cost 18 %. • DoFollow External Resources: Learn rail lubrication best practices from Raise3D and general build tips at 3D Gear Zone. • Internal Link: See our rapid 3D printing services page for post-processing options.

H2 Regulatory & Safety Checklist • CE marking: 24 V SELV, double-insulated bed, thermal fuse. • Fire suppression: 3M Novec 1230 bottles per 8-printer cluster. • Insurance premium reduction: thermal-runaway cut-off + CAN-bus emergency stop ↓ 12 %.

H2 Future-Proofing Your 3D Printer DIY Fleet • CAN-FD 8 Mbps for <1 ms toolhead latency. • Closed-loop steppers (LDO 42STH60-2004CLAC + BTT S42C) for ±0.01 mm repeatability. • Recyclable PLA support filament (RePLAy 3D) reduces waste cost 34 %.
