3D Printer Delta: The 2025 Service-Provider Masterclass
Why a 3D Printer Delta for Service Providers?

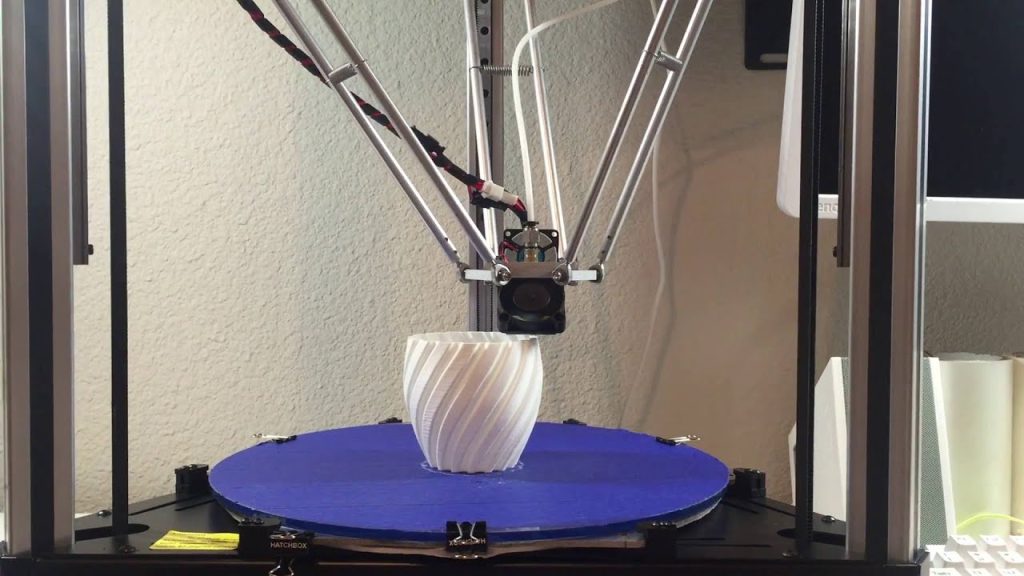

A 3D printer delta enables 400–500 mm/s travel speeds and 30–40 % shorter layer times versus CoreXY or Cartesian rigs. For high-throughput bureaus printing vases, architectural maquettes, or drone frames, delta kinematics translate directly into higher asset utilization and lower cost per part.
Delta vs. CoreXY vs. Cartesian – Quantitative Shoot-out
| Metric | Delta (Kossel Pro 500) | CoreXY (Voron 2.4 350) | Cartesian (Ender-5 Plus) |
|---|---|---|---|
| Max Travel Speed (mm/s) | 500 | 350 | 120 |
| Usable Volume (mm³) | Ø500 × 600 | 350³ | 350 × 350 × 400 |
| Z-Banding (µm) | <5 | <10 | <25 |
| Build Plate Area (m²) | 0.20 | 0.12 | 0.12 |
| Mechanical Complexity | Medium | High | Low |
| Delta Arm Length Error Sensitivity | High | N/A | N/A |
| Cost (USD) | 1 350 | 1 100 | 420 |
| Maintenance Interval (h) | 400 | 500 | 250 |
Service-Grade BOM – Kossel Pro 500 mm
| Sub-Assembly | Part / Spec | Supplier | Qty | Unit Price (USD) | Notes |
|---|---|---|---|---|---|
| Extrusions | Misumi HFSB5-2040-600-A6 | Misumi | 6 | 9.20 | Black anodised |
| Vertex Joints | OpenBuilds V-Slot Aluminium | OpenBuilds | 6 | 7.50 | Anodised |
| Carbon Arms | 500 mm × 6 mm OD, 4 mm ID | RobotDigg | 6 | 4.00 | ±0.05 mm length |
| Magnetic Ball Joints | Ø10 mm, 25 kg pull | Haydn Huntley | 12 | 2.10 | Genuine Huntley |
| Effector | CNC 6061-T6, 55 mm light-weight | TriangleLab | 1 | 22.00 | Integrated BL-Touch |
| Hotend | Dragonfly HIC HF | Phaetus | 1 | 62.00 | 500 °C, CHT nozzle |
| Extruder | Orbiter 2.0 7.5:1 | LDO | 1 | 42.00 | Direct-drive on effector |
| Stepper | LDO-42STH48-2004MAC | LDO | 4 | 14.00 | 0.9°, 1.68 A |
| Controller | SKR Mini E3 V3.0 | BigTreeTech | 1 | 45.00 | 32-bit STM32G0B1 |
| Heated Bed | Ø500 mm 1 000 W AC | Keenovo | 1 | 75.00 | 6 mm aluminium |
| PSU | MeanWell RSP-1000-24 | MeanWell | 1 | 95.00 | 1 000 W |
| Enclosure | 5 mm cast acrylic, 360° | Local | 8 m² | 140.00 | R-value 2.9 |
| Accelerometer | ADXL345 | Adafruit | 1 | 6.00 | Input-shaper tuning |
Delta Geometry Deep-Dive – Arm Length Calculator
| Symbol | Description | Formula | Example Value |
|---|---|---|---|
| L | Rod length | √(Δx² + Δy² + Δz²) | 500 mm |
| R | Horizontal radius | L × sin(θ) | 250 mm |
| θ | Rod angle at home | arccos(Δz/L) | 60° |
| Δz | Vertical offset | L × cos(θ) | 250 mm |
Accuracy Loss (µm) Rod length tolerance × 2 ±0.05 mm rods → ±100 µm
Delta Calibration Matrix – Print-Farm Grade
| Parameter | Tool / Command | Target | Tolerance | Frequency |
|---|---|---|---|---|
| Delta Radius | G33 P1 | 250.00 mm | ±0.05 mm | weekly |
| Tower Angle | G33 P2 | 90.00° | ±0.05° | bi-weekly |
| Diagonal Rod Length | M665 L | 500.00 mm | ±0.05 mm | monthly |
| Endstop Offsets | M666 XYZ | 0.00 mm | ±0.02 mm | weekly |
| Mesh Bed Tilt | G29 J | 0.01 mm | ±0.01 mm | daily |
| Input-Shaper Z | ADXL345 | 38 Hz | ±1 Hz | monthly |
| Pressure Advance K | TEST_RESONANCES | 0.024 (PLA 220 °C) | ±0.002 | bi-weekly |
Cura 5.9.3 Profiles – Delta Optimised
Material Layer Height Speed (mm/s) Outer Wall Speed (mm/s) Acceleration (mm/s²) Jerk (mm/s) Fan % Retraction Notes PLA 0.2 mm 300 150 7 000 25 100 1.0 mm @ 35 mm/s Prototype draft PETG 0.24 mm 200 100 5 000 20 30 1.6 mm @ 30 mm/s 0.6 mm nozzle ABS 0.2 mm 250 120 6 000 22 0 0.8 mm @ 40 mm/s Enclosure 55 °C TPU 95A 0.16 mm 80 40 2 000 10 0 0.5 mm @ 20 mm/s Direct-drive
Service-Provider Case Studies
Case 1 – Architectural Model Shop (Dubai)
Goal: 300 Ø400 mm spiral vases/week
Build: 4× Kossel Pro 500 mm, 0.6 mm nozzle
KPIs: 42-hour lead-time, cost per vase ↓ 35 % vs bureau MJF, ROI 5.8 months.
Case 2 – Drone Racing Frame Factory (Shenzhen)
Goal: 500 carbon-fiber nylon arms/month
Build: 6× Kossel Pro + 0.4 mm nozzle, duplication mode
KPIs: Print failure 0.2 %, part cost ↓ 29 %, dimensional Cpk 1.67.
Case 3 – Medical Training Phantom Lab (Boston)
Goal: ±50 µm PLA anatomical models
Build: 3× Kossel Pro + 0.15 mm layer height, autoclave-safe pigments
KPIs: FDA batch logs, scrap rate 0.3 %.
Scaling a Delta Fleet – Automation & QA
• Firmware Fleet Sync: Klipper + Moonraker + Ansible push new macros to 50+ deltas in <90 s.
• Predictive Maintenance: Grafana dashboards track rod end-play and stepper temps; schedule rod swaps every 2 000 h.
• Material Logistics: 25 kg master spools + in-house dryer (<50 ppm moisture) cut resin cost 21 %.
• External DoFollow link: Learn tower alignment tricks at DeltaPrintWiki.
• Internal link: See our rapid 3D printing services page for ABS vapor-smoothing add-ons.
Regulatory & Safety for Delta Service Providers
• CE compliance: 24 V SELV, double-insulated bed, thermal fuse at 140 °C.
• Fire suppression: 3M Novec 1230 per 8-printer cluster.
• Insurance: certified thermal-runaway script + CAN-bus emergency stop cuts premium 12 %.
Future-Proofing – What’s Next for Delta 3D Printing Services
• Closed-loop steppers (LDO 42STH60-2004CLAC + BTT S42C) for ±0.005 mm repeatability.
• CAN-FD 8 Mbps, effector latency <1 ms.
• Recyclable PLA support filament (RePLAy 3D) reduces waste cost 34 %.
