Aerospace CNC Machining Services: A Practical Engineering Guide to Flight-Grade CNC Manufacturing (JLYPT)

Aerospace parts do not fail politely. When a bracket cracks, a bore drifts, or a sealing land warps, the consequence is rarely limited to scrap and rework, it can become downtime, grounding events, or systemic reliability issues. That’s why Aerospace CNC machining services are fundamentally different from generic CNC work: success is measured not only by dimensional conformance, but also by traceability, process repeatability, surface integrity, and inspection evidence that stands up to audits and long service cycles.

This article is built as a shop-floor-to-engineering bridge. It explains how aerospace components are planned, machined, inspected, documented, and scaled, using CNC-machining terminology and real manufacturing logic (datums, setups, toolpaths, burr control, metrology, and special-process coordination). You’ll also find multiple detailed tables you can use as checklists and three case studies that reflect common aerospace manufacturing realities.

If your program includes UAV hardware, you can also reference JLYPT’s UAV-oriented capability page here :
Custom CNC UAV Parts Manufacturer

---

Table of Contents

1. What “Aerospace CNC Machining Services” Should Include
2. Why Aerospace Machining Is Different (Beyond Tight Tolerances)
3. Aerospace Part Families: What CNC Is Best At
4. Core CNC Processes: Milling, Turning, 5-Axis, and Mill-Turn
5. Material Selection and Machinability (Al, Ti, Stainless, Superalloys)
6. Datum Strategy & GD&T: How to Protect Functional Geometry
7. Process Planning: Setups, Workholding, Probing, and Toolpath Strategy
8. Thin Walls, Distortion, and Residual Stress Management
9. Burr Control, Edge Break Standards, and Surface Integrity
10. Finishing and Special Processes: Anodize, Chem Film, Passivation, Plating
11. Quality Evidence: AS9102 FAI, CMM Reports, Traceability, and Control Plans
12. Inspection & Metrology in Aerospace CNC Machining Services
13. DFM and Cost Drivers (Without Sacrificing Performance)
14. Supplier Evaluation Checklist for Aerospace CNC Machining Services
15. Three Case Studies (Prototype → Production Reality)
16. Internal + External Links (SEO)
17. Final Notes and Next Steps

---

1) What “Aerospace CNC Machining Services” Should Include

A buyer might treat Aerospace CNC machining services as “someone who can hold ±0.01 mm.” In practice, aerospace-ready service is a package of capabilities and behaviors, including:

• Manufacturing engineering: a documented process plan with stable datums and minimized setup stack-up
• Controlled machining: repeatable toolpaths, tool-life strategy, in-process probing when appropriate
• Surface integrity: burr control, edge conditioning, controlled surface finish, and avoidance of damage (FOD mindset)
• Inspection evidence: CMM strategy, functional gaging, and records suitable for customer review
• Traceability: material certifications, lot control, revision control, and identification methods
• Finishing coordination: coatings, heat treat, and masking requirements integrated into tolerancing and fits
• Risk management: first article validation, corrective actions, and controlled deviations if needed

Table 1 , Minimum Deliverables You Should Expect

Deliverable	What it is	Why it matters in Aerospace CNC machining services	When it’s critical
Certificate of Conformance (CoC)	Statement the parts meet requirements	Creates accountability and release record	Every shipment
Material certificate / mill cert	Chemistry + mechanical properties by lot	Prevents unknown material substitutions	Structural/load parts
Inspection report	Dimensional results and methods	Evidence of compliance	Tight GD&T, critical features
AS9102 FAI package (when requested)	Formal first-article form set	Validates process and drawing interpretation	New parts, rev changes
CMM report	Measured geometry outputs	Verifies true position, profile, runout, etc.	Complex GD&T
Special process certs	For finishing/heat treat	Aerospace compliance and consistency	Coated or heat treated parts
Nonconformance process	MRB-like handling	Prevents silent escapes	Any deviation scenario

If a supplier offers “tight tolerance machining” but cannot consistently provide the above, you’re not getting full Aerospace CNC machining services: you’re getting machining with hope.

---

2) Why Aerospace Machining Is Different (Beyond Tight Tolerances)

Aerospace hardware is engineered around predictable behavior across time: vibration, thermal cycles, corrosion exposure, load spectra, and maintenance events. The manufacturing system has to preserve design intent across all of that.

Key differentiators:

1. Functional datums dominate
   Cosmetic surfaces matter less than the surfaces that locate parts in assembly and carry load.

2. Tolerance is relationship-based
   Positional relationships (true position, profile, runout, perpendicularity) are often more important than size alone.

3. Surface integrity affects fatigue life
   Burrs, sharp edges, chatter marks, and tool witness lines can become crack initiation sites.

4. Documentation is part of the product
   For many aerospace programs, the “deliverable” includes inspection evidence, traceability, and stable revision control.

5. Finishing changes geometry
   Coating thickness and growth must be designed into fits and sealing features.

This is the mindset that separates general job-shop output from Aerospace CNC machining services.

---

3) Aerospace Part Families: What CNC Is Best At

CNC machining is most valuable when parts require controlled interfaces, stable geometry, and reliable repeatability, especially when castings, moldings, or additive processes still require precision finishing.

Table 2 , Typical Aerospace CNC Parts and What Drives the Process Choice

Part family	Examples	Primary CNC value	Typical risk	Typical mitigation
Structural brackets & fittings	ribs, lugs, clevises	strength + tight datum control	fatigue at corners	fillets, edge break, finish control
Housings & enclosures	avionics boxes, sensor housings	sealing and alignment	warp/thin walls	staged roughing, fixture support
Rotating/axisymmetric parts	spacers, hubs, sleeves	coaxiality and runout control	vibration, bearing wear	single-setup turning, gage strategy
Manifolds & fluid blocks	ports, galleries	leak-free geometry	burrs in passages	deburr validation, cleaning process
Precision interfaces	dowel patterns, pilots	assembly repeatability	stack-up error	datum strategy, setup reduction

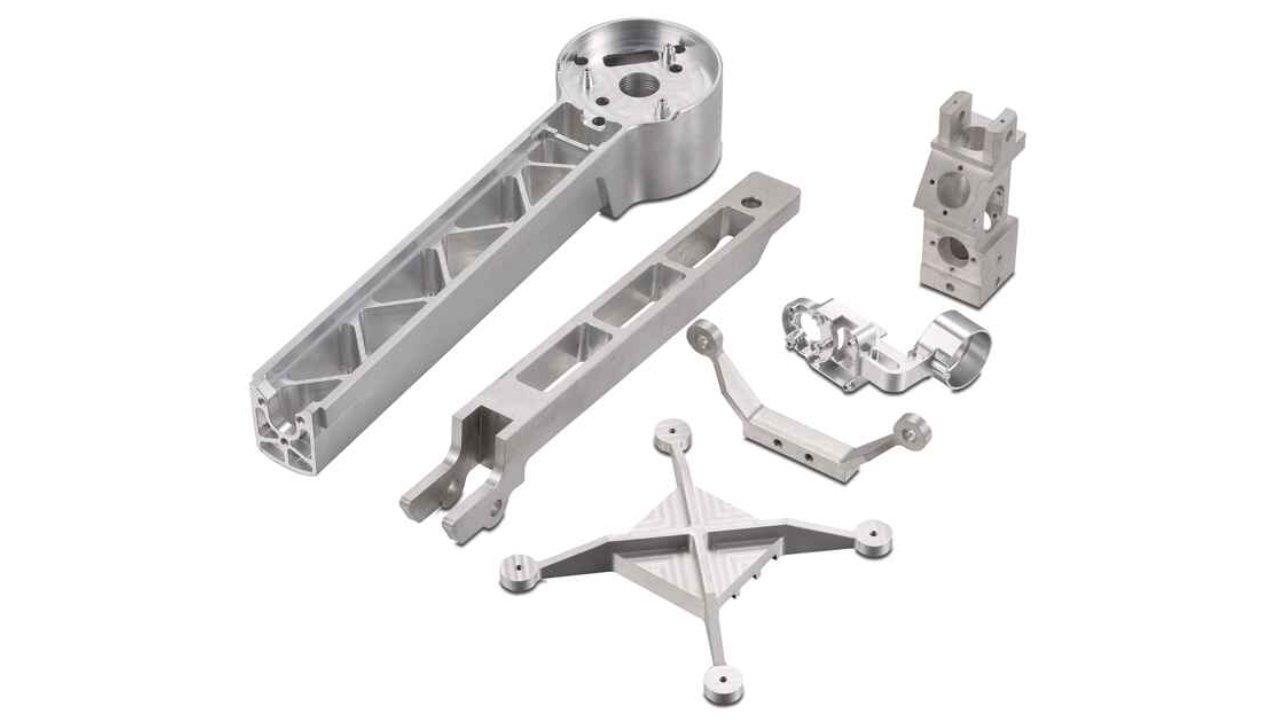

UAV/aerospace hybrid parts	mounts, nodes, adapters	lightweight + stiffness	distortion	5-axis, balanced machining

---

4) Core CNC Processes in Aerospace CNC Machining Services

Aerospace programs rarely use a single process. They use a controlled mix, selected to minimize setups, protect datums, and preserve geometry.

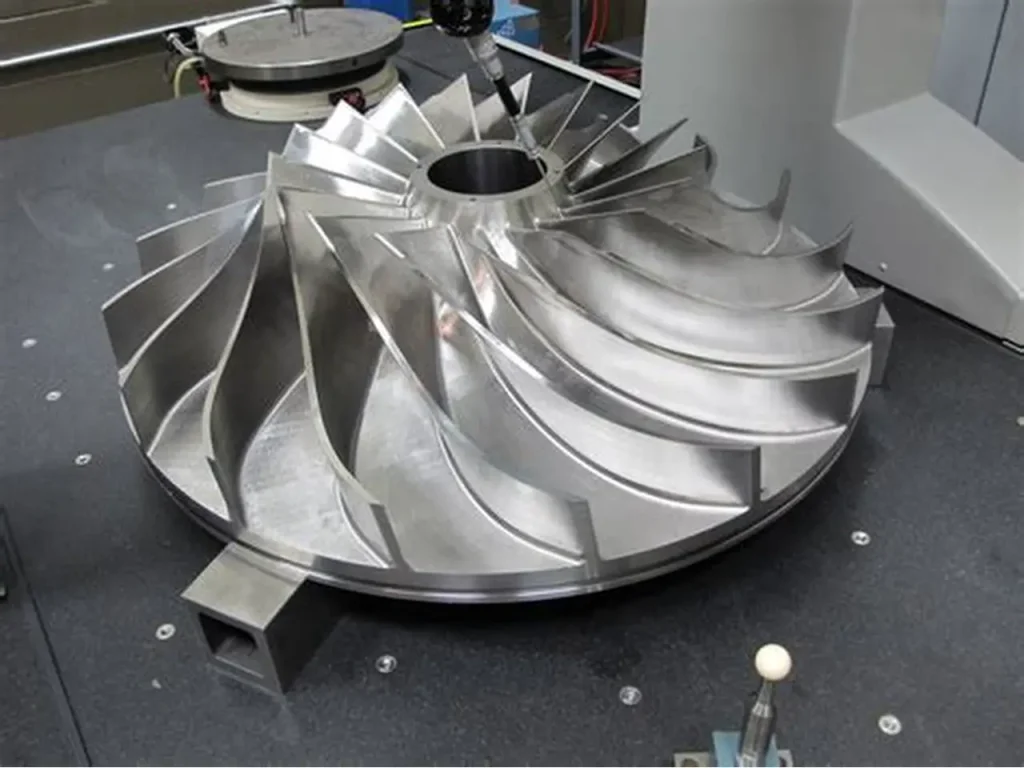

4.1 CNC Milling (3-Axis, 3+2, and 5-Axis)

• 3-axis: efficient for plates, pockets, and straightforward brackets
• 3+2 positional: reduces setups for multi-face components while keeping programming manageable
• 5-axis simultaneous: best for contoured profiles, deep pockets with short tools, and complex compound angles

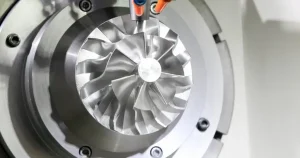

4.2 CNC Turning and Mill-Turn

Turning is essential for features like bearing seats, pilots, coaxial bores, and precision faces. Mill-turn (multi-task) adds milled features without losing concentricity, often reducing error from re-chucking.

Table 3 , Process Selection Matrix (Practical)

Requirement	Best-fit process	Why it’s preferred in Aerospace CNC machining services	Typical inspection focus
Multi-face positional accuracy	3+2 or 5-axis milling	fewer setups, less stack-up	true position, profile
Coaxial bores + milled flats	mill-turn	preserves axis in one clamping	runout, coaxiality
Tight bore geometry	turning + boring	best control of cylindricity	bore size, cylindricity
Large flat sealing land	milling + finishing pass	controls flatness and Ra	flatness, surface finish
Thin-wall pocketing	5-axis / HSM	short tools and stable engagement	wall thickness, warp
Hard material finishing	optimized tooling + controlled parameters	protects surface integrity	roughness, tool marks

---

5) Material Selection and Machinability

Material decisions in aerospace are about performance and predictability. Your machining plan should anticipate tool wear, heat, distortion, and finishing outcomes.

Table 4 , Common Aerospace CNC Materials (Shop-Relevant Notes)

Material	Typical aerospace use	Machining behavior	Key process notes	Common finishing
Aluminum 6061-T6	housings, brackets	very machinable	great for prototypes and production	anodize, chem film
Aluminum 7075-T6	high-strength fittings	strong, stable	avoid sharp corners; notch sensitivity	anodize / hard anodize
Titanium Ti-6Al-4V	weight-critical parts	heat-sensitive, tool wear	manage heat; conservative SFM; sharp tools	passivation, shot peen (if specified)
Stainless 17-4PH	actuators, fittings	strong; condition dependent	plan heat treat sequence	passivation
Stainless 304/316	corrosion resistance	gummy	use sharp tools; manage work hardening	passivation
Inconel-type superalloys	hot-zone parts	difficult; high tool wear	low SFM; rigid setup	special coatings per spec

A key point for Aerospace CNC machining services: the “material” is not only alloy, temper, condition, and certification lot all matter. Aerospace purchasing often requires cert traceability that general machining does not.

---

6) Datum Strategy & GD&T: How Aerospace CNC Machining Services Preserve Function

If the drawing does not clearly define functional datums, suppliers may machine features “correctly” but assemble “wrong.” Aerospace success requires datums that mirror how parts locate in the real assembly.

6.1 Functional datum patterns (typical)

• Primary datum: major mounting plane or axis that defines orientation
• Secondary datum: locating pilot, bore, or face controlling rotation
• Tertiary datum: clocking feature (dowel hole, edge, key)

6.2 GD&T that commonly drives aerospace machining strategy

In aerospace, GD&T often governs the process more than +/- tolerances.

Table 5 , High-Value GD&T Controls and What They Protect

GD&T control	What it really controls	Why it matters	Typical verification
True position	hole pattern location	assembly interchangeability	CMM positional report
Profile of a surface	complex surfaces	aerodynamic/fit interfaces	CMM scanning
Perpendicularity	face-to-axis	load paths and alignment	CMM or indicator setup
Flatness	sealing and mounting	prevents rocking/leaks	CMM/plate + indicator
Circular/total runout	rotating interfaces	vibration and bearing life	indicator or CMM
Concentricity/coaxiality (used carefully)	axis alignment	precision rotating parts	CMM with datum axis

A mature Aerospace CNC machining services provider will ask: “Which features are critical characteristics?”, and then match machining + inspection to those characteristics.

---

7) Process Planning: Setups, Workholding, Probing, and Toolpath Strategy

Aerospace parts often fail not because the machine is inaccurate, but because the plan is fragile. Good process planning eliminates weak links.

7.1 Setup count is an accuracy multiplier

Every reorientation adds risk:

• datum transfer error
• clamping distortion
• re-chucking runout
• operator variation

Reducing setups (via 3+2, 5-axis, or mill-turn) can increase accuracy and reduce cost, one of the rare win-wins in Aerospace CNC machining services.

7.2 Workholding principles for aerospace repeatability

• Locate on functional datums whenever possible
• Support thin areas with nests or adaptive supports
• Use soft jaws designed around stable references
• Avoid point clamping on critical surfaces
• Control torque sequence and clamping forces

7.3 Probing and in-process verification

On complex parts, in-process probing can:

• validate stock location
• detect drift early
• reduce scrap on long cycle-time parts

Table 6 , Common Machining Risks and Proven Countermeasures

Risk	Typical symptom	Root cause	Countermeasure (aerospace-relevant)
Chatter on thin walls	wavy finish, out-of-tolerance	long tool reach, low stiffness	5-axis access, step-down control, support fixtures
Distortion after unclamp	flatness/profile fails	residual stress + uneven removal	staged roughing, balanced machining, finish last
Hole pattern shift	assembly misfit	datum chain mismatch	define functional datums; single-setup drilling
Burrs in ports/passages	leaks or contamination	deburr not validated	controlled deburr, borescope checks, cleaning
Runout after second operation	vibration	re-chucking error	mill-turn or datum-preserving re-chuck method

---

8) Thin Walls, Distortion, and Residual Stress Management

Lightweighting and packaging constraints lead to thin-wall features, deep pockets, and large material removal ratios. These are distortion magnets.

Practical distortion controls used in Aerospace CNC machining services:

• Rough in layers: leave uniform stock for finishing
• Symmetry: remove material from both sides when possible
• Finish critical faces last: when the part is most stable
• Heat management: avoid excessive heat input that moves geometry
• Stress-relief strategy: where specified or necessary

Table 7 , Thin-Wall Guidelines (Manufacturing-Driven)

Design element	Why it distorts	What to change (DFM)	What the machinist can do
deep pocket near edge	wall loses stiffness	add ribs or increase wall	reduce tool stick-out; staged roughing
isolated thin flange	clamps bend it	add support bosses	custom nest fixture
large flat plate	residual stress shows as warp	add stiffening features	machine both sides; controlled clamping
sharp internal corners	stress concentration	add fillets	use larger tools, better finish

---

9) Burr Control, Edge Break Standards, and Surface Integrity

Aerospace assemblies are sensitive to burrs for three reasons:

1. burrs alter stack height and assembly torque behavior
2. burrs become FOD (foreign object debris)
3. burrs create stress risers that reduce fatigue life

9.1 Edge breaks: small detail, huge impact

Instead of “deburr all edges,” aerospace drawings often specify a controlled edge break (for example, a small chamfer or radius). Consistency is the goal.

9.2 Surface roughness and tool marks

Aerospace does not always require mirror finishes, but it does require surfaces appropriate to function:

• sealing lands
• bearing seats
• sliding interfaces
• fatigue-critical regions

Table 8 , Surface Integrity Checklist (Aerospace-Oriented)

Feature	Typical concern	What “good” looks like	How to verify
sealing land	leak paths	uniform finish, no scratches	visual + Ra measurement
bearing seat	fretting/heat	correct Ra, no chatter	bore gage + surface check
fatigue-critical fillet	crack initiation	smooth transitions, no nicks	visual + edge conditioning
threaded hole	torque scatter	clean threads, no burr crown	go/no-go + visual

This is a defining trait of Aerospace CNC machining services: the part is evaluated as a functional interface, not just a set of dimensions.

---

10) Finishing and Special Processes

Finishing is not a cosmetic afterthought. It changes dimensions, conductivity, corrosion performance, wear behavior, and assembly friction.

Table 9 , Common Aerospace Finishes and Precision Considerations

Finish	Why it’s used	Precision impact	Typical planning notes
Anodize (Type II style)	corrosion + color	thickness changes fit	mask tight pilots/bores if needed
Hard anodize (Type III style)	wear resistance	more dimensional growth	avoid coating on press-fits unless designed
Conversion coating (chem film style)	conductivity + corrosion	minimal build	good for grounding surfaces
Passivation (stainless)	corrosion performance	negligible dimension change	requires clean surface condition
Electroless nickel	uniform wear/corrosion	build affects fits	specify thickness; manage tolerances
Heat treat (as specified)	strength changes	distortion risk	consider rough-then-finish strategy

A strong Aerospace CNC machining services workflow integrates finish allowances into the drawing review and process plan, especially for press fits, sealing interfaces, and precision pilots.

---

11) Quality Evidence: AS9102 FAI, CMM Reports, Traceability, and Control Plans

Aerospace quality is evidence-driven. If you cannot prove you made it right, you effectively didn’t.

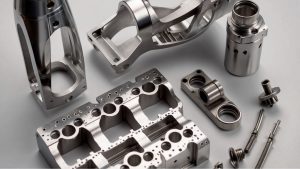

11.1 AS9102 First Article Inspection (FAI)

FAI validates that:

• drawing requirements are understood correctly
• the chosen process can hit critical features
• inspection methods are capable and repeatable

11.2 Traceability and revision control

Even for small production lots, good practice includes:

• tracking material lots to part lots
• recording inspection outcomes
• preventing mixed revisions

Table 10 , “Audit-Ready” Documentation Set (Practical)

Item	What it proves	Best practice frequency
CoC	shipment compliance	every shipment
Material cert	correct alloy/temper	every material lot
FAI (AS9102 when required)	first-off validation	new part or revision
CMM report	GD&T conformance	per lot or per FAI
In-process check sheet	process stability	during production
Nonconformance record	controlled deviations	as needed

This documentation discipline is integral to Aerospace CNC machining services, not optional overhead.

---

12) Inspection & Metrology in Aerospace CNC Machining Services

Measurement systems must match tolerance requirements. If inspection is vague, conformity is vague.

Table 11 , Metrology Tools and Best Uses

Tool / method	Best for	Strength	Limitations
CMM	true position, profile, complex GD&T	high capability	programming time
Height gage + surface plate	flatness, simple geometry	fast + repeatable	limited for complex surfaces
Bore gages	precision bores	sensitive and fast	needs good masters
Thread plug/ring gages	threads	pass/fail clarity	does not show form errors
Optical comparator	profiles, edges	quick visual validation	2D limitations
Surface roughness tester	Ra verification	functional surfaces	must define sampling method

Aerospace inspection is not just “checking.” It is designing a measurement approach that reliably verifies the functional features the design depends on.

---

13) DFM and Cost Drivers (Without Sacrificing Performance)

Cost control in aerospace is less about cheap labor and more about robust design choices that reduce setups, scrap, and inspection burden.

Table 12 , Cost Drivers and DFM Improvements

Cost driver	Why it increases cost	DFM / engineering adjustment
too many critical dimensions	inspection time explodes	tighten only functional features
deep narrow pockets	long tools, slow feeds	open radii, improve access
tight tolerances on non-functional surfaces	forces slow machining	relax tolerances where safe
unnecessary surface finish requirements	extra finishing time	specify Ra only where needed
unclear datums	rework and disputes	define functional datum scheme
post-finish fits not planned	scrap after coating	specify masking/allowances

Good Aerospace CNC machining services partners will provide DFM feedback early, before metal is cut.

---

14) Supplier Evaluation Checklist for Aerospace CNC Machining Services

When choosing a supplier, verify their ability to deliver repeatability and evidence, not just one “nice sample.”

Table 13 , Supplier Checklist (Use This in RFQs)

Category	Question to ask	What a strong answer looks like
Engineering	How do you define datums for manufacturing?	they reference functional datums and setup strategy
Capability	Can you reduce setups with 5-axis/mill-turn?	they propose a stable clamping plan
Inspection	Can you provide CMM reports + FAI?	standard offering, not “special request”
Traceability	How do you track material lots and revisions?	documented lot control
Surface integrity	How do you control burrs/edge breaks?	defined deburr method and verification
Finishing	Do you plan masking and allowances?	finish-aware tolerancing
Corrective action	What happens on a nonconformance?	controlled documentation and containment

---

15) Three Case Studies (Manufacturing Reality, Not Marketing)

The following three examples illustrate typical aerospace manufacturing problems and the process logic used to solve them. Dimensions and customer identifiers are intentionally generalized.

Case Study 1 , 5-Axis Titanium Bracket with Profile Control

Part type: titanium structural bracket with contoured geometry
Key requirement: tight profile-of-surface relative to functional datums, plus consistent edge conditioning

Challenges

• Ti-6Al-4V heat management and tool wear
• profile tolerance sensitive to setup stack-up
• burr control at intersecting features

Aerospace CNC machining services approach

• chose 5-axis to reduce setups and maintain datum integrity
• optimized cutting parameters for thermal control (stable chip load, conservative surface speed)
• staged roughing + finish passes with consistent tool engagement
• defined edge break method to eliminate sharp transitions without washing out geometry
• validated with CMM profile inspection tied to the datum scheme

Outcome

• improved interchangeability across lots
• reduced rework related to profile drift
• more consistent assembly torque behavior due to uniform edge conditioning

---

Case Study 2 , Aluminum Electronics Housing with Sealing Land + Conductive Finish

Part type: aluminum housing with sealing plane, connector cutouts, and internal bosses
Key requirement: flat sealing land and reliable alignment of connector features

Challenges

• thin-wall sections prone to warp
• sealing land surface finish needed to be consistent
• finishing needed to maintain conductivity where required

Aerospace CNC machining services approach

• machined sealing land as a controlled datum; finished late in the process
• used balanced material removal and fixture support to control warp
• planned finishing with functional masking strategy so critical surfaces stayed within fit requirements
• inspection included flatness verification and positional checks for connector interfaces

Outcome

• fewer seal-related issues during assembly and service
• reduced fit variability after finishing
• stable geometry across repeat builds

---

Case Study 3 , 17-4PH Actuation Component Requiring Coaxial Bores

Part type: stainless 17-4PH linkage/clevis-style component with coaxial bores
Key requirement: coaxiality and bore geometry supporting smooth motion and long wear life

Challenges

• heat treat sequence can affect geometry
• bore finish impacts wear and friction
• re-chucking can introduce axis misalignment

Aerospace CNC machining services approach

• planned sequence to manage geometry after strengthening steps (rough → treat → finish where appropriate)
• finished bores in a datum-controlled approach to preserve coaxial alignment
• verified bore geometry with appropriate gaging and CMM alignment strategy
• controlled deburr on bore edges to prevent galling during assembly

Outcome

• improved motion smoothness and reduced early wear
• higher yield in inspection due to stable coaxial control
• more repeatable assembly feel across parts

---

JLYPT homepage : JLYPT

External (Dofollow-style references for credibility)

• ISO standards overview: ISO standards
• ASTM standards library: ASTM standards
• NIST measurement resources: NIST

(These are general technical references; your contract, drawing notes, and purchase order always define the controlling requirements.)

---

Conclusion: What “Good” Looks Like in Aerospace CNC Machining Services

The best Aerospace CNC machining services are not defined by a single tolerance number. They are defined by a system: functional datums that match the assembly, process plans that reduce setup stack-up, machining strategies that protect surface integrity, finishing that is planned, not patched, and inspection evidence that proves conformance with repeatability.

If you’re building or scaling an aerospace or UAV program and want CNC output that is designed to be stable from prototype through production, use this internal link as your next step for capability review and inquiry:
Custom CNC UAV Parts Manufacturer
