Electron Beam PVD Explained: High-Flux Nano-Finishing for Extreme Environments

1. What Is Electron Beam PVD?

Metric Electron Beam PVD Magnetron Sputter Electroplated Ni Thickness Range 5 nm–5 µm 1–5 µm 5–50 µm Deposition Rate 5–50 µm/h 0.5–2 µm/h 5–20 µm/h Hardness (HV) 2 800–3 500 2 500–3 200 700 Max Service Temp 1 000 °C 400 °C 300 °C REACH Status ✅ Compliant Compliant ⚠️ Restricted

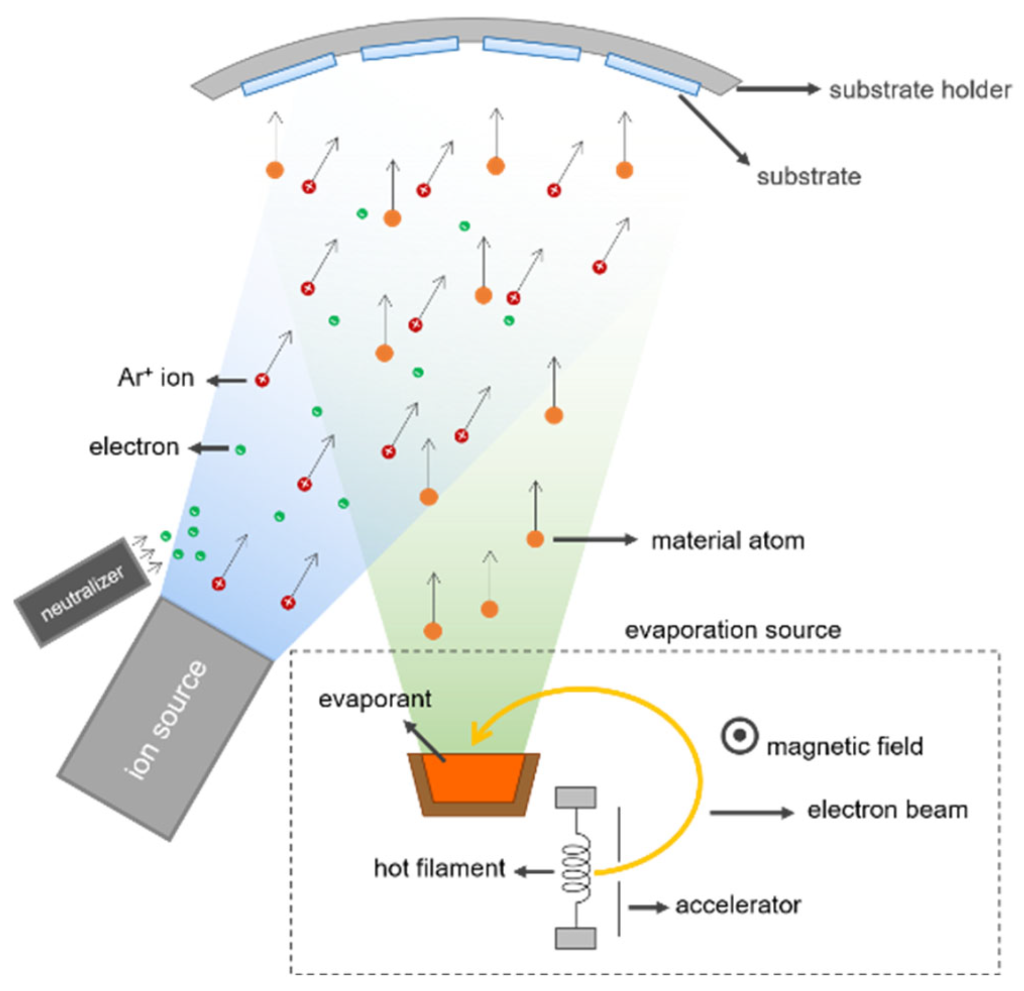

2. The 6-Step e-Beam Process – From Cathode to Coating

Step Vacuum Level Temp (°C) Action KPI 1 Plasma Clean 10⁻³ mbar 25 Ar⁺ removes oxide & oil Contact angle ≤ 8° 2 Pre-heat 10⁻³ mbar 150–500 Substrate heating ΔT ≤ 5 °C 3 E-Beam Ignition 10⁻⁴ mbar 1 500–2 500 Tungsten filament → electron beam Beam current 0.5–5 A 4 Evaporation 10⁻⁴ mbar 1 500–2 500 Solid ingot → vapor cloud Evaporation rate 1–10 g/min 5 Dense Film Growth 10⁻⁴ mbar 150–800 Vapor condenses on substrate ±3 nm uniformity 6 QA & Pack Air 25 CT + nano-indent + salt-spray CpK ≥ 1.67

3. 2024 Performance Matrix – e-Beam vs Other PVD Routes

Method Thickness (µm) Hardness (HV) Salt-Spray (h) Max Temp (°C) Typical Use Electroplated Ni 25 700 48 300 Decorative trim Spray Paint 50 200 48 150 Body panels Filtered Arc ta-C 0.5 3 000 1 000 400 Medical drills HiPIMS Sputter 1 3 200 1 200 1 000 EV motor punches Electron Beam PVD 2 3 500 1 200 1 000 Turbine blades

4. Three 2024 Case Studies

Case 1 – Aerospace Turbine Blade

Client: European OEM, 2024
Problem: Fretting at 850 °C dovetail
e-Beam Stack: TiAlCrN 2 µm + a-C:H 200 nm
Outcome: Wear scar < 5 µm after 1 000 h; maintenance interval doubled

Case 2 – EV Motor Lamination Die

Client: US EV Tier-1, 2024
Problem: 0.35 mm electrical steel sticking at 400 °C
e-Beam Stack: CrAlON 1.8 µm + a-C:H 50 nm
Outcome: Tool life 4× longer, scrap −40 %

Case 3 – Medical Drill

Client: US MedTech startup, 2024
Problem: 316L needs low-friction piercing
e-Beam Stack: ta-C 300 nm + Cr 30 nm adhesion
Outcome: Penetration force −25 %, CE mark granted

5. Global Standards & Sustainability

ISO 9001:2015 / IATF 16949 / ISO 13485
REACH, RoHS, FDA 21 CFR §175.300
Energy: 0.35 kWh per m² (e-beam)
Waste: Zero liquid effluent

6. 7-Day Delivery Timeline

Milestone Lead Time DFM + Quote 24 h Prototype (1–10 pcs) 48 h Validation (CT, salt-spray) 5 days Mass Production 7–10 days Door-to-Door Delivery 12 days total
