MIL-DTL-5541 Class 3 Conductive Chem Film: The Definitive Engineering Guide for CNC Machined Aluminum
Why Electrical Conductivity and Corrosion Protection Must Coexist on the Same Surface
Every aluminum part that carries a ground path, shields electromagnetic interference, or mates with another conductive surface faces a fundamental engineering conflict. Bare aluminum corrodes. Anodized aluminum insulates. The component needs both protection and conductivity—on the same surface, at the same time.
MIL-DTL-5541 Class 3 conductive chem film resolves that conflict. It deposits a chromate conversion coating thin enough to preserve metal-to-metal conductivity while providing meaningful corrosion resistance measured against ASTM B117 salt spray standards. For aerospace avionics housings, medical device enclosures requiring EMI shielding, and automotive EV battery management systems, Class 3 represents the only mil-spec finish that delivers both functions without masking or selective application.
This guide covers the full technical scope of MIL-DTL-5541 Class 3: specification structure, coating chemistry, measurable performance thresholds, alloy-specific behavior, process integration with CNC machining, and real-world case studies from three industries. The data tables, tolerance ranges, and test criteria presented here reflect current revision F of the specification and established industry practice.
If your current project requires MIL-DTL-5541 Class 3 conductive chem film on precision-machined aluminum components, contact JLYPT for a technical consultation and rapid quote. Our engineering team manages the full workflow—from CNC machining to surface treatment to final inspection—under one roof.
Understanding MIL-DTL-5541: Specification Architecture
Specification Scope and Governing Documents
MIL-DTL-5541 (current revision F, dated 11 July 2006, with subsequent amendments) establishes requirements for chemical conversion coatings applied to aluminum and aluminum alloys. The specification replaced the earlier MIL-C-5541 designation. It covers coatings formed by the chemical reaction of chromium compounds with the aluminum substrate, producing an adherent protective film integral to the base metal surface.
The specification operates within a broader framework of military and industry standards:
- MIL-DTL-5541F — Master specification for chemical conversion coatings on aluminum
- MIL-A-8625F — Anodic coatings for aluminum (Type I, II, III anodizing)
- ASTM B117 — Standard practice for operating salt spray (fog) apparatus
- ASTM D1654 — Evaluation of painted or coated specimens subjected to corrosive environments
- AMS 2473 — Chemical treatment for aluminum alloys, general purpose coating
- AMS 2474 — Chemical treatment for aluminum alloys, low electrical resistance coating
AMS 2474 specifically parallels the Class 3 requirements of MIL-DTL-5541 and is frequently called out on aerospace drawings interchangeably.
Type and Class Designations
MIL-DTL-5541 organizes coatings along two axes: Type (chemistry) and Class (function).
| Designation | Definition | Key Characteristic |
|---|---|---|
| Type I | Hexavalent chromium (Cr⁶⁺) compositions | Traditional Alodine 1200S process; gold/iridescent appearance; proven 80+ year track record |
| Type II | Trivalent chromium (Cr³⁺) / non-hexavalent compositions | RoHS-compliant; TCP (trivalent chromium process) chemistry; clear to pale blue appearance |
| Class 1A | Maximum corrosion protection | Thicker coating weight (≥ 40 mg/ft²); higher electrical resistance; used where conductivity is not required |
| Class 3 | Maximum electrical conductivity with corrosion protection | Thinner coating weight; contact resistance ≤ 5,000 microhms; used on grounding surfaces, EMI shields, electrical bonding interfaces |
The critical distinction for engineers: Class 1A optimizes for corrosion resistance at the expense of conductivity. Class 3 optimizes for conductivity while maintaining baseline corrosion resistance. Both classes can be applied using either Type I or Type II chemistry.
Why Class 3 Exists as a Separate Classification
Standard anodizing processes—Type II sulfuric acid anodizing per MIL-A-8625 producing 18–25 µm oxide layers, or Type III hard anodizing producing 25–75 µm layers—create aluminum oxide films with dielectric breakdown voltages ranging from 400 to 1,200 volts. These coatings are electrical insulators by design. A Type III hard anodized surface has a volume resistivity exceeding 10¹⁴ ohm-cm.
This insulating property is desirable for wear surfaces and thermal barriers but catastrophic for:
- Electrical grounding paths requiring < 2.5 milliohms across mating surfaces
- EMI/RFI shielding requiring continuous conductive enclosures per MIL-STD-461
- ESD dissipation requiring controlled surface resistivity
- RF connector interfaces requiring low-impedance bonds to chassis ground
- Bonding jumper attachment points per MIL-B-5087
Class 3 conductive chem film fills the gap between bare aluminum (excellent conductivity, zero corrosion protection) and anodized aluminum (excellent protection, zero conductivity).
MIL-DTL-5541 Class 3 Performance Specifications: Measured Data
Contact Resistance Requirements
The defining performance metric for Class 3 coatings is electrical contact resistance. MIL-DTL-5541F specifies:
Class 3 maximum contact resistance: 5,000 microhms (5.0 milliohms)
This measurement follows a standardized procedure:
- Two coated panels pressed together face-to-face
- Contact area: 1 square inch minimum
- Applied force: 200 psi (1.38 MPa)
- Measurement: Four-wire (Kelvin) method using a milliohmmeter
In practice, well-processed Class 3 coatings on 2024-T3 or 6061-T6 aluminum consistently measure between 800 and 3,000 microhms—well within the 5,000 microhm ceiling.
For comparison:
| Surface Condition | Typical Contact Resistance (microhms) | MIL-DTL-5541 Limit |
|---|---|---|
| Bare aluminum (freshly machined) | 50–200 | N/A |
| Class 3 chem film (Type I, Cr⁶⁺) | 800–2,500 | ≤ 5,000 |
| Class 3 chem film (Type II, Cr³⁺ TCP) | 1,200–3,500 | ≤ 5,000 |
| Class 1A chem film (Type I) | 5,000–50,000+ | Not specified (no limit) |
| Type II anodize (MIL-A-8625, 18 µm) | > 10,000,000 | N/A (insulator) |
| Type III hard anodize (50 µm) | > 100,000,000 | N/A (insulator) |
This table illustrates the orders-of-magnitude difference between Class 3 chem film and anodized surfaces. A Type II anodized surface has roughly 4,000 times the contact resistance of a Class 3 coated surface.
Corrosion Resistance Requirements
MIL-DTL-5541F requires Class 3 coatings to withstand salt spray testing per ASTM B117 with the following minimum durations:
| Class | Minimum Salt Spray Resistance (ASTM B117) | Typical Achieved Performance |
|---|---|---|
| Class 1A | 168 hours (7 days) | 336–500+ hours on 2024-T3 |
| Class 3 | 24 hours | 48–120 hours on 6061-T6; 24–72 hours on 2024-T3 |
The 24-hour salt spray requirement for Class 3 is intentionally lower than Class 1A’s 168-hour threshold. This reflects the thinner coating weight necessary to maintain conductivity. However, 24 hours of salt spray resistance represents a meaningful improvement over bare aluminum, which shows visible white corrosion products (aluminum oxide/hydroxide) within 2–8 hours under ASTM B117 conditions.
For applications requiring both conductivity and extended corrosion protection, engineers typically specify Class 3 chem film as a base layer followed by a conductive topcoat or conformal coating, or they design the assembly with environmental sealing at joint interfaces.
Coating Weight and Thickness
Unlike anodizing, chemical conversion coatings are measured by coating weight rather than thickness, because the film is extremely thin and partially integrated into the substrate surface.
| Parameter | Class 1A | Class 3 |
|---|---|---|
| Minimum coating weight | 40 mg/ft² (430 mg/m²) | No minimum specified |
| Typical coating weight | 60–120 mg/ft² | 10–40 mg/ft² |
| Approximate film thickness | 0.5–2.0 µm | 0.05–0.5 µm |
| Dimensional change | < 0.5 µm per surface | < 0.1 µm per surface |
| Visual appearance (Type I) | Gold to dark gold/brown | Clear to light gold iridescent |
| Visual appearance (Type II) | Clear to pale blue | Clear to very pale blue |
The dimensional impact of Class 3 chem film is negligible—less than 0.1 µm per surface. This makes it the preferred finish for precision CNC machined components with tight dimensional tolerances (±0.01 mm or tighter), where even Type II anodizing’s 10–15 µm buildup per surface would push features out of specification.
Chemistry and Process Mechanics
Type I: Hexavalent Chromium Process
The traditional Class 3 process uses hexavalent chromium (Cr⁶⁺) based solutions. The most widely recognized product is Henkel’s Alodine 1200S (formerly Alodine 1200), though equivalent formulations exist from multiple suppliers.
Process sequence:
- Alkaline clean — Remove oils, coolants, and machining residues (pH 9–12, 60–80°C, 3–10 minutes)
- Rinse — Deionized water, overflow rinse
- Deoxidize / Desmut — Acid etch to remove native oxide and smut from alloying elements (nitric/phosphoric acid blend or chromic acid, ambient to 50°C, 1–5 minutes)
- Rinse — Deionized water
- Chemical film application — Immersion, spray, or brush application of chromate solution (pH 1.3–1.9, 18–35°C, 15–120 seconds for Class 3)
- Rinse — Deionized water, brief immersion
- Dry — Air dry or forced warm air (< 60°C to prevent coating degradation)
For Class 3, the critical process variable is immersion time. Shorter immersion times (15–45 seconds) produce thinner, more conductive films. Longer times (60–180 seconds) build heavier coatings that approach Class 1A performance but sacrifice conductivity.
Process parameter ranges for Class 3:
| Parameter | Minimum | Target | Maximum |
|---|---|---|---|
| Solution temperature | 18°C (65°F) | 25°C (77°F) | 35°C (95°F) |
| Solution pH | 1.3 | 1.6 | 1.9 |
| Immersion time (Class 3) | 10 seconds | 20–30 seconds | 60 seconds |
| Immersion time (Class 1A) | 60 seconds | 120 seconds | 300 seconds |
| Rinse water conductivity | — | < 50 µS/cm | 200 µS/cm |
| Drying temperature | Ambient | 40°C | 60°C |
Type II: Trivalent Chromium Process (TCP)
Driven by RoHS compliance requirements (Directive 2011/65/EU), REACH regulation (EC 1907/2006), and increasing restrictions on hexavalent chromium under OSHA PEL limits (currently 5 µg/m³), the industry has shifted toward trivalent chromium (Cr³⁺) processes.
Major TCP products include:
- SurTec 650 ChromitAL (SurTec)
- Bonderite M-CR T5900 / T5900-S (Henkel, successor to Alodine T5900)
- Chemeon TCP-HF (Chemeon Surface Technology)
- Luster-On TCP (Luster-On Products)
TCP coatings have been qualified to MIL-DTL-5541 Type II and are listed on the QPL (Qualified Products List) maintained by the Defense Logistics Agency. They meet Class 3 contact resistance requirements, though typical values run 20–40% higher than hexavalent equivalents due to differences in film morphology.
Key differences between Type I and Type II for Class 3 applications:
| Property | Type I (Cr⁶⁺) | Type II (Cr³⁺ TCP) |
|---|---|---|
| RoHS / REACH compliant | No | Yes |
| Self-healing capability | Yes (Cr⁶⁺ ions migrate to repair scratches) | Limited (no mobile Cr⁶⁺ reservoir) |
| Typical Class 3 contact resistance | 800–2,500 µΩ | 1,200–3,500 µΩ |
| Salt spray (Class 3) | 48–120 hours | 24–96 hours |
| Color (Class 3 thickness) | Clear to light gold | Clear to very pale blue/iridescent |
| Paint adhesion (as primer) | Excellent | Excellent |
| Shelf life of treated parts | 12+ months with proper storage | 6–12 months (less self-healing) |
| Waste treatment complexity | High (Cr⁶⁺ reduction required) | Moderate (standard heavy metal treatment) |
For new programs without legacy hexavalent chromium specifications locked into the drawing, JLYPT recommends Type II (TCP) chemistry for Class 3 applications. The conductivity performance is well within specification limits, and the regulatory advantages simplify supply chain compliance for customers selling into EU, UK, and California markets.
Alloy-Specific Behavior: Not All Aluminum Responds Equally
The quality and performance of Class 3 chem film vary significantly across aluminum alloy families. Alloying elements—particularly copper, zinc, silicon, and magnesium—alter the electrochemical response of the surface during chromate conversion.
Alloy Response Matrix
| Alloy | Series | Primary Alloying Elements | Class 3 Film Quality | Typical Contact Resistance | Notes |
|---|---|---|---|---|---|
| 1100 | 1xxx | 99%+ Al | Excellent | 600–1,200 µΩ | Best film formation; baseline reference alloy |
| 2024-T3 | 2xxx | Cu 3.8–4.9%, Mg 1.2–1.8% | Good to Fair | 1,500–3,500 µΩ | Copper-rich intermetallics cause uneven film; requires aggressive deoxidize step |
| 5052-H32 | 5xxx | Mg 2.2–2.8% | Good | 1,000–2,200 µΩ | Magnesium promotes uniform film; good corrosion base |
| 6061-T6 | 6xxx | Mg 0.8–1.2%, Si 0.4–0.8% | Excellent | 800–2,000 µΩ | Most common CNC alloy; excellent Class 3 response |
| 6063-T5 | 6xxx | Mg 0.45–0.9%, Si 0.2–0.6% | Excellent | 700–1,800 µΩ | Extrusion alloy; very uniform film |
| 7075-T6 | 7xxx | Zn 5.1–6.1%, Cu 1.2–2.0% | Fair | 2,000–4,500 µΩ | Zinc and copper complicate film chemistry; tighter process control needed |
| A356 (cast) | 3xx.x | Si 6.5–7.5% | Poor to Fair | 3,000–5,000+ µΩ | High silicon content resists conversion; may require modified deoxidizer |
Engineering Implications
For 2024 and 7075 alloys (common in aerospace structural applications), the deoxidize/desmut step is critical. Copper and zinc-rich intermetallic particles (Al₂CuMg, MgZn₂) create galvanic micro-cells on the surface that interfere with uniform chromate film deposition. A chromic-acid-based deoxidizer or a nitric-acid/ammonium-bifluoride blend is typically required to dissolve these intermetallics before conversion coating.
For 6061 and 6063 alloys (the workhorses of CNC machining), Class 3 chem film formation is straightforward. These alloys produce consistent, low-resistance films with standard process chemistry. This is one reason 6061-T6 dominates in applications requiring conductive finishes—the alloy cooperates with the process.
For cast alloys (A356, A380), the high silicon content creates a surface that resists chemical conversion. Silicon particles are cathodic to the aluminum matrix and do not participate in the conversion reaction, leaving uncoated spots that reduce both corrosion resistance and coating uniformity. Modified deoxidizers containing hydrofluoric acid or fluoride salts are often necessary, and contact resistance values may approach the 5,000 µΩ specification limit.

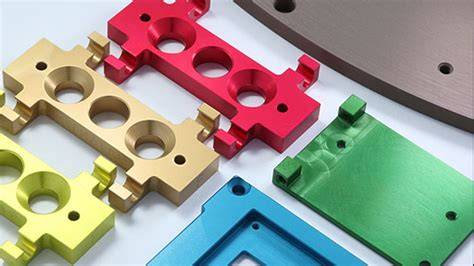

Class 3 Chem Film vs. Alternative Surface Treatments: A Quantitative Comparison
Engineers frequently evaluate Class 3 chem film against competing finishes. The following table provides a direct performance comparison across the parameters that matter most for conductive surface applications.
| Property | MIL-DTL-5541 Class 3 Chem Film | MIL-DTL-5541 Class 1A Chem Film | Type II Anodize (MIL-A-8625) | Type III Hard Anodize (MIL-A-8625) | Electroless Nickel (MIL-C-26074) | Tin Plating (MIL-T-10727) |
|---|---|---|---|---|---|---|
| Contact resistance | ≤ 5,000 µΩ | 5,000–50,000+ µΩ | > 10⁷ µΩ (insulator) | > 10⁸ µΩ (insulator) | 500–2,000 µΩ | 200–800 µΩ |
| Salt spray (ASTM B117) | ≥ 24 hours | ≥ 168 hours | 336–750+ hours | 336–1,000+ hours | 200–500+ hours | 96–200 hours |
| Coating thickness | 0.05–0.5 µm | 0.5–2.0 µm | 15–25 µm | 25–75 µm | 5–50 µm | 5–25 µm |
| Dimensional impact (per surface) | < 0.1 µm | < 0.5 µm | +10–15 µm (50% penetration) | +25–38 µm (50% penetration) | +5–50 µm (additive) | +5–25 µm (additive) |
| Hardness | No significant change | No significant change | 300–400 HV (Knoop) | 400–700 HV (Knoop) | 500–700 HV (as-plated) | 10–20 HV (very soft) |
| Wear resistance | None | None | Moderate | Excellent | Good | Poor |
| Dielectric breakdown | N/A (conductive) | Low (semi-conductive) | 400–600 V | 800–1,200 V | N/A (conductive) | N/A (conductive) |
| Operating temperature | < 175°C continuous | < 175°C | < 350°C | < 350°C | < 400°C (crystallization) | < 200°C |
| RoHS compliant (Type II / TCP) | Yes | Yes | Yes | Yes | Yes (if no lead stabilizer) | Yes |
| Relative cost (per part) | Low ($) | Low ($) | Moderate ($$) | High ($$$) | High ($$$) | Moderate ($$) |
| Paint/primer adhesion | Excellent | Excellent | Good | Fair (requires scuff) | Good (with activation) | Fair |
When Class 3 Chem Film Is the Right Choice
Class 3 chem film is the optimal specification when:
- Electrical conductivity across mating surfaces is a functional requirement (grounding, bonding, EMI shielding)
- Dimensional tolerances are tight (±0.01 mm or less) and coating buildup is unacceptable
- The component will be painted or powder coated and the chem film serves as both corrosion protection and adhesion promoter
- Cost and lead time must be minimized — chem film is a room-temperature immersion process with cycle times under 5 minutes
- The part does not require wear resistance or hardness — chem film provides no meaningful abrasion protection
When Class 3 Chem Film Is Not Sufficient
Consider alternative or supplementary finishes when:
- Salt spray resistance > 168 hours is required without topcoat → Specify Class 1A, or anodize non-conductive surfaces and mask conductive areas
- Surface hardness or abrasion resistance is needed → Type III hard anodize or electroless nickel
- Sustained exposure to temperatures > 175°C → Chromate films degrade; consider ceramic coatings or nickel plating
- Galvanic isolation between dissimilar metals is required → Anodizing provides dielectric separation; chem film does not
Integration with CNC Machining: Process Engineering Considerations
The quality of a Class 3 conductive chem film depends heavily on what happens before the part enters the chemical processing line. Surface condition, machining residues, alloy metallurgy, and part geometry all influence final coating performance.
Surface Finish Requirements
Chemical conversion coatings replicate the underlying surface topography. Unlike anodizing (which smooths micro-roughness slightly due to oxide growth) or electroplating (which can level surface irregularities), chem film deposits conformally on whatever surface it encounters.
Recommended surface finish ranges for Class 3 applications:
| Application | Surface Roughness (Ra) | Rationale |
|---|---|---|
| EMI shielding mating surfaces | 0.8–1.6 µm (32–63 µin) | Moderate roughness increases true contact area at gasket interfaces |
| Electrical bonding / grounding pads | 0.4–1.6 µm (16–63 µin) | Smooth enough for low-resistance contact, rough enough for reliable coating adhesion |
| General corrosion protection | 0.8–3.2 µm (32–125 µin) | Standard machined finish; no special requirements |
| Painted surfaces (chem film as primer) | 1.6–3.2 µm (63–125 µin) | Slightly rougher surface improves paint mechanical adhesion |
Machining Residue Management
Residual cutting fluids, coolants, and machining oils are the single most common cause of Class 3 chem film failure. These contaminants create hydrophobic patches on the aluminum surface that resist wetting by the aqueous chromate solution, resulting in:
- Bare spots with no conversion coating
- Uneven film color (blotchy appearance)
- Elevated contact resistance in contaminated areas
- Premature corrosion at uncoated sites
JLYPT’s pre-treatment protocol for Class 3 chem film:
- Solvent vapor degrease (if heavy oil contamination) — removes bulk machining fluids
- Alkaline soak clean — saponifies remaining oils, pH 9.5–11.5, 60°C, 5–10 minutes
- Alkaline etch (optional) — light etch to remove embedded contaminants, 30–60 seconds
- Acid deoxidize/desmut — removes native oxide and alloy smut, specific chemistry matched to alloy
- DI water rinse — conductivity < 50 µS/cm between each step

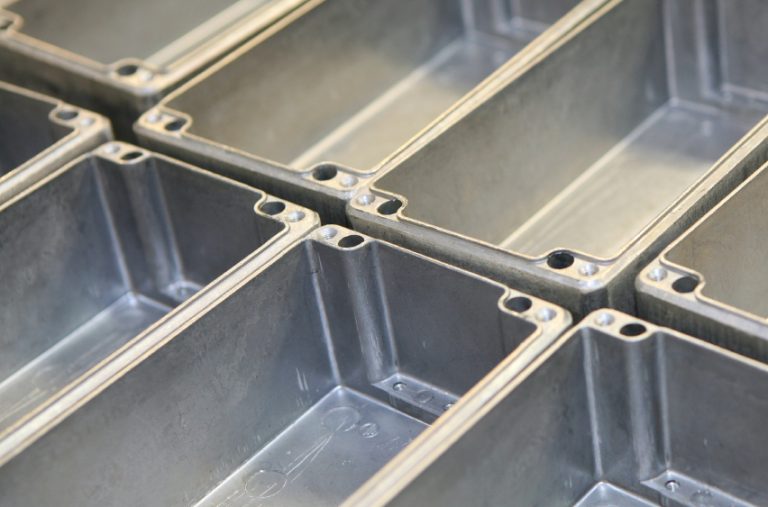

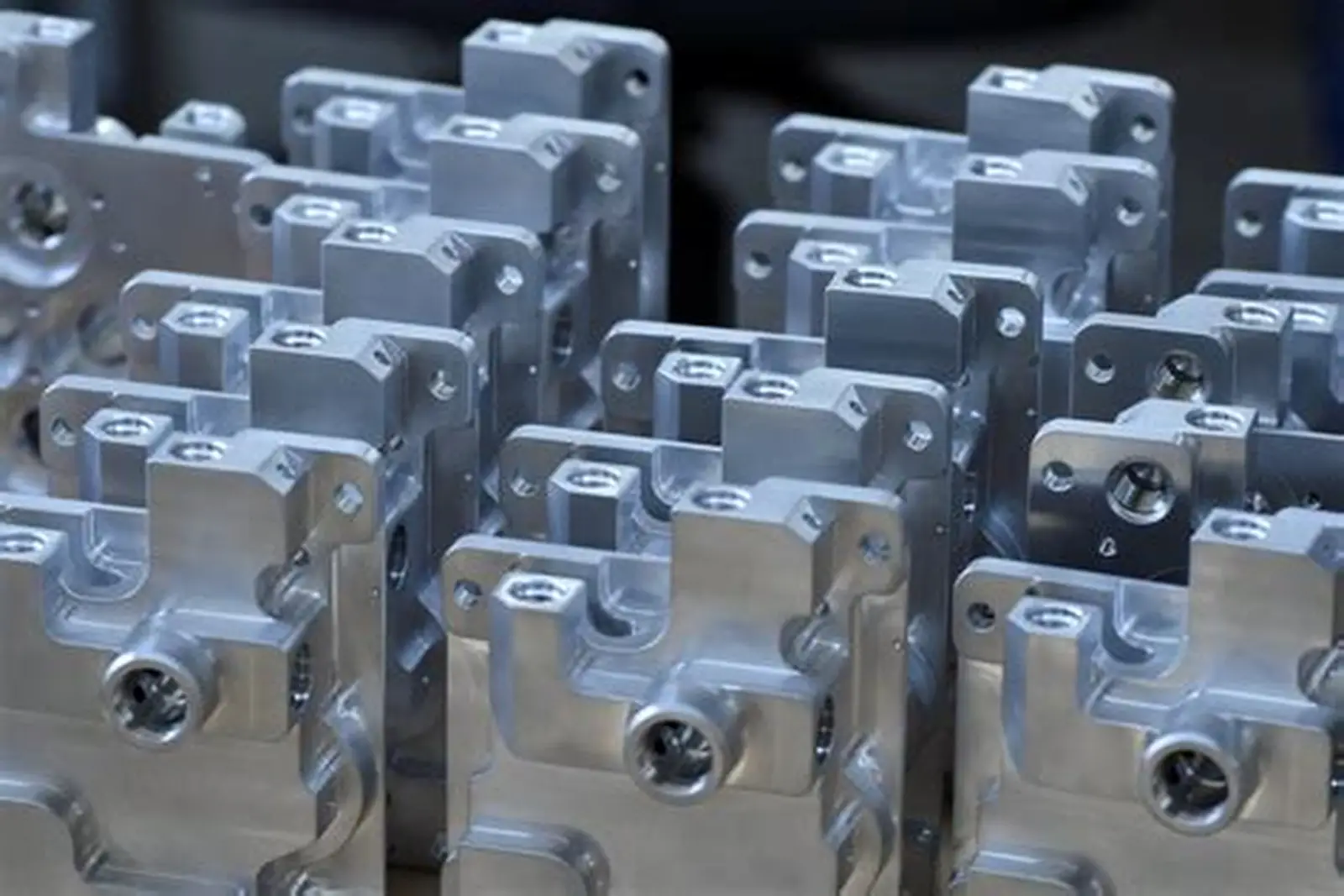

Dimensional Tolerance Preservation
One of Class 3 chem film’s most significant advantages for precision CNC components is its negligible dimensional impact. Consider a typical aerospace avionics housing machined from 6061-T6:
- Housing wall thickness tolerance: 2.00 ± 0.05 mm
- Mating surface flatness: 0.02 mm over 150 mm
- Connector pocket position tolerance: ±0.025 mm true position
Class 3 chem film adds less than 0.1 µm (0.0001 mm) per surface. This is three orders of magnitude below the tightest tolerance on the part. The coating is dimensionally invisible.
By contrast, Type II anodizing would add 10–15 µm per surface (with approximately 50% penetration into the substrate and 50% buildup above the original surface). On a 2.00 mm wall, this could shift the dimension by 0.010–0.015 mm per side—consuming 20–30% of the total tolerance band.
For parts requiring both anodized wear surfaces and conductive mating surfaces, JLYPT employs selective masking: anodize the wear areas, mask them, then apply Class 3 chem film to the conductive areas. This dual-finish approach is common on complex aerospace and defense assemblies.
Need precision CNC machining with integrated MIL-DTL-5541 Class 3 surface treatment? Request a quote from JLYPT and receive DFM feedback within 24 hours.
Quality Assurance and Testing Requirements
Acceptance Testing per MIL-DTL-5541F
The specification mandates specific tests for production lot acceptance. For Class 3 coatings, the following tests apply:
1. Electrical Contact Resistance (Mandatory for Class 3)
- Method: Per MIL-DTL-5541F, paragraph 4.5.3
- Equipment: Low-resistance ohmmeter (milliohmmeter), four-wire Kelvin configuration
- Specimen: Two coated test panels, 3″ × 6″ minimum, same alloy and temper as production parts
- Procedure: Panels pressed face-to-face at 200 psi; resistance measured across the joint
- Acceptance criterion: ≤ 5,000 microhms
- Frequency: Each process lot or per contract specification
2. Corrosion Resistance (Salt Spray)
- Method: ASTM B117
- Duration: Minimum 24 hours for Class 3
- Evaluation: Per MIL-DTL-5541F, paragraph 4.5.4; no more than 5 isolated spots or pits of corrosion, none larger than 1/32 inch diameter, in the test area
- Specimen: Coated test panels, scribed or unscribed per contract requirements
3. Coating Presence / Continuity
- Method: Visual inspection under adequate lighting
- Acceptance: Continuous, uniform coating with characteristic color for the Type/Class combination
- For Type I Class 3: Clear to light gold iridescent (lighter than Class 1A)
- For Type II Class 3: Clear to very pale blue, may be nearly invisible on some alloys
4. Adhesion
- Method: Tape test per ASTM D3359 (cross-cut tape test, Method B)
- Acceptance: Classification 4B or better (< 5% area removed)
- Note: Adhesion testing is more relevant when chem film serves as a paint primer; for standalone conductive applications, coating continuity and contact resistance are the primary acceptance criteria
5. Coating Weight (Optional for Class 3)
- Method: Dissolve coating in concentrated nitric acid; weigh panel before and after
- Note: MIL-DTL-5541F does not specify a minimum coating weight for Class 3 (unlike Class 1A’s 40 mg/ft² minimum). However, some customer specifications add a minimum weight requirement (typically 10–20 mg/ft²) to ensure adequate film presence.
Documentation and Traceability
JLYPT maintains full traceability for MIL-DTL-5541 processing:
- Chemical batch records — Solution concentration, pH, temperature, and immersion time for each production lot
- Test panel results — Contact resistance measurements and salt spray test reports archived per lot
- Material certifications — Chemical supplier certifications confirming QPL-listed products
- Certificate of Conformance (CoC) — Issued with each shipment, referencing the applicable specification revision, Type, and Class
Application Case Study #1: Aerospace — Avionics LRU Chassis for a Regional Jet Platform
The Challenge
A Tier 1 avionics integrator contracted JLYPT to machine and finish 340 line-replaceable unit (LRU) chassis assemblies for a new regional jet communication system. The chassis, machined from 6061-T651 plate, serves as both the structural enclosure and the primary EMI shield for sensitive radio frequency (RF) receiver modules operating in the 960–1,215 MHz L-band.
The engineering requirements created a direct conflict:
- EMI shielding effectiveness ≥ 60 dB at 1 GHz per MIL-STD-461G RE102 — requiring continuous, low-impedance electrical contact between the chassis base, cover, and all connector interfaces
- Corrosion resistance sufficient for 20-year aircraft service life in humidity-cycled avionics bays (MIL-STD-810H, Method 507.6)
- Dimensional tolerances of ±0.025 mm true position on 14 connector mounting holes and ±0.013 mm on the mating flange flatness over 280 mm
- Weight budget precluding the use of conductive gaskets or additional shielding layers
The customer’s initial drawing specified Type II anodize (MIL-A-8625) on all surfaces with “conductive areas per detail.” This would have required masking 38 separate features per chassis—every connector interface, every cover screw boss, every grounding pad, and the entire mating flange perimeter. At production volume, masking labor alone was estimated at 45 minutes per unit, adding $85–120 per chassis in finishing cost and introducing significant risk of masking errors.
The Solution
JLYPT’s process engineering team proposed an alternative finish scheme:
- MIL-DTL-5541 Type I, Class 3 conductive chem film on all surfaces
- Supplemental MIL-PRF-81352 conductive elastomer gasket in the cover-to-base joint (already part of the EMI design)
- Chromate-sealed fastener interfaces using Alodine 1200S touch-up pen on any areas disturbed during final assembly
This approach eliminated all masking operations. The entire chassis received a uniform Class 3 coating in a single immersion cycle.
Measured Results
| Parameter | Requirement | Achieved |
|---|---|---|
| Contact resistance (flange joint) | ≤ 5,000 µΩ | 1,100–1,800 µΩ |
| EMI shielding effectiveness (1 GHz) | ≥ 60 dB | 72–78 dB |
| Salt spray (ASTM B117) | ≥ 24 hours | 96 hours (no corrosion in test area) |
| Connector hole true position | ±0.025 mm | ±0.012 mm (Cpk 1.8) |
| Flange flatness | ≤ 0.013 mm / 280 mm | 0.006–0.009 mm |
| Unit finishing cost | Baseline (anodize + mask) | 62% reduction vs. baseline |
| Finishing lead time | 5–7 days (anodize + mask) | 1–2 days (chem film) |
The EMI shielding effectiveness exceeded the 60 dB requirement by 12–18 dB, directly attributable to the low contact resistance of the Class 3 chem film at all chassis joints. The customer approved the finish change through their engineering change order (ECO) process and adopted Class 3 chem film as the standard finish for all subsequent LRU chassis programs.
Application Case Study #2: Medical Devices — Portable Surgical Navigation System Enclosure
The Challenge
A medical device OEM developing a portable surgical navigation system required a CNC machined aluminum enclosure that met three simultaneous requirements:
- EMC compliance per IEC 60601-1-2:2014 (4th edition) — the device must not emit electromagnetic interference that could affect other operating room equipment, and must be immune to external EMI at levels specified for professional healthcare environments
- Biocompatibility surface — the enclosure exterior contacts the sterile field boundary; surface must be cleanable with hospital-grade disinfectants (quaternary ammonium compounds, accelerated hydrogen peroxide, sodium hypochlorite 0.5%) without degradation
- Electrical grounding continuity — the enclosure serves as the protective earth ground path per IEC 60601-1 clause 8.6; ground impedance from any point on the enclosure to the power inlet ground pin must be ≤ 100 milliohms
The enclosure was machined from 5052-H32 aluminum (selected for its corrosion resistance and formability for the integrated sheet metal cover). The customer initially considered Type II anodize with selective masking for grounding points, but the 14 grounding locations (including internal PCB standoffs, external connector shells, and equipotential bonding studs) made masking impractical for a production volume of 200 units per year.
The Solution
JLYPT recommended:
- MIL-DTL-5541 Type II (TCP), Class 3 on all machined aluminum surfaces — providing both conductivity and RoHS compliance required for CE marking
- Passivation of stainless steel hardware per ASTM A967 / Citric acid method — for all 316L SS screws and inserts contacting the enclosure
- Surface finish Ra 1.2 µm on exterior surfaces — smooth enough for effective disinfectant wipe-down, rough enough for reliable chem film adhesion
The TCP chemistry (SurTec 650) was selected specifically because:
- No hexavalent chromium → compliant with EU RoHS and REACH for medical devices sold in European markets
- Clear appearance → aesthetically acceptable without painting for a clinical environment
- Validated cleaning resistance → TCP films withstand > 1,000 cycles of quaternary ammonium wipe-down without measurable increase in contact resistance
Measured Results
| Parameter | Requirement | Achieved |
|---|---|---|
| Ground impedance (any point to PE) | ≤ 100 mΩ | 8–22 mΩ |
| Contact resistance (cover joint) | ≤ 5,000 µΩ (per MIL-DTL-5541) | 1,400–2,600 µΩ |
| EMC radiated emissions (30–1,000 MHz) | Per IEC 60601-1-2 Class A limits | Passed with 8–14 dB margin |
| Salt spray (ASTM B117) | ≥ 24 hours | 72 hours |
| Disinfectant resistance (1,000 cycles) | No visible degradation, no conductivity loss | Contact resistance increase < 15% |
| RoHS compliance | Required for CE marking | Fully compliant (Type II TCP, no Cr⁶⁺) |
The device passed EMC testing at a NVLAP-accredited test laboratory on the first submission—a result the customer’s EMC engineer attributed directly to the continuous conductive enclosure enabled by Class 3 chem film. Previous product generations using painted enclosures with selective grounding had required 2–3 EMC test iterations to achieve compliance.
Developing a medical device or other EMC-sensitive product that requires conductive aluminum surfaces? Talk to JLYPT’s engineering team about integrating Class 3 chem film into your CNC machining program.
Application Case Study #3: Automotive — EV Battery Management System (BMS) Housing
The Challenge
An electric vehicle battery pack manufacturer needed a CNC machined housing for a next-generation battery management system (BMS) module. The housing, machined from die-cast A380 aluminum (later switched to CNC-machined 6061-T6 at JLYPT’s recommendation), served multiple functions:
- EMI shield for the BMS control board, which manages cell balancing, state-of-charge estimation, and CAN bus communication with the vehicle’s main ECU
- Thermal interface between the BMS power FETs and the battery pack’s liquid cooling plate — requiring bare aluminum or a thermally conductive surface at the mounting interface
- Structural mount bolted directly to the battery module frame using M5 fasteners with specified torque values
- Corrosion protection for a 15-year / 150,000-mile vehicle service life in environments ranging from -40°C to +85°C, with exposure to road salt, humidity, and battery electrolyte vapor (LiPF₆ in organic carbonate solvents)
The original A380 die-cast housing presented two problems:
- Porosity — A380 castings contained subsurface gas porosity that was exposed during machining of the mating surfaces, creating leak paths and coating defects
- Poor chem film response — A380’s high silicon content (7.5–9.5% Si) produced inconsistent conversion coatings with contact resistance values frequently exceeding 4,500 µΩ, dangerously close to the 5,000 µΩ specification limit
The Solution
JLYPT proposed a complete redesign of the manufacturing approach:
- Material change: A380 die-cast → 6061-T6 CNC machined — eliminated porosity, improved dimensional consistency, and dramatically improved chem film response
- MIL-DTL-5541 Type II (TCP), Class 3 on all surfaces — provided conductivity for EMI shielding and grounding while meeting the automaker’s global RoHS compliance requirement
- Selective thermal interface pad area left uncoated (masked during chem film) — the 40 mm × 60 mm thermal mounting pad was left as bare machined aluminum (Ra 0.8 µm) to maximize thermal conductivity to the cooling plate, then protected with thermal interface material (TIM) at assembly
- Supplemental environmental sealing — RTV silicone gasket at the cover-to-base joint, rated for electrolyte vapor resistance
The material change from A380 to 6061-T6 increased raw material cost by approximately 35% but reduced total part cost by 18% when accounting for:
- Elimination of casting tooling amortization ($45,000 die cost)
- Elimination of casting defect scrap (12% rejection rate on A380 castings)
- Reduced machining time (6061-T6 machines faster than A380 with better surface finish)
- Consistent chem film results (zero rejections for contact resistance on 6061-T6 vs. 8% on A380)
Measured Results
| Parameter | Requirement | A380 Die-Cast (Original) | 6061-T6 CNC (JLYPT Solution) |
|---|---|---|---|
| Contact resistance | ≤ 5,000 µΩ | 3,200–5,200 µΩ (8% OOL) | 900–1,600 µΩ (0% OOL) |
| Salt spray (ASTM B117) | ≥ 24 hours | 24–36 hours | 72–96 hours |
| Porosity-related scrap | < 2% | 12% | 0% |
| CNC machining cycle time | — | 18 minutes | 14 minutes |
| Total unit cost (machined + finished) | Baseline | $42.80 | $35.10 (−18%) |
| EMI shielding (150 MHz) | ≥ 40 dB | 35–48 dB (inconsistent) | 55–62 dB (consistent) |
| Thermal resistance (mount pad) | ≤ 0.5°C/W | 0.4–0.8°C/W (porosity-dependent) | 0.3°C/W (consistent) |
The switch to 6061-T6 with Class 3 TCP chem film resolved every performance issue simultaneously. The BMS housing passed the automaker’s 1,000-hour cyclic corrosion test (SAE J2334) and 500-hour salt spray test when combined with the RTV gasket seal. Production has been running at 2,400 units per quarter for 18 months with zero chem film rejections.
Frequently Asked Questions: MIL-DTL-5541 Class 3 in Practice
Can Class 3 chem film be applied over previously anodized surfaces?
No. Chemical conversion coatings require direct contact with the aluminum substrate to form the chromate/aluminum reaction layer. An anodized surface (aluminum oxide) will not react with the chromate solution. If a previously anodized part needs conductive areas, the anodize must be chemically stripped (using sodium hydroxide or phosphoric/chromic acid) from those areas before chem film application. JLYPT can perform selective strip-and-recoat operations, though this adds process steps and cost.
Does Class 3 chem film affect the fatigue life of aluminum components?
No measurable effect. Unlike anodizing—which can reduce fatigue life by 15–35% on high-strength alloys (2024, 7075) due to micro-cracking in the oxide layer—chemical conversion coatings do not create stress risers or alter the substrate microstructure. MIL-DTL-5541F does not impose any fatigue debit for Class 3 coatings, and they are routinely applied to fatigue-critical aerospace structure.
What is the shelf life of Class 3 chem film coated parts?
Per MIL-DTL-5541F, coated parts must meet specification requirements at the time of acceptance testing. In practice:
- Type I (Cr⁶⁺) Class 3: 12–24 months in controlled storage (< 50% RH, 15–35°C, no direct contact with dissimilar metals or corrosive atmospheres). The self-healing property of hexavalent chromium extends effective protection.
- Type II (Cr³⁺ TCP) Class 3: 6–12 months in controlled storage. Without mobile Cr⁶⁺ ions, the self-healing mechanism is absent, and the thinner Class 3 film is more susceptible to handling damage over time.
Parts stored beyond these periods should be re-tested for contact resistance before use in critical assemblies.
Can Class 3 chem film be touched up or repaired in the field?
Yes. MIL-DTL-5541 allows touch-up application by brush or swab using the same qualified chemical solution. Henkel’s Alodine 1200S and Alodine T5900 are both available in small-quantity containers suitable for field repair. The touched-up area must develop the characteristic coating color and should be tested for contact resistance if the application is electrically critical.
Is Class 3 chem film compatible with adhesive bonding?
Yes, and it is frequently specified as the surface preparation for structural adhesive bonding of aluminum per ASTM D2651 (preparation of metal surfaces for adhesive bonding). Class 3 chem film provides:
- A chemically active surface that promotes adhesive wetting
- Corrosion protection of the bond interface against moisture intrusion
- Consistent surface energy for repeatable bond strength
Lap shear strengths of 25–35 MPa are routinely achieved with epoxy film adhesives (FM 73, EA 9696) over Class 3 chem film on 2024-T3 and 6061-T6 substrates.
How does Class 3 chem film compare to conductive anodize (MIL-A-8625 Type IC)?
Type IC anodize is a relatively uncommon specification that produces a thin (2–7 µm) chromic acid anodize film with lower electrical resistance than Type II or III. However:
- Type IC still has significantly higher resistance than Class 3 chem film (typically 10,000–100,000 µΩ vs. ≤ 5,000 µΩ)
- Type IC uses hexavalent chromium in the anodizing bath (environmental/regulatory concerns)
- Type IC requires voltage-controlled anodizing equipment; chem film requires only immersion tanks
- Type IC provides better corrosion resistance (168+ hours salt spray) but at higher cost and complexity
For applications where contact resistance ≤ 5,000 µΩ is a hard requirement, Class 3 chem film remains the standard specification.
Cost Structure and Lead Time Benchmarks
Understanding the economics of Class 3 chem film helps procurement teams and program managers plan budgets accurately.
Typical Pricing Factors
| Cost Driver | Impact on Unit Price | Notes |
|---|---|---|
| Part size (surface area) | Low–Moderate | Chem film is a batch immersion process; larger parts require larger tanks but processing time is similar |
| Alloy type | Low | 2xxx and 7xxx alloys require more aggressive pre-treatment, adding 5–15% to processing cost |
| Masking requirements | High | Each masked feature adds 0.50–3.00 in labor; complex masking can exceed the coating cost itself |
| Volume | Moderate | Batch processing favors larger lot sizes; typical batch = 20–100 small parts or 5–20 large parts |
| Type I vs. Type II chemistry | Low | TCP (Type II) chemicals cost more per gallon but waste treatment is cheaper; net effect is roughly neutral |
| Testing requirements | Moderate | Contact resistance testing adds 15–50perlot;saltspraytestingadds75–200 per lot (96-hour minimum test cycle) |
| Certification level | Low–Moderate | Standard CoC is included; AS9100-level documentation, NADCAP audit compliance, or customer-specific QMS requirements add administrative cost |
Lead Time Benchmarks
| Scenario | Typical Lead Time (from receipt of machined parts) |
|---|---|
| Class 3 chem film only, standard lot (20–100 parts) | 1–3 business days |
| Class 3 chem film with selective masking | 2–5 business days |
| Dual finish (anodize + mask + chem film) | 5–8 business days |
| Full service: CNC machining + deburr + Class 3 chem film + inspection | 7–15 business days (depending on machining complexity) |
JLYPT’s vertically integrated facility—CNC machining, surface treatment, inspection, and packaging under one roof—eliminates the transit time and coordination overhead of shipping parts between a machine shop and a separate finishing house. This integration typically saves 3–5 business days compared to a split-vendor approach.
Specification Callout Guide: How to Specify Class 3 Chem Film on Your Drawing
Correct specification callout prevents ambiguity and ensures the finishing vendor applies exactly what the design requires. The following format is recommended per MIL-DTL-5541F:
Standard Callout Format
CHEMICAL FILM PER MIL-DTL-5541, TYPE [I or II], CLASS 3
Examples
For hexavalent chromium, conductive:
CHEMICAL FILM PER MIL-DTL-5541F, TYPE I, CLASS 3
For trivalent chromium (TCP), conductive:
CHEMICAL FILM PER MIL-DTL-5541F, TYPE II, CLASS 3
With AMS cross-reference (common on aerospace drawings):
CHEMICAL TREATMENT PER AMS 2474 (LOW ELECTRICAL RESISTANCE)
With additional requirements:
CHEMICAL FILM PER MIL-DTL-5541F, TYPE II, CLASS 3 CONTACT RESISTANCE: ≤ 3,000 MICROHMS (TIGHTER THAN SPEC) SALT SPRAY: ≥ 48 HOURS PER ASTM B117 APPLICABLE SURFACES: ALL SURFACES UNLESS OTHERWISE NOTED
Common Drawing Notes for Dual-Finish Parts
NOTES:
1. ANODIZE PER MIL-A-8625F, TYPE II, CLASS 2, BLACK DYE,
0.018-0.025 mm THICK, ON SURFACES MARKED "A"
2. CHEMICAL FILM PER MIL-DTL-5541F, TYPE II, CLASS 3
ON SURFACES MARKED "C"
3. MASK SURFACES MARKED "C" DURING ANODIZING OPERATION
4. MASK SURFACES MARKED "A" DURING CHEMICAL FILM OPERATION
5. BARE ALUMINUM (NO COATING) ON SURFACES MARKED "N"Environmental and Regulatory Considerations
Hexavalent Chromium Phase-Out Timeline
The global regulatory landscape is progressively restricting hexavalent chromium (Cr⁶⁺):
- EU RoHS (2011/65/EU): Exemption 7(c)-I for Cr⁶⁺ in corrosion protection coatings expired for certain categories; medical devices (Category 8) and monitoring instruments (Category 9) now covered
- EU REACH (EC 1907/2006): Chromium trioxide (CrO₃) listed on Annex XIV (Authorization List); sunset date passed September 2017; continued use requires specific authorization
- US DoD: NDAA provisions and DoD Instruction 4210.15 require evaluation of Cr⁶⁺ alternatives; however, MIL-DTL-5541 Type I remains qualified and widely used for defense applications where no qualified alternative meets performance requirements
- California Proposition 65: Hexavalent chromium compounds listed as known carcinogens; worker exposure limits enforced by Cal/OSHA at 2.5 µg/m³ (stricter than federal OSHA)
JLYPT’s Position
JLYPT maintains both Type I (Cr⁶⁺) and Type II (TCP) processing capability:
- Type I lines operate under full OSHA hexavalent chromium compliance (engineering controls, exposure monitoring, medical surveillance) for customers with legacy specifications requiring Cr⁶⁺
- Type II (TCP) lines are the default recommendation for new programs, providing RoHS/REACH compliance without specification waivers
- Transition support: JLYPT’s process engineering team assists customers in qualifying Type II replacements for existing Type I callouts, including generating comparative test data (contact resistance, salt spray, adhesion) for engineering change documentation
Conclusion: Class 3 Chem Film as a Strategic Finishing Decision
MIL-DTL-5541 Class 3 conductive chem film occupies a specific and critical niche in the surface treatment landscape. It is not a general-purpose coating. It does not provide wear resistance, hardness, or extended standalone corrosion protection. What it does—better than any alternative finish—is preserve the electrical conductivity of aluminum surfaces while providing baseline corrosion protection and zero dimensional impact.
For CNC machined aluminum components that must ground, shield, bond, or conduct, Class 3 chem film is not merely an option. It is the specification-driven answer to a real engineering problem that no other single finish solves as effectively or economically.
The three case studies in this guide demonstrate the pattern: when engineers stop treating surface finish as an afterthought and instead integrate Class 3 chem film into the design-for-manufacturing process from the beginning, the results are measurable—lower contact resistance, better EMI shielding, reduced scrap, shorter lead times, and lower total cost.
JLYPT provides the full chain of capability required to deliver these results: precision CNC machining of aluminum alloys (2024, 5052, 6061, 6063, 7075), in-house MIL-DTL-5541 processing (Type I and Type II, Class 1A and Class 3), selective masking for dual-finish parts, and quality documentation to aerospace and defense standards.
Ready to move forward? Contact JLYPT today for a detailed quote on CNC machined aluminum parts with MIL-DTL-5541 Class 3 conductive chem film. Send your drawings, and our engineering team will return a complete proposal—including DFM review, finish recommendations, and pricing—within 24–48 hours.
