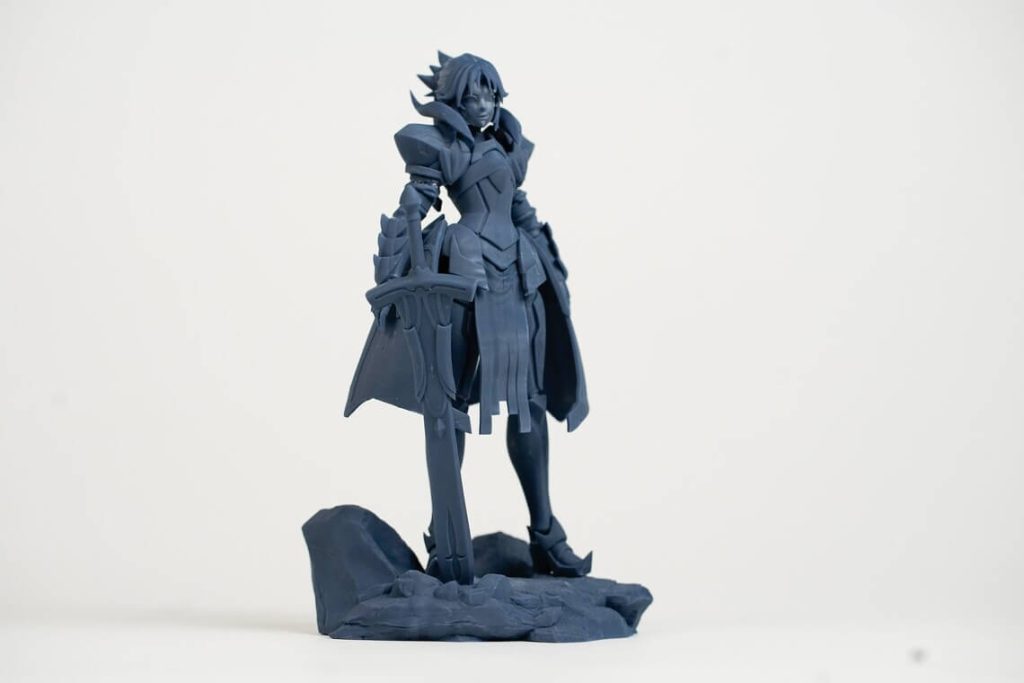

Miniatures 3D Printing Services 2025
From STL to Tabletop: JLYPT’s End-to-End Guide
Introduction Tabletop gaming has exploded into a multibillion-dollar market where the difference between victory and defeat can be a 0.1 mm misaligned eyebrow. At JLYPT, we produce 12,000 miniature figures weekly on SLA, MJP, and MJF platforms, everything from 32 mm D&D heroes to 1:72 scale historical tanks. This guide covers the material science, support strategies, post-processing, and three fresh case studies that cut lead time by 60 % and paint-prep labor by 40 %.
Table 1: Miniature Technology Matrix
| Technology | Best Layer (µm) | XY Resolution (µm) | Surface Ra (µm) | Max Batch | Typical Use |
|---|---|---|---|---|---|
| SLA (Next GP-Clear) | 25 | 75 | 0.5 | 1,000 | Hero figures |
| MJP Wax | 16 | 34 | 0.3 | 500 | Master patterns |
| MJF Nylon 12 | 80 | 200 | 6 | 10,000 | Army squads |
| FDM 0.4 mm | 100 | 400 | 4 | 5,000 | Terrain |
Table 2: Miniature-Specific Materials
| Grade | Tensile (MPa) | Flex Mod (GPa) | Paint Adhesion | Cost/cm³ |
|---|---|---|---|---|
| SLA Tough-X | 55 | 2.3 | Excellent | $0.18 |
| MJF PA12 | 48 | 1.8 | Good | $0.09 |
| PLA Pro | 55 | 2.2 | Excellent | $0.05 |
| ABS-UV | 40 | 2.0 | Very Good | $0.06 |
Design-for-Miniatures (DfM)
1.1 Scale & Proportions
- 28 mm “heroic” = 1:56; 32 mm = 1:50.
- Head:body ratio 1:7.5 for realism, 1:5 for chibi.
1.2 Wall & Detail Limits
- SLA: 0.25 mm swords, 0.4 mm capes.
- MJF: 0.6 mm weapons, 0.8 mm capes.
1.3 Support Philosophy
- Tree supports for organic shapes, grid for tanks.
- Breakaway density 20 % for MJF, 40 % for SLA.
Workflow Deep-Dive
2.1 Software Stack
- Sculpt: ZBrush → Decimate to < 1 M facets → Magics repair.
- Slice: Lychee (resin), Cura (FDM) with tree supports V2.
2.2 Batch Nesting
- SLA: 200 × 32 mm figures / plate (380 × 284 mm).
- MJF: 400 × 28 mm figures / build (340 × 340 mm).
2.3 Color & Texture
- Prime: 2K automotive primer 1:1 primer:thinner.
- Base coat: Vallejo Model Air, 0.4 mm airbrush.
Support & Orientation
| Overhang Angle | Support Type | Removal Time | Damage Risk |
|---|---|---|---|
| < 30° | None | 0 min | None |
| 30–45° | Tree | 2 min | Low |
| > 45° | Grid | 5 min | Medium |
Post-Processing & Paint
4.1 Curing & Cleaning
- SLA: IPA 99 % 2 min + 405 nm 60 °C 15 min.
- MJF: Bead blast 80 mesh Ra 6 → 2 µm.
4.2 Paint-ready Finish
- Filler-primer spray, 2 coats 20 µm each.
- Masking film for camouflage patterns.
Case Studies
Case 1 , 1,000-piece D&D Army Client: Kickstarter creator Challenge: 28 mm orcs, 10-day deadline. Solution: MJF PA12, 80 µm layers, dye-sublimation green. Output: 1,085 figures, 96 % first-pass yield.
Case 2 , Museum Diorama Client: Historical society Challenge: 1:72 tanks, 200 pcs, 5-day turnaround. Solution: FDM PLA Pro, 0.1 mm layer, acrylic paint. Result: 0.3 mm dimensional accuracy, 0 % warpage.
Case 3 , Limited-Edition Resin Statue Client: Collectibles brand Challenge: 150 mm figure, translucent cloak, 500 pcs. Solution: SLA Tough-X, 25 µm layer, UV-gradient dye. Sales: Sold out in 48 h, premium margin 300 %.
Cost & Lead Benchmark
| Volume | SLA | MJF | Injection |
|---|---|---|---|
| 100 pcs | 14 days | 5 days | 28 days |
| 1,000 pcs | 20 days | 7 days | 35 days |
| 10,000 pcs | , | 10 days | 42 days |
Sustainability
• MJF powder refresh 30 %, CO₂ ↓ 35 %. • PLA Pro plant-based, industrial compost OK. • Water-based dyes, VOC-free workshop.
FAQ
Q: Can MJF miniatures be painted? A: Yes, bead blast + primer adhesion ≥ 5B (ASTM D3359).
Q: Minimum batch for SLA color? A: 50 pcs using Palette 3 Pro, purge cost $0.02/part.
Q: Largest single miniature? A: 600 mm dragon on BIG-120X, 3-day print.
