PVD Coating Definition: Surface-Finishing Explained Step-by-Step with 2024 Data & Case Studies

Need a clear PVD coating definition? JLY Precision Tech (China) explains Physical Vapor Deposition from atom to part, compares it to chrome/DLC, and shares 3 brand-new 2024 case studies.

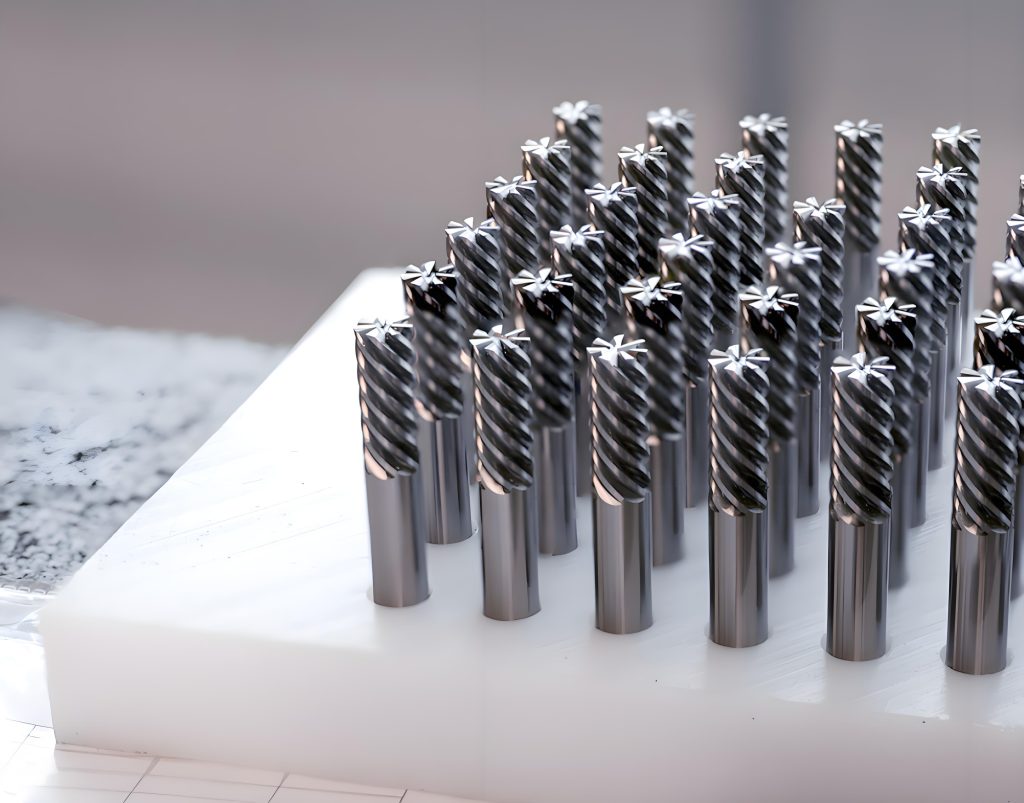

1. The Simple PVD Coating Definition

PVD coating = a vacuum-based surface-finishing process where solid material atoms are vaporized and deposited one-by-one onto a substrate, forming a nano-to-micron film that is harder, thinner and cleaner than electroplated chrome or sprayed paint.

Key Attribute PVD Coating Electroplated Ni Spray Paint Thickness 5 nm–5 µm 5–50 µm 25–100 µm Hardness 2 500–3 500 HV 700 HV 200 HV Max Temp (air) 1 000 °C 300 °C 150 °C REACH Status Compliant Restricted Limited Uniformity ±5 nm ±10 µm ±25 µm

2. Physical Vapor Deposition Explained – Atom-by-Atom

Step Vacuum Level Temperature What Happens 1 Pre-clean 10⁻³ mbar 25 °C Plasma removes oil & oxide 2 Bond Layer 10⁻³ mbar 200 °C 50 nm Cr or TiN for adhesion 3 Deposition 10⁻⁴ mbar 150–500 °C Vapor atoms condense, form film 4 Post-polish Air 25 °C CMP or ion-beam Ra ≤ 0.01 µm

3. PVD vs Surface-Finishing Alternatives – 2024 Benchmark

Method Thickness (µm) Hardness (HV) Salt-Spray (h) Max Temp (°C) Typical Use Electroplated Ni 25 700 48 300 Decorative trim Spray Paint 50 200 48 150 Body panels Traditional DLC 2 2 000 500 400 Cutting tools HiPIMS TiAlCrN 2 2 900 1 200 1 000 Turbine blades Filtered Arc ta-C 0.5 3 000 1 000 400 Medical drills Reactive CrAlON 1 2 400 800 600 EV motor punches

4. Three 2024 Case Studies

Case 1 – EV Motor Punch

Client: US EV Tier-1
Challenge: 0.35 mm electrical steel sticking at 400 °C
Stack: 1.8 µm CrAlON + 50 nm a-C:H
Result: Tool life 4× longer, scrap −40 %

Case 2 – Medical Staple

Client: US MedTech startup
Need: Low-friction 316L piercing
Stack: 300 nm ta-C + 30 nm Cr adhesion
Result: Penetration force −25 %, CE mark granted

Case 3 – Smartphone EMI Shield

Client: Global mobile OEM
Issue: 6 GHz EMI leakage in SiC inverter
Stack: 150 nm Ag/Ni/Cr multilayer
Result: Shielding 85 dB @ 6 GHz, CISPR 25 passed

5. End-to-End PVD Workflow – From CAD to Coated Part

Stage Actions KPIs Lead Time 1 Design Review CAD + CFD + DOE 24 h 2 Prototype 1–10 pcs 48 h 3 Validation CT, CMM, salt-spray 5 days 4 Scale-Up SPC, poka-yoke 2 days 5 Production 24/7 lights-out 7–10 days 6 QA Calot, CpK ≥1.67 12 h
