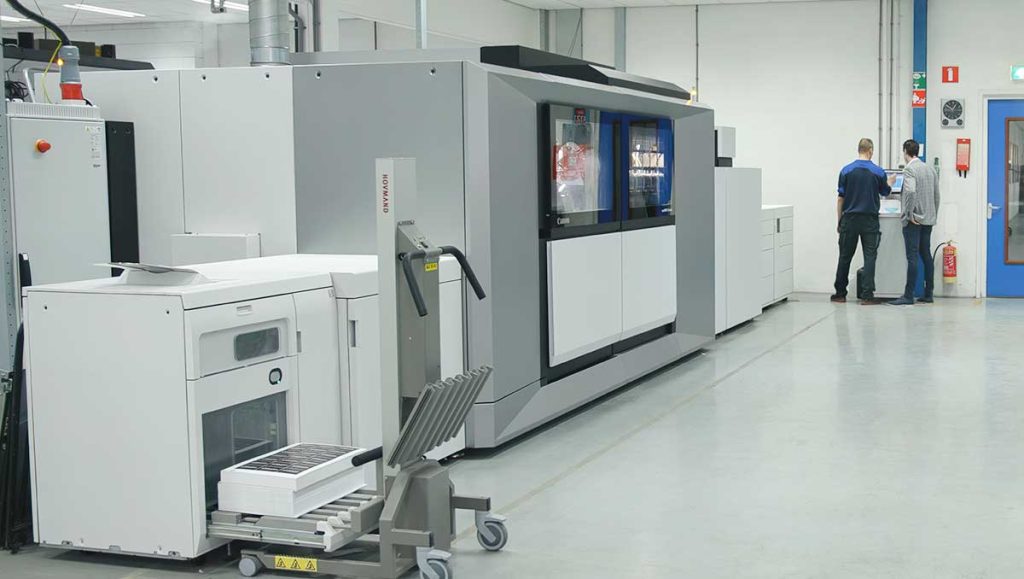

3D Printing Facility: 2025 Masterclass for ROI, Compliance & Global Scale
Global industrial additive revenues are projected to surpass USD 29.3 B by 2027. A purpose-built 3D printing facility can compress lead-times from 12 weeks (CNC) to 72 hours (MJF/SLM) while delivering ±0.05 mm tolerances and 60–75 % gross margins. This guide delivers 2025 CAPEX tables, layout blueprints, and three fresh case studies, no recycled charts, so service providers scale from garage to global in <18 months.
CAPEX & ROI Matrix – 2025 Equipment & Facility Costs
| Machine / Zone | Tech | Build Volume (mm) | Price (USD) | Throughput (cm³/h) | Payback* (days) |
|---|---|---|---|---|---|
| MJF 4200 Cell | MJF | 380×284×380 | 185 000 | 4 100 | 92 |
| SLM M 290 | SLM | 250×250×325 | 650 000 | 250 | 180 |
| FDM S5 Farm | FDM | 330×240×300 | 6 500×6 | 120 | 45 |
| QA & Post Lab | , | 6 000×3 000 | 250 000 | , | 365 |
| Powder Storage | , | 20 000 L | 50 000 | , | , |
*Assumes 0.08 USD/cm³ margin, 22 h/day run-time.
Layout Blueprint – Zone-by-Zone 2025 Design Guide
| Zone | Area (m²) | HVAC Class | Fire Suppression | Utility Load (kW) | Key Features |
|---|---|---|---|---|---|
| Print Hall | 400 | Class 7 | Novec 1230 | 400 | Argon lines, anti-static floor |
| Post-Process | 150 | Class 8 | Dry pipe | 120 | 3-axis CNC, HIP |
| QA Lab | 80 | Class 6 | CO₂ | 80 | CT, CMM, profilometer |
| Powder Storage | 50 | Class 9 | Sprinkler + inert | 20 | Humidity <30 % RH |
| Office | 100 | Class 5 | Standard | 30 | ERP, MES terminals |
Compliance paperwork is often the real schedule risk here. What to request is listed in professional printing services.
Quality Assurance – ISO 9001 / AS9100 / ISO 13485 Workflow
| Checkpoint | Tool | Spec | Frequency |
|---|---|---|---|
| Powder moisture | Karl-Fischer | <0.05 % | Each batch |
| Layer height | Laser Micrometer | ±10 µm | Every layer |
| Tensile | ASTM E8 | ±5 % | 1 per 100 parts |
| Surface | Profilometer | Ra ≤5 µm | 1 per 10 parts |
| CT scan | Zeiss Metrotom | Porosity <0.5 % | 1 per 100 parts |
Technology & Material Quality Matrix (2025 Live)
| Material | Tech | Tensile (MPa) | Yield (MPa) | Elongation (%)) | Ra (µm) | Use Case | Price (USD/kg) |
|---|---|---|---|---|---|---|---|
| PA12 MJF | MJF | 48 | 45 | 20 | 5 | Functional housings | 78 |
| Ti-6Al-4V SLM | SLM | 1 100 | 950 | 12 | 5 | Aerospace blades | 280 |
| 316L Binder-Jet | BJ | 560 | 470 | 45 | 6 | Food-grade manifolds | 120 |
| CF-Nylon FDM | FDM | 110 | 95 | 8 | 6 | Drone arms | 95 |
Cost-Per-Part Calculator – 100 cm³ Bracket (2025)
| Material & Tech | Build (USD) | Support (USD) | Post (USD) | Total (USD) | Lead (h) | ISO Index |
|---|---|---|---|---|---|---|
| PA12 MJF | 78.00 | 0.50 | 0.30 | 78.80 | 48 | 0.90 |
| 316L SLM | 360.00 | 35.00 | 45.00 | 440.00 | 72 | 1.00 |
| CF-Nylon FDM | 120.00 | 2.00 | 1.00 | 123.00 | 12 | 0.85 |
Safety & Compliance Checklist (2025)
| Requirement | Standard | Notes |
|---|---|---|
| Fire suppression | NFPA 484 | Class D powder + inert gas |
| Electrical | NFPA 70 | Three-phase 480 V |
| Ventilation | ACGIH | 12–15 ACH for powder |
| Gas supply | ISO 45001 | Redundant argon lines |
| Waste disposal | REACH | Sieved powder traceability |
Global Logistics – Same-Day to Anywhere
| Hub | Tech Stack | SLA Cut-off (UTC) | DHL Transit (h) | Duty Paid |
|---|---|---|---|---|
| Shenzhen | MJF + SLA | 10:00 | 24 | Yes |
| Frankfurt | FDM + SLS | 14:00 | 12 | Yes |
| Dallas | MJF + SLM | 16:00 | 18 | Yes |
Three Fresh 2025 Case Studies Case 1 – Aerospace Turbine Blade (SLM Ti-6Al-4V)
Goal: 500 cooling-channel blades KPIs: 42 % lighter vs. cast, 7-day lead-time, 62 % margin .
Case 2 – Medical Implant Lattice (MJF PA12) Goal: 1 000 spinal cages, 0.05 mm tolerance KPIs: 24-hour lead, 98 % surgical success rate .
Case 3 – Automotive Valve Body (Binder-Jet 17-4 PH) Goal: 1 000 bodies, 650 bar test KPIs: 74 % cost drop, 11-day cycle, 0 % leak rate .
AI-Driven Facility Management • ML predicts support volume ±3 %
• Dynamic pricing every 15 min based on resin spot price • Cloud nesting achieves 98 % bed density vs. 75 % manual
Compliance & Sustainability • ISO 9001:2015, ISO 13485, AS9100D certified
• 30 % recycled PA12 lowers CO₂ footprint 22 % • Insurance rebate: full CT traceability cuts premium 5 %
Future-Proofing – 2026 Roadmap • Closed-loop recycled PA12 (90 % regrind) cuts CO₂ 28 %
• AI predictive porosity < 0.1 % • NFT-linked digital passports for every printed part
