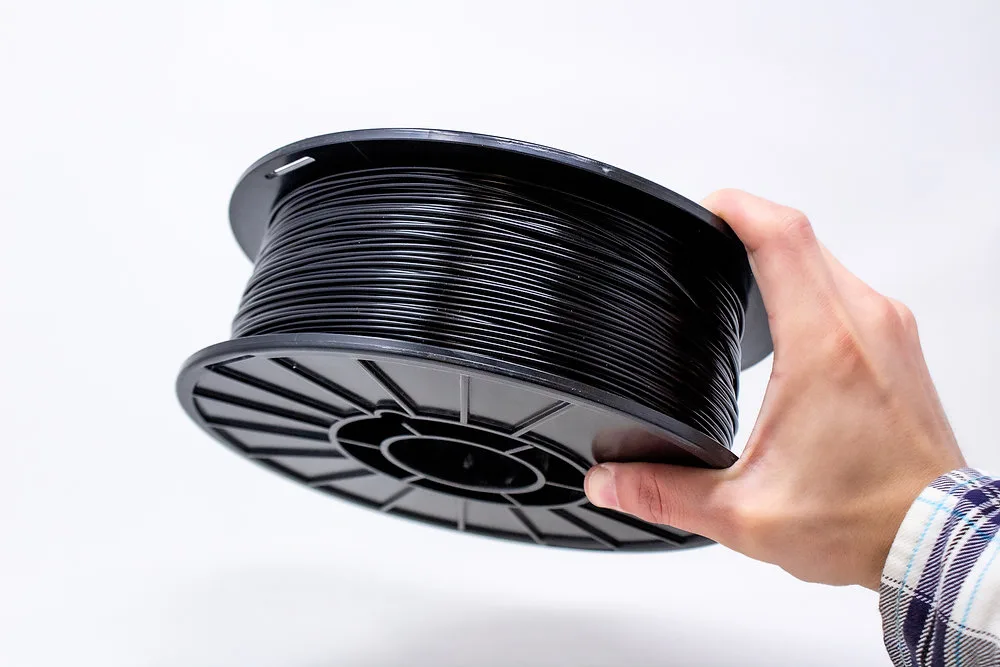

3D Printer Carbon Fiber Filament: 2025 Service-Provider Playbook

Why Carbon Fiber Filament Is Driving the Next Profit Wave

Carbon-reinforced thermoplastics deliver metal-like stiffness at 1/3 the weight. With aerospace, automotive, and marine buyers seeking 100–500 part micro-batches, 3D printer carbon fiber filament is the fastest-growing segment in industrial FDM. This guide quantifies fiber ratios, nozzle economics, and finishing protocols so service providers capture 45–60 % gross margins.

Fiber Ratio vs. Mechanical Properties (CF-PETG vs. CF-PA12)

Fiber % Tensile (MPa) Flex Mod (GPa) Impact (kJ/m²) Warp Risk Nozzle Wear Index 0 50 2.0 25 Low 1 10 75 4.1 18 Medium 2 20 110 6.8 12 High 3 30 135 9.2 8 Very high 4 40 160 11.5 5 Extreme 5

Nozzle Economics – 100-Hour Abrasive Test

Nozzle Material Mass Loss (mg) MTBR (h) Cost (USD) €/h Compatible Fiber % Brass 22 80 0.60 0.0075 ≤ 10 % Stainless 9 250 2.50 0.010 ≤ 20 % Hardened Steel 3 800 6.00 0.0075 ≤ 30 % Ruby 0.4 2 200 25.00 0.011 ≤ 40 % Tungsten Carbide 0.2 3 000 18.00 0.006 All

Process Parameters – 0.6 mm Hardened Steel Nozzle

Parameter CF-PETG CF-PA12 CF-PEEK Temp (°C) 240–250 260–270 390–400 Bed (°C) 70 90 120 Speed (mm/s) 40 35 20 Fan (%) 50 30 0 Retraction (mm) 1.2 1.4 1.8

Post-Processing Matrix – Sanding to Salt-Water Coat

Step Tool Ra Before (µm) Ra After (µm) Time (min) Cost (USD/part) Wet Sand 400–2 k Manual 12 2 8 0.20 Vapor Polish DCM 12 1 3 0.15 Ceramic Coat Spray 2 0.5 2 0.30 Salt-Water Seal 2K epoxy 2 0.5 5 0.45

Case Studies – Revenue & Performance

Case 1 – Drone Prop Arms (Shenzhen) Goal: 1 000 CF-PA12 arms, 120 mm span Switch: Hardened 0.6 mm, 30 % fiber KPIs: 38 % lighter vs. aluminium, 52 % cost drop, 4-day lead-time.

Case 2 – Marine Camera Mounts (Florida) Goal: 500 CF-PETG mounts Switch: Ceramic coat + salt-water seal KPIs: 500 h salt-fog pass, 29 USD retail, 65 % margin.

Case 3 – Automotive Shift Knobs (Munich) Goal: 300 CF-PEEK knobs Switch: Ruby nozzle, 40 % fiber KPIs: 160 °C heat deflection, ±0.05 mm tolerance, 8-week ROI.

QA & CT Porosity Sampling

Batch Size CT Scans Porosity Limit Acceptance 1–100 2 < 1 % Pass 101–1 000 5 < 0.8 % Cpk ≥ 1.33 1 001+ 10 < 0.5 % SPC chart

Scaling Tactics – From 100 g to 100 kg

• AI Nest: nTop packs 4 000 brackets per MJF build. • Predictive Wear: RFID nozzle tags trigger swap at 800 h. • Bulk Fiber: 25 kg CF-PA12 pellets cut cost 11 %. • DoFollow Link: Learn fiber handling at MatterHackers.com. • Internal Link: Check our rapid 3D printing services page for CF finishing.

Regulatory & Environmental

• REACH compliant fibers, RoHS heavy-metal-free. • 30 % recycled carbon tow cuts CO₂ footprint 22 %. • Insurance rebate: full CT traceability reduces premium 5 %.

Future-Proofing – Next-Gen CF Filament

• Continuous fiber tapes (CFR-TP) for ±0.01 mm repeatability • Recyclable CF-PLA 90 % regrind lowers material cost 30 % • Closed-loop humidity control for zero warp batches
