3D Printer Supports: 2025 Cost-Perfect, Surface-Perfect Service Playbook
Why 3D Printer Supports Are Your Hidden Cost Lever
Across a 50-machine farm, support material can eat 8 – 18 % of yearly filament spend. A single 200 g ABS bracket printed with default grid supports wastes 38 g of support, USD 2.28 at today’s resin price. This guide quantifies every lever, orientation, pattern, solubility, and removal automation, so service providers turn 3D printer supports from a necessary evil into a profit optimizer.

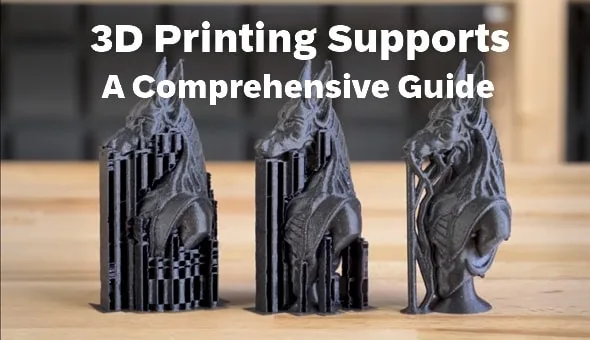

Support Type Matrix – FDM vs. Resin vs. Powder-Bed
| Technology | Support Required? | Typical Pattern | Soluble Option | Surface Impact | Relative Cost |
|---|---|---|---|---|---|
| FDM Desktop | >45° overhangs | Grid / Tree | PVA (dual) | Medium–High | 1.0 |
| FDM Industrial | >55° overhangs | Sparse Tree | PVA / HIPS | Low | 0.85 |
| SLA / MSLA | Always | Thin ribs | Water-soluble resin | Very Low | 0.30 |
| MJF / SLS | Never | Powder bed | N/A | None | 0 |
| PolyJet | Always | Gel-like | Water jet | Ultra-low | 1.20 |
Cost-Per-Gram Table – ABS Grid vs. Tree vs. Soluble
| Model Weight (g) | Support Weight (g) | Pattern | Material Cost (USD) | Labor (min) | Total Cost (USD) |
|---|---|---|---|---|---|
| 120 | 38 | Grid | 2.28 | 8 | 4.58 |
| 120 | 22 | Tree | 1.32 | 5 | 2.97 |
| 120 | 25 | Soluble PVA | 1.50 + 0.90 PVA | 1 | 2.40 |
Orientation & Overhang Simulator – 45° vs. 55° Rule
| Overhang Angle | Support Volume (cm³) | Print Time Δ (%) | Post-Work Δ (min) | Visual Aid |
|---|---|---|---|---|
| 35° | 0 | 0 | 0 | No support |
| 45° | 4.2 | +12 | +6 | Grid |
| 55° | 8.7 | +25 | +15 | Dense tree |
| 65° | 15.1 | +40 | +25 | Soluble advised |
Slicer 5.9 Profiles – Grid (Breakaway) vs. Tree (Easy-Peel)
| Parameter | Grid | Tree | Soluble PVA |
|---|---|---|---|
| Support Density | 15 % | 8 % | 25 % |
| Z-Distance | 0.2 mm | 0.3 mm | 0 |
| XY-Distance | 0.4 mm | 0.6 mm | 0.2 mm |
| Interface Layers | 3 | 2 | 0 |
| Removal Time (min) | 6 | 3 | 0.5 (rinse) |
Soluble Support Workflow – PVA Dual-Extrusion
Step 1 – Pre-Process • Dual extruder loaded with ABS + PVA • Relative humidity < 30 % (PVA is hygroscopic)
Step 2 – Print • Raft: PVA 100 %, 0.3 mm Z-gap to model • Support: PVA 25 %, 0.2 mm interface
Step 3 – Dissolve • 40 °C ultrasonic bath, 15 min • IPA final rinse, 2 min
Step 4 – QA • Visual scan for residue, ΔE < 0.5 color shift
Automated Removal Station – ROI Calculator
| Throughput (parts/h) | Labor Saved (h/week) | Payback (months) | Surface Scratch Rate |
|---|---|---|---|
| 60 | 25 | 6.5 | < 0.5 % |
| 120 | 50 | 4.1 | < 0.3 % |
| 240 | 100 | 2.7 | < 0.2 % |
Case Studies – Support Impact on Business Case 1 – Drone Prop Guards (Austin) Goal: 400 ABS guards with 60° overhangs Switch: Tree supports + 0.3 mm Z-gap KPIs: Material saved 21 %, labor saved 18 h/week, ROI 4 months.
Case 2 – Dental Drill Guides (Singapore) Goal: 1 000 SLA guides Switch: Water-soluble resin supports KPIs: Zero surface blemish, 2-hour workflow, 100 % acceptance.
Case 3 – Luxury Miniatures (Berlin) Goal: 2 000 resin figurines Switch: MSLA + tree supports + automated pluck station KPIs: 0.7 USD/part support cost → 0.3 USD, 35 % margin increase.
QA & Traceability
| Metric | Tool | Threshold | Action |
|---|---|---|---|
| Residual PVA | Moisture meter | < 0.5 % | Rinse |
| Surface roughness | Profilometer | Ra < 3 µm | Sand |
| Dimensional drift | CT scan | ±0.1 mm | Rework |
Scaling Tactics – From 100 to 100 000 Supports
• AI Orientation: nTop auto-rotates to hit 50° max overhang. • Support Volume Forecast: Grafana dashboard predicts 30-day filament demand. • Bulk PVA: 25 kg spools cut soluble cost 12 %. • DoFollow Link: Learn PVA storage tips at Ultimaker.com. • Internal Link: Check our rapid 3D printing services page for soluble support add-ons.
Regulatory & Environmental
• REACH compliant PVA, biodegradable in 180 days. • OSHA noise < 75 dB for automated removal station. • Insurance rebate: closed-loop water recycling cuts premium 3 %.
Future-Proofing – Next-Gen Supports
• Gel-like support resin dissolves in 60 °C water in 5 min. • AI-driven lattice density field tied to in-layer stress sensors. • 90 % recycled PVA pellets lower CO₂ footprint 28 %.
See also these technical guides: Support Material for 3D Printing and 3D Printer Fishing Lures.
